T106B1 Series

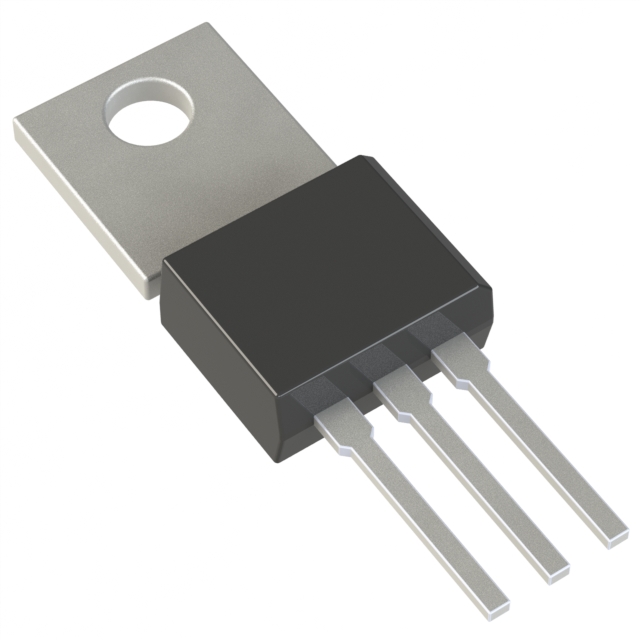

Sen Scr 200V 4A 200µA TO202

Catalog

Sen Scr 200V 4A 200µA TO202

Part	Voltage - Off State	Package / Case	Current - Off State (Max) [Max] [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Current - On State (It (RMS)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Mounting Type	Current - On State (It (AV)) (Max)	Current - Gate Trigger (Igt) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Supplier Device Package	Voltage - Gate Trigger (Vgt) (Max)	SCR Type	Voltage - On State (Vtm) (Max)
LITTELFUSE T106B11	200 V	TO-202 Long Tab	2 µA	-40 C	110 °C	4 A	16 A 20 A	Through Hole	2.5 A	200 µA	5 mA	TO-202	800 mV	Sensitive Gate	2.2 V
LITTELFUSE T106B1	200 V	TO-202 Long Tab	2 µA	-40 C	110 °C	4 A	16 A 20 A	Through Hole	2.5 A	200 µA	5 mA	TO-202	800 mV	Sensitive Gate	2.2 V

Catalog

Sen Scr 200V 4A 200µA TO202

Description

Excellent unidirectional switches for phase control applications such as heating and motor speed controls. Sensitive gate SCRs are easily triggered with microAmps of current as furnished by sense coils, proximity switches, and microprocessors.
