R12445 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMA / 2 HOLE FLANGE JACK RECEPTA
| Part | Dielectric Material | Center Contact Plating | Body Finish | Body Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Mounting Feature | Frequency - Max [Max] | Shield Termination | Fastening Type | Connector Type | Contact Termination | Impedance | Mounting Type | Center Contact Material | Number of Ports | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

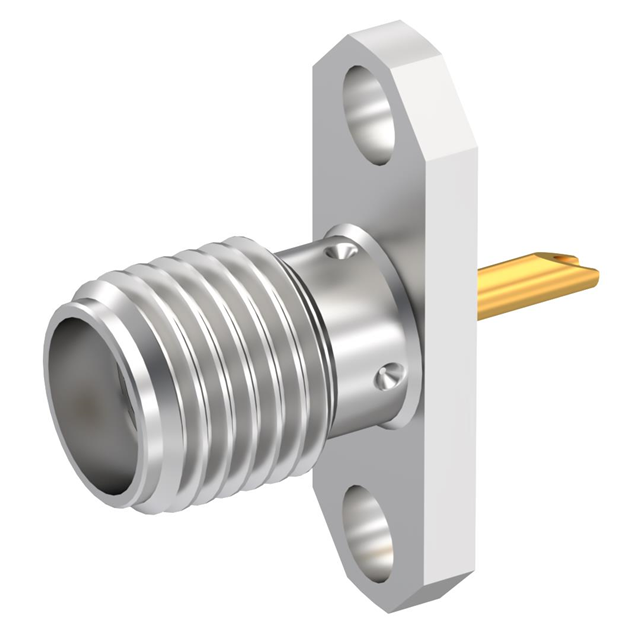

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | White Bronze | Brass | 500 V | -65 ░C | 165 °C | Silver | Flange | 18 GHz | Solder | Threaded | Female Socket Jack | Solder Cup | 50 Ohms | Panel Mount | Beryllium Copper | 1 | SMA |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | White Bronze | Brass | 500 V | -65 ░C | 165 °C | Silver | Flange | 18 GHz | Solder | Threaded | Female Socket Jack | Solder Cup | 50 Ohms | Panel Mount | Beryllium Copper | 1 | SMA |

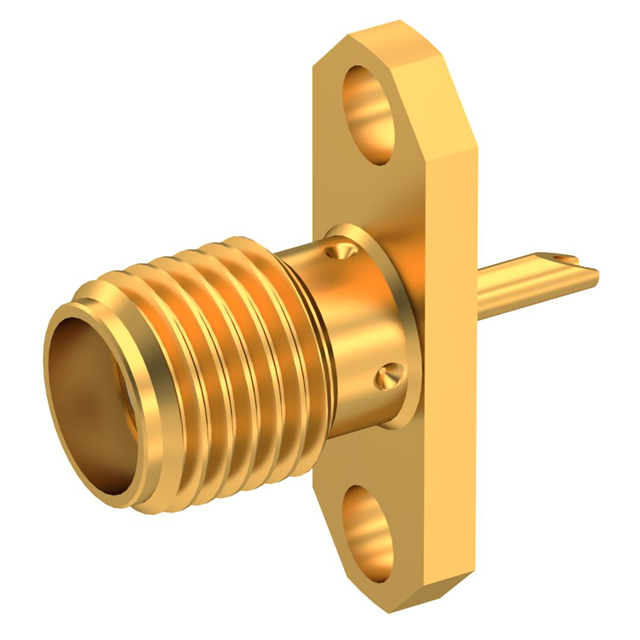

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Gold | Brass | 500 V | -65 ░C | 165 °C | Gold | Flange | 18 GHz | Solder | Threaded | Female Socket Jack | Solder Cup | 50 Ohms | Panel Mount | Beryllium Copper | 1 | SMA |
