3142-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

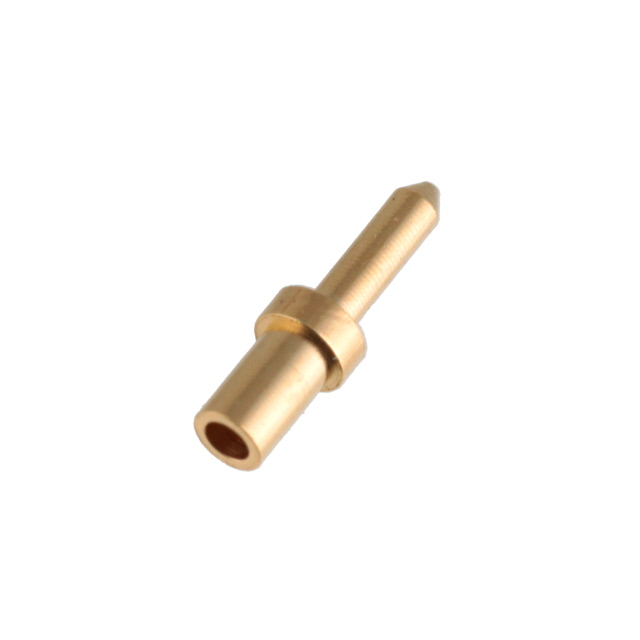

CONN PC PIN CIRC .040DIA GOLD
| Part | Terminal Style | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Terminal Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Length - Below Flange [x] | Length - Below Flange [x] | Termination | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Material | Insulation | Length - Above Flange [x] | Length - Above Flange [x] | Length - Overall [x] | Length - Overall [x] | Board Thickness | Board Thickness | Contact Finish | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Length - Above Flange |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Single End | Through Hole | 0.25 Ám | 10 Áin | PC Pin | 0.04 in | 1.02 mm | 0.15 " | 3.81 mm | Swage | 0.078 " | 1.98 mm | 0.062 in | 1.57 mm | Brass Alloy | Non-Insulated | 0.094 in | 2.39 mm | 6.96 mm | 0.274 in | 1.57 mm | 0.062 " | Gold | |||
 Mill-Max Manufacturing Corp. | Single End | Through Hole | 5.08 Ám | 200 Áin | PC Pin | 0.04 in | 1.02 mm | 0.15 " | 3.81 mm | Swage | 0.078 " | 1.98 mm | 0.062 in | 1.57 mm | Brass Alloy | Non-Insulated | 0.094 in | 2.39 mm | 6.96 mm | 0.274 in | 1.57 mm | 0.062 " | Tin-Lead | |||
 Mill-Max Manufacturing Corp. | Single End | Through Hole | 5.08 Ám | 200 Áin | PC Pin | 0.04 in | 1.02 mm | 0.094 " | 2.39 mm | Swage | 0.078 " | 1.98 mm | 0.062 in | 1.57 mm | Brass Alloy | Non-Insulated | 0.15 in | 6.27 mm | 0.247 in | Tin | 1.47 mm | 0.058 in | 3.81 mm |
