829154 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 8POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Fastening Type	Contact Shape	Number of Positions	Number of Positions Loaded	Style	Contact Length - Mating	Contact Length - Mating	Termination	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Contact Type	Shrouding	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Mounting Type	Connector Type	Contact Finish - Post

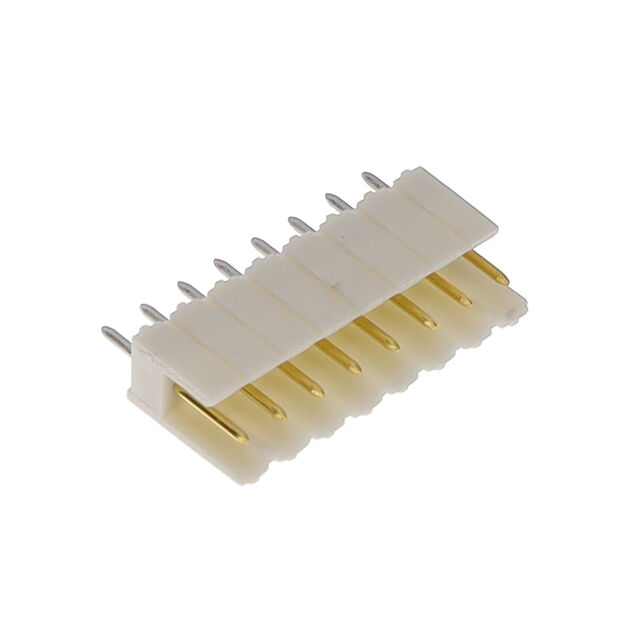

TE Connectivity AMP Connectors 829154-8	78.7 µin	2 µm	Friction Lock	Circular	8	All	Board to Cable/Wire	0.205 in	5.21 mm	Solder	Polybutylene Terephthalate (PBT) Glass Filled	0.114 in	2.9 mm	UL94 V-0	8.8 mm	0.346 in	Gold	Copper Zinc	0.1 "	2.54 mm	Male Pin	Shrouded - 2 Wall	1	0.076 µm	3 µin	Natural	Through Hole	Header	Tin

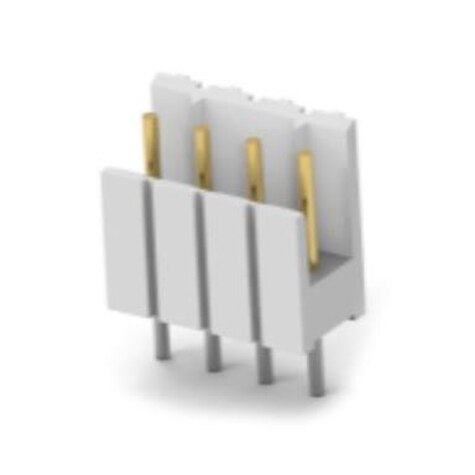

TE Connectivity AMP Connectors 829154-4	78.7 µin	2 µm	Friction Lock	Circular	4	All	Board to Cable/Wire	0.205 in	5.21 mm	Solder	Polybutylene Terephthalate (PBT) Glass Filled	0.114 in	2.9 mm	UL94 V-0	8.8 mm	0.346 in	Gold	Copper Zinc	0.1 "	2.54 mm	Male Pin	Shrouded - 2 Wall	1	0.076 µm	3 µin	Natural	Through Hole	Header	Tin
TE Connectivity AMP Connectors 829154-2	78.7 µin	2 µm	Friction Lock	Circular	2	All	Board to Cable/Wire	0.205 in	5.21 mm	Solder	Polybutylene Terephthalate (PBT) Glass Filled	0.114 in	2.9 mm	UL94 V-0	8.8 mm	0.346 in	Gold	Copper Zinc	0.1 "	2.54 mm	Male Pin	Shrouded - 2 Wall	1	0.076 µm	3 µin	Natural	Through Hole	Header	Tin
TE Connectivity AMP Connectors 829154-3	78.7 µin	2 µm	Friction Lock	Circular		All	Board to Cable/Wire	0.205 in	5.21 mm	Solder	Polybutylene Terephthalate (PBT) Glass Filled	0.114 in	2.9 mm	UL94 V-0	8.8 mm	0.346 in	Gold	Copper Zinc	0.1 "	2.54 mm	Male Pin	Shrouded - 2 Wall	1	0.076 µm	3 µin	Natural	Through Hole	Header	Tin
