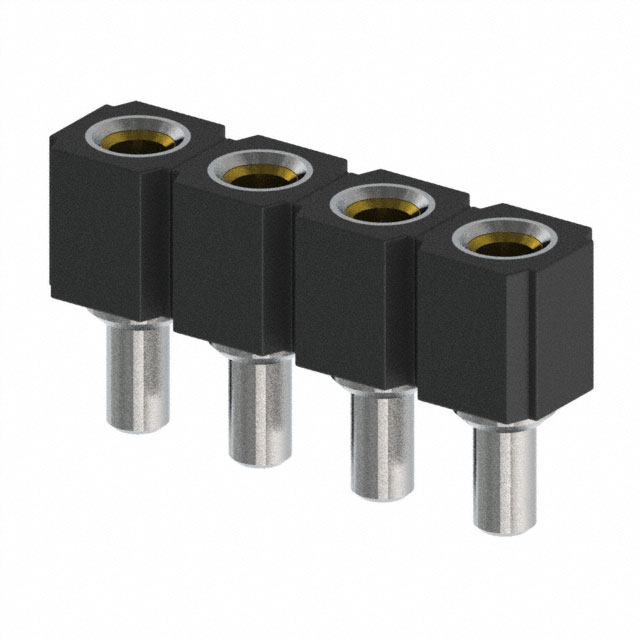

834-93 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 47POS 0.1 GOLD PCB

Part	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Contact Material	Fastening Type	Connector Type	Insulation Height [z]	Insulation Height [z]	Mounting Type	Contact Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Material Flammability Rating	Number of Rows	Contact Length - Post	Contact Length - Post	Termination	Number of Positions
Mill-Max Manufacturing Corp. 834-93-047-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Circular	Beryllium Copper	Push-Pull	Receptacle Pass Through	0.13 in	3.3 mm	Through Hole	Female Socket	Gold	0.76 Ám	30 Áin	All	Black	0.1 "	2.54 mm	47	-55 C	125 °C	Tin-Lead	UL94 V-0	1	2.03 mm	0.08 in	Solder
Mill-Max Manufacturing Corp. 834-93-024-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Circular	Beryllium Copper	Push-Pull	Receptacle Pass Through	0.13 in	3.3 mm	Through Hole	Female Socket	Gold	0.76 Ám	30 Áin	All	Black	0.1 "	2.54 mm		-55 C	125 °C	Tin-Lead	UL94 V-0	1	2.03 mm	0.08 in	Solder	24
Mill-Max Manufacturing Corp. 834-93-020-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Circular	Beryllium Copper	Push-Pull	Receptacle Pass Through	0.13 in	3.3 mm	Through Hole	Female Socket	Gold	0.76 Ám	30 Áin	All	Black	0.1 "	2.54 mm		-55 C	125 °C	Tin-Lead	UL94 V-0	1	2.03 mm	0.08 in	Solder	20
Mill-Max Manufacturing Corp. 834-93-057-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Circular	Beryllium Copper	Push-Pull	Receptacle Pass Through	0.13 in	3.3 mm	Through Hole	Female Socket	Gold	0.76 Ám	30 Áin	All	Black	0.1 "	2.54 mm		-55 C	125 °C	Tin-Lead	UL94 V-0	1	2.03 mm	0.08 in	Solder	57
Mill-Max Manufacturing Corp. 834-93-048-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Circular	Beryllium Copper	Push-Pull	Receptacle Pass Through	0.13 in	3.3 mm	Through Hole	Female Socket	Gold	0.76 Ám	30 Áin	All	Black	0.1 "	2.54 mm		-55 C	125 °C	Tin-Lead	UL94 V-0	1	2.03 mm	0.08 in	Solder	48
Mill-Max Manufacturing Corp. 834-93-008-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Circular	Beryllium Copper	Push-Pull	Receptacle Pass Through	0.13 in	3.3 mm	Through Hole	Female Socket	Gold	0.76 Ám	30 Áin	All	Black	0.1 "	2.54 mm		-55 C	125 °C	Tin-Lead	UL94 V-0	1	2.03 mm	0.08 in	Solder	8
Mill-Max Manufacturing Corp. 834-93-021-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Circular	Beryllium Copper	Push-Pull	Receptacle Pass Through	0.13 in	3.3 mm	Through Hole	Female Socket	Gold	0.76 Ám	30 Áin	All	Black	0.1 "	2.54 mm		-55 C	125 °C	Tin-Lead	UL94 V-0	1	2.03 mm	0.08 in	Solder	21
Mill-Max Manufacturing Corp. 834-93-058-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Circular	Beryllium Copper	Push-Pull	Receptacle Pass Through	0.13 in	3.3 mm	Through Hole	Female Socket	Gold	0.76 Ám	30 Áin	All	Black	0.1 "	2.54 mm		-55 C	125 °C	Tin-Lead	UL94 V-0	1	2.03 mm	0.08 in	Solder	58
Mill-Max Manufacturing Corp. 834-93-026-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Circular	Beryllium Copper	Push-Pull	Receptacle Pass Through	0.13 in	3.3 mm	Through Hole	Female Socket	Gold	0.76 Ám	30 Áin	All	Black	0.1 "	2.54 mm		-55 C	125 °C	Tin-Lead	UL94 V-0	1	2.03 mm	0.08 in	Solder	26
Mill-Max Manufacturing Corp. 834-93-004-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Circular	Beryllium Copper	Push-Pull	Receptacle Pass Through	0.13 in	3.3 mm	Through Hole	Female Socket	Gold	0.76 Ám	30 Áin	All	Black	0.1 "	2.54 mm		-55 C	125 °C	Tin-Lead	UL94 V-0	1	2.03 mm	0.08 in	Solder	4
