431000 Series

Catalog

CONN BARRIER STRP 19CIRC 0.438"

Part	Material Flammability Rating	Material - Insulation	Mounting Type	Operating Temperature	Terminal Screw Material	Terminal Screw Finish	Number of Circuits	Wire Gauge [Max]	Wire Gauge [Min]	Voltage Rating	Top Termination	Terminal Block Type	Bottom Termination	Number of Wire Entries	Pitch [x]	Pitch [x]	Barrier Type	Number of Rows	Current Rating (Amps)
Curtis Industries 431000-19-0	UL94 V-0	Polypropylene (PP)	Chassis Panel	105 C	Steel	Zinc	19	22 AWG	12 AWG	600 V	Screws	Barrier Block	Closed	19	0.438 in	11.12 mm	2 Wall (Dual)	1	20 A
Curtis Industries 431000-26-0	UL94 V-0	Polypropylene (PP)	Chassis Panel	105 C	Steel	Zinc	26	22 AWG	12 AWG	600 V	Screws	Barrier Block	Closed	26	0.438 in	11.12 mm	2 Wall (Dual)	1	20 A
Curtis Industries 431000-22-0	UL94 V-0	Polypropylene (PP)	Chassis Panel	105 C	Steel	Zinc	22	22 AWG	12 AWG	600 V	Screws	Barrier Block	Closed	22	0.438 in	11.12 mm	2 Wall (Dual)	1	20 A
Curtis Industries 431000-14-0	UL94 V-0	Polypropylene (PP)	Chassis Panel	105 C	Steel	Zinc	14	22 AWG	12 AWG	600 V	Screws	Barrier Block	Closed	14	0.438 in	11.12 mm	2 Wall (Dual)	1	20 A
Curtis Industries 431000-20-0	UL94 V-0	Polypropylene (PP)	Chassis Panel	105 C	Steel	Zinc	20	22 AWG	12 AWG	600 V	Screws	Barrier Block	Closed	20	0.438 in	11.12 mm	2 Wall (Dual)	1	20 A
Curtis Industries 431000-13-0	UL94 V-0	Polypropylene (PP)	Chassis Panel	105 C	Steel	Zinc	13	22 AWG	12 AWG	600 V	Screws	Barrier Block	Closed	13	0.438 in	11.12 mm	2 Wall (Dual)	1	20 A
Curtis Industries 431000-10-0	UL94 V-0	Polypropylene (PP)	Chassis Panel	105 C	Steel	Zinc	10	22 AWG	12 AWG	600 V	Screws	Barrier Block	Closed	10	0.438 in	11.12 mm	2 Wall (Dual)	1	20 A

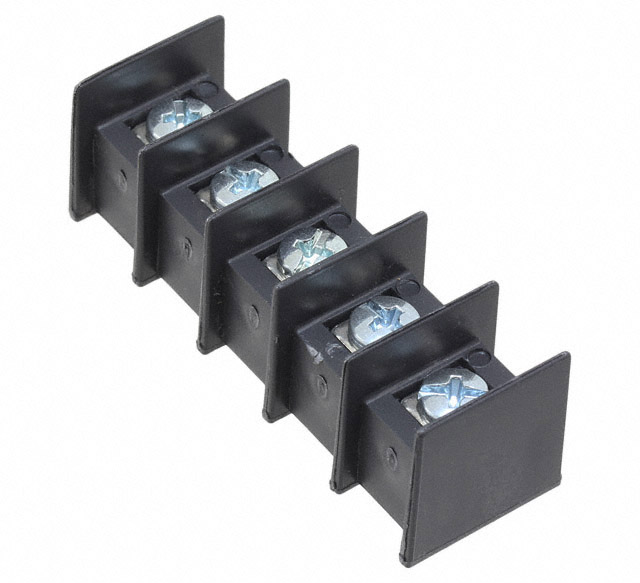

Curtis Industries 431000-05-0	UL94 V-0	Polypropylene (PP)	Chassis Panel	105 C	Steel	Zinc	5	22 AWG	12 AWG	600 V	Screws	Barrier Block	Closed	5	0.438 in	11.12 mm	2 Wall (Dual)	1	20 A
Curtis Industries 431000-25-0	UL94 V-0	Polypropylene (PP)	Chassis Panel	105 C	Steel	Zinc	25	22 AWG	12 AWG	600 V	Screws	Barrier Block	Closed	25	0.438 in	11.12 mm	2 Wall (Dual)	1	20 A
