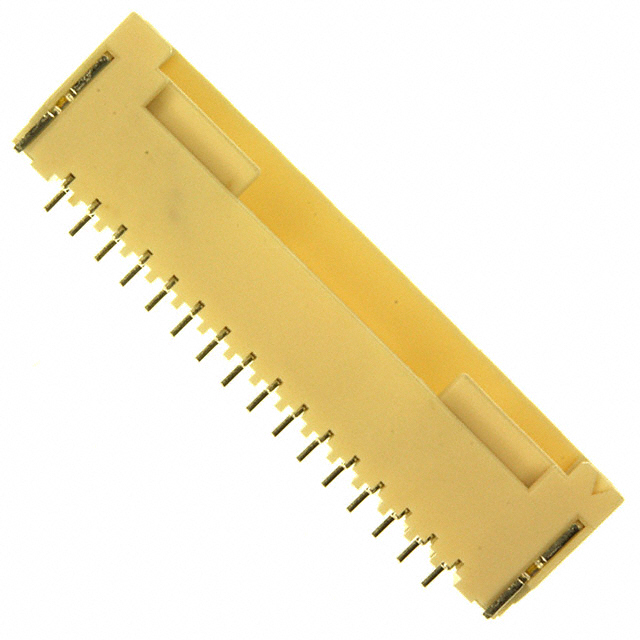

SM16B-ZE Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 16POS 1.5MM
| Part | Style | Contact Finish - Post | Connector Type | Voltage Rating | Material Flammability Rating | Number of Positions | Insulation Color | Current Rating (Amps) | Contact Type | Termination | Contact Material | Number of Rows | Shrouding | Contact Shape | Insulation Material | Mounting Type | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Insulation Height [z] | Insulation Height [z] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Board to Cable/Wire | Tin | Header | 100 V | UL94 V-0 | 16 | Natural | 2 A | Outer Shroud Contact | Solder | Copper Alloy | 1 | Shrouded - 4 Wall | Rectangular | Nylon Polyamide (PA) | Right Angle Surface Mount | Locking Ramp | 85 °C | -25 °C | All | 0.228 " | 5.8 mm | Solder Retention |
