1971775 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
PTL 2X3 CAP PANEL MT HIGH TEMP KEY B RED
| Part | Pitch [x] | Pitch [x] | Note | Row Spacing | Row Spacing | Insulation Material | Mounting Type | Contact Termination | Number of Positions | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Type | Fastening Type | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.236 in | 6 mm | Contacts Not Included | 8.1 mm | 0.319 in | Nylon Polyamide (PA) | Panel Mount Snap-In | Crimp | 6 | Receptacle | -55 °C | 150 °C | Red | Tab | Latch Lock | 2 | |

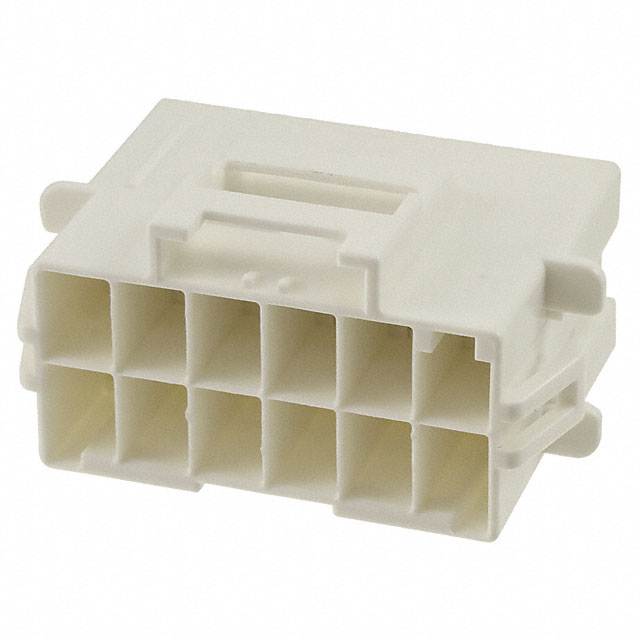

 TE Connectivity Raychem Cable Protection | 0.236 in | 6 mm | Contacts Not Included | 8.1 mm | 0.319 in | Polybutylene Terephthalate (PBT) | Panel Mount Snap-In | Crimp | 12 | Receptacle | -55 °C | 105 ░C | Natural | Tab | Latch Lock | 2 | |

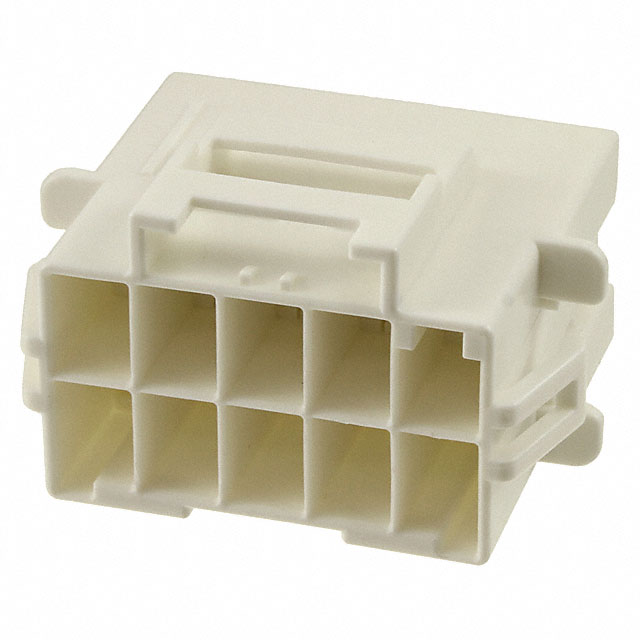

 TE Connectivity Raychem Cable Protection | 0.236 in | 6 mm | Contacts Not Included | 8.1 mm | 0.319 in | Polybutylene Terephthalate (PBT) | Panel Mount Snap-In | Crimp | 10 | Receptacle | -55 °C | 105 ░C | Natural | Tab | Latch Lock | 2 | |

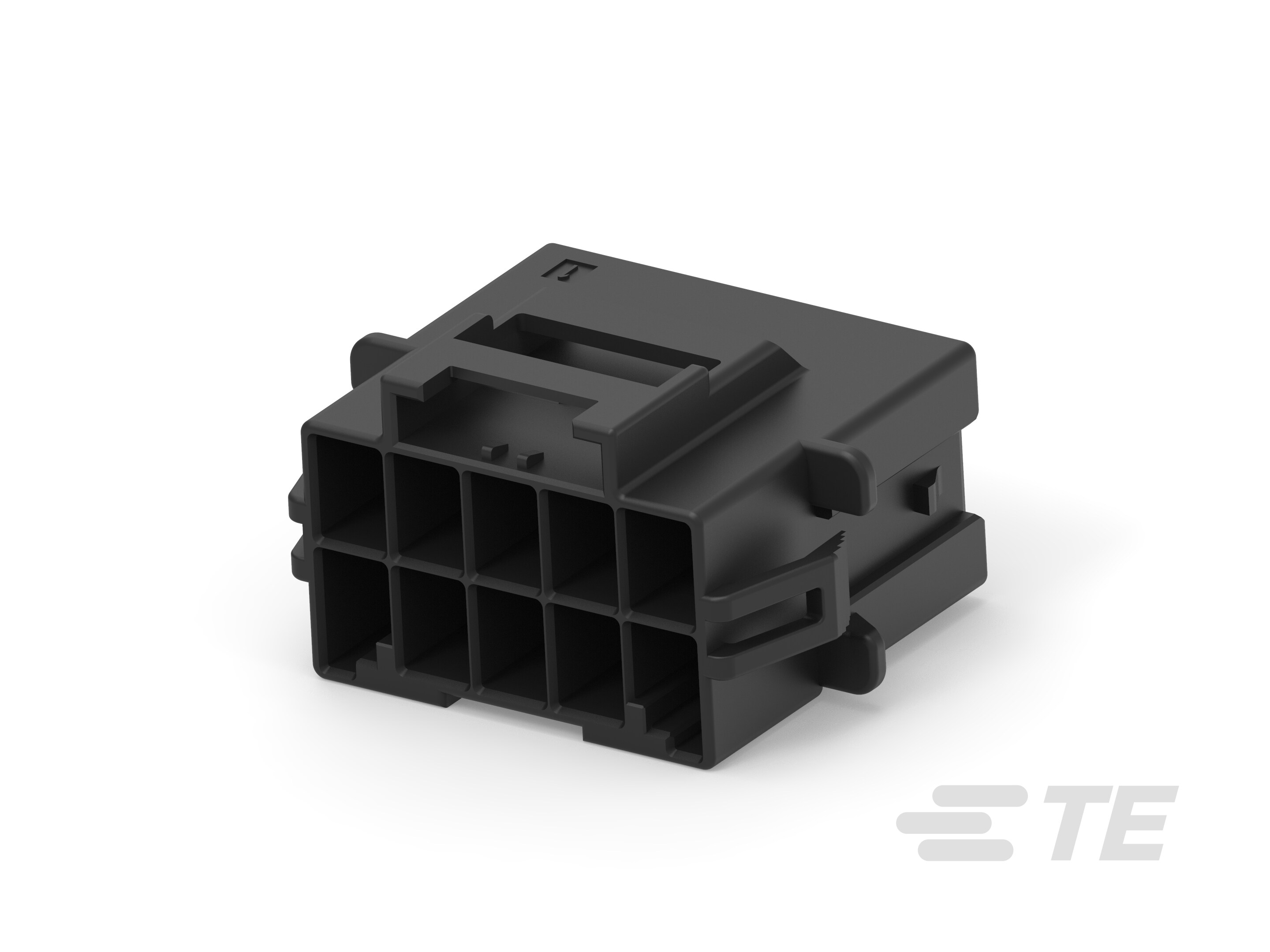

 TE Connectivity Raychem Cable Protection | 0.236 in | 6 mm | Contacts Not Included | 8.1 mm | 0.319 in | Nylon Polyamide (PA) | Panel Mount Snap-In | Crimp | 10 | Receptacle | -55 °C | 150 °C | Black | Tab | Latch Lock | 2 | |
TE Connectivity Raychem Cable Protection | 0.236 in | 6 mm | Contacts Not Included | 8.1 mm | 0.319 in | Nylon Polyamide (PA) | Panel Mount Snap-In | Crimp | 6 | Receptacle | -55 °C | 150 °C | Natural | Tab | Latch Lock | 2 | |

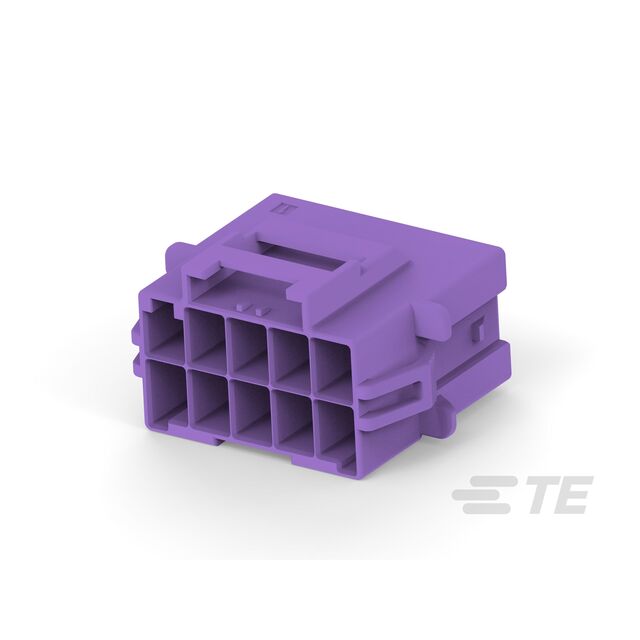

 TE Connectivity Raychem Cable Protection | 0.236 in | 6 mm | Contacts Not Included | 8.1 mm | 0.319 in | Polybutylene Terephthalate (PBT) Glass Filled | Crimp | 10 | Receptacle | -55 °C | 105 ░C | Purple | Tab | Latch Holder | 2 | Cap (Cover) | |
TE Connectivity Raychem Cable Protection | 0.236 in | 6 mm | Contacts Not Included | 8.1 mm | 0.319 in | Nylon Polyamide (PA) | Panel Mount Snap-In | Crimp | 6 | Receptacle | -55 °C | 150 °C | Black | Tab | Latch Lock | 2 | |
 TE Connectivity Raychem Cable Protection | 0.236 in | 6 mm | Contacts Not Included | 8.1 mm | 0.319 in | Polybutylene Terephthalate (PBT) | Panel Mount Snap-In | Crimp | 8 | Receptacle | -55 °C | 105 ░C | Natural | Tab | Latch Lock | 2 | |
TE Connectivity Raychem Cable Protection | 0.236 in | 6 mm | Contacts Not Included | 8.1 mm | 0.319 in | Polybutylene Terephthalate (PBT) Glass Filled | Panel Mount Snap-In | Crimp | 6 | Receptacle | -55 °C | 105 ░C | Yellow | Tab | Latch Lock | 2 | |
TE Connectivity Raychem Cable Protection | 0.236 in | 6 mm | Contacts Not Included | 8.1 mm | 0.319 in | Nylon Polyamide (PA) | Panel Mount Snap-In | Crimp | 10 | Receptacle | -55 °C | 150 °C | Natural | Tab | Latch Lock | 2 |
