DLP651NE Series

0.65-inch 1080p HSSI DLP® digital micromirror device (DMD)

Catalog

0.65-inch 1080p HSSI DLP® digital micromirror device (DMD)

Part	Type	Package / Case	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Mounting Type

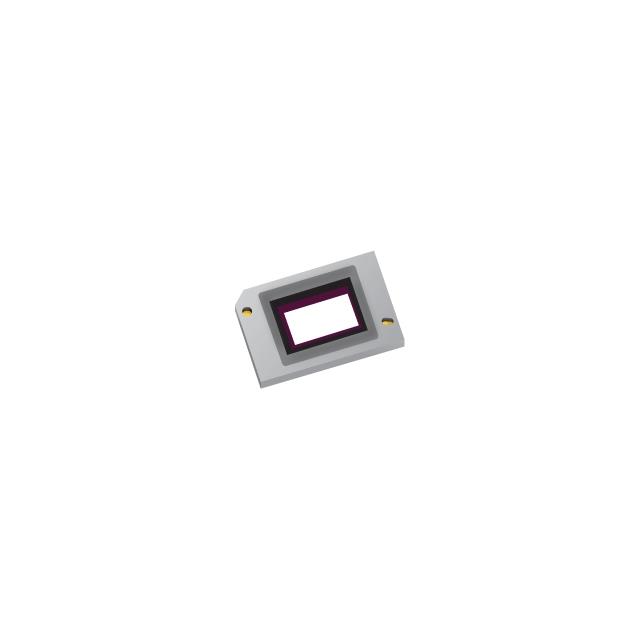

Texas Instruments DLP651NEA0FYP	Digital Micromirror Device (DMD)	149-BFCPGA	149-CPGA	32.2	22.3	Through Hole

Catalog

0.65-inch 1080p HSSI DLP® digital micromirror device (DMD)

Key Features

• The 0.65-inch diagonal micromirror array1080p (1920 × 1080) display resolution7.6µm micromirror pitch±12° micromirror tilt (relative to a flat surface)Corner illuminationHigh-speed serial interface (HSSI) input data busSupports 1080p (Full HD) at up to 240HzLaser-phosphor, LED, RGB laser, and lamp operation supported byDLPC7530display controller,DLPA100power management, and motor driver ICThe 0.65-inch diagonal micromirror array1080p (1920 × 1080) display resolution7.6µm micromirror pitch±12° micromirror tilt (relative to a flat surface)Corner illuminationHigh-speed serial interface (HSSI) input data busSupports 1080p (Full HD) at up to 240HzLaser-phosphor, LED, RGB laser, and lamp operation supported byDLPC7530display controller,DLPA100power management, and motor driver IC

Description

The DLP651NE digital micromirror device (DMD) is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables bright 1080p display systems. The DLP Products 0.65-inch 1080p chipset is composed of the DMD,DLPC7530display controller, andDLPA100Power and motor driver. The compact physical size of the chipset provides a complete system solution that enables small form factor 1080p displays. The DMD ecosystem includes established resources to help the user accelerate the design cycle, visit theDLP® Products third-party search toolsto find approved optical module manufacturers and third party providers. VisitGetting Started With TI DLP Display Technologyto learn more about how to start designing with the DMD. The DLP651NE digital micromirror device (DMD) is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables bright 1080p display systems. The DLP Products 0.65-inch 1080p chipset is composed of the DMD,DLPC7530display controller, andDLPA100Power and motor driver. The compact physical size of the chipset provides a complete system solution that enables small form factor 1080p displays. The DMD ecosystem includes established resources to help the user accelerate the design cycle, visit theDLP® Products third-party search toolsto find approved optical module manufacturers and third party providers. VisitGetting Started With TI DLP Display Technologyto learn more about how to start designing with the DMD.
