2204585 Series

Catalog

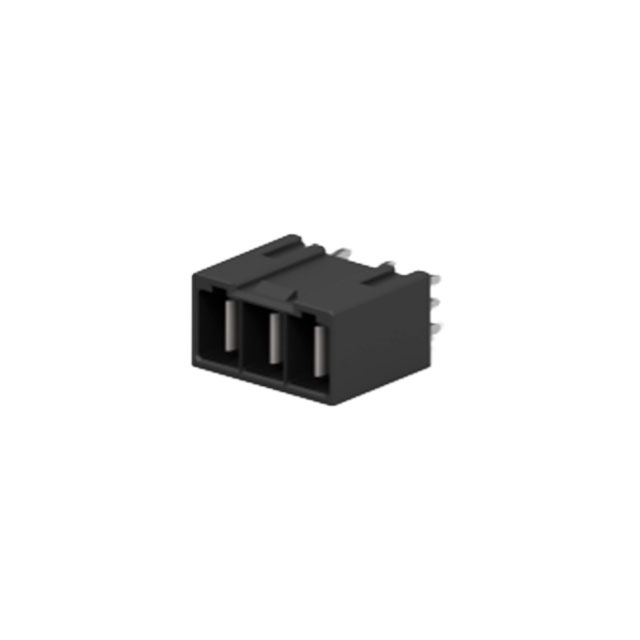

POWER CONNECTOR, 3 CONTACT(S), MALE, PRESS FIT TERMINAL, PLUG

Part	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions Loaded	Contact Layout, Typical	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish	Termination	Mounting Type	Number of Rows	Material Flammability Rating
TE Connectivity Raychem Cable Protection 2204585-3	3 Áin	0.076 Ám	Black	All	3 Power	-40 °C	105 ░C	Header Male Blades	Silver	Press-Fit	Through Hole	1	UL94 V-0
TE Connectivity Raychem Cable Protection 2204585-2	3 Áin	0.076 Ám	Black	All	3 Power	-40 °C	105 ░C	Header Male Blades	Silver	Solder	Through Hole	1	UL94 V-0
TE Connectivity Raychem Cable Protection 2204585-4	3 Áin	0.076 Ám	Black	All	3 Power	-40 °C	105 ░C	Header Male Blades	Silver	Solder	Through Hole	1	UL94 V-0
