H3BA-N Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
ANALOG TIMER, 11 PIN, H3BA-N SERIES, MULTIFUNCTION, 9 RANGES, 0.05 S, 300 H, SOLID STATE
| Part | Voltage - Supply | Function | Termination Style | Mounting Type | Relay Type | Contact Rating @ Voltage | Timing Initiate Method | Circuit | Delay Time [Max] | Delay Time [Min] | Timing Adjustment Method |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 110 VAC/DC | Programmable (Multi-Function) | Plug In 11 Pin (Octal) | Socketable | Mechanical Relay | 5 A 250 VAC | Input Voltage | DPDT (2 Form C) | 300 Hrs | 0.05 Sec | Hand Dial |

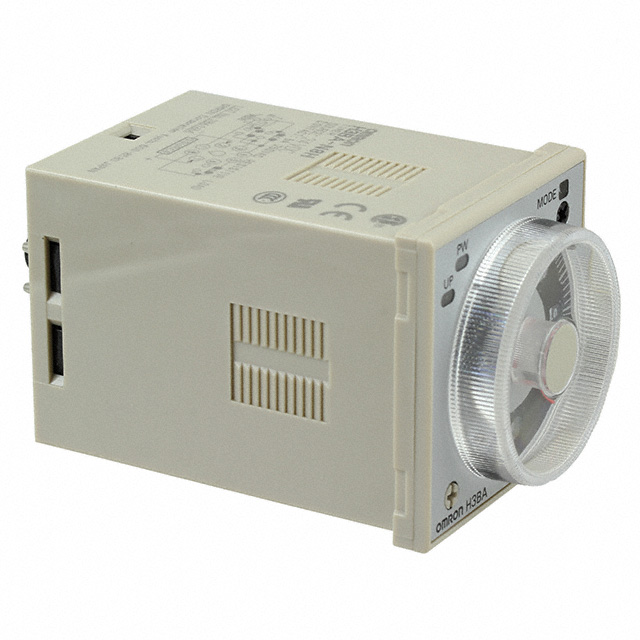

 Omron Electronics Inc-EMC Div | 24 VDC | Programmable (Multi-Function) | Plug In 8 Pin (Octal) | Socketable | Mechanical Relay | 5 A 250 VAC | Input Voltage | 300 Hrs | 0.05 Sec | Hand Dial | |

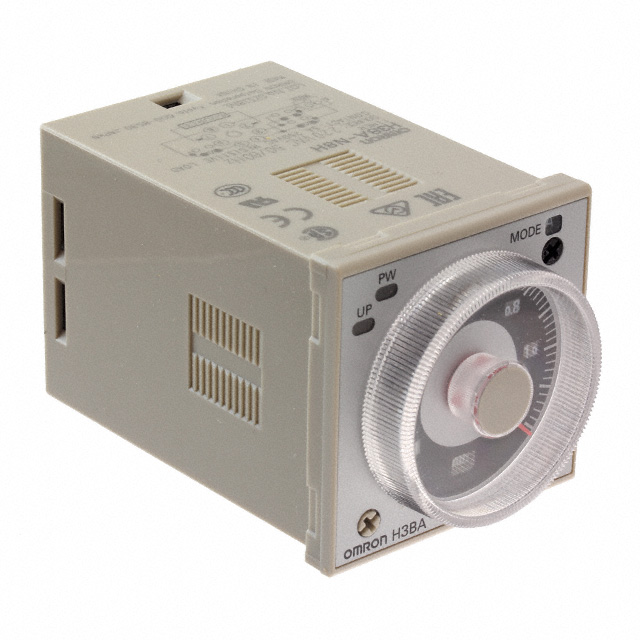

 Omron Electronics Inc-EMC Div | 220 VAC | Programmable (Multi-Function) | Plug In 8 Pin (Octal) | Socketable | Mechanical Relay | 5 A 250 VAC | Input Voltage | 300 Hrs | 0.05 Sec | Hand Dial |
