BM6248 Series

3-Phase Brushless Fan Motor Driver

Catalog

3-Phase Brushless Fan Motor Driver

Part	Applications	Mounting Type	Function	Package / Case	Package / Case [Max]	Package / Case [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Output	Motor Type - AC, DC	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Supplier Device Package	Interface	Output Configuration

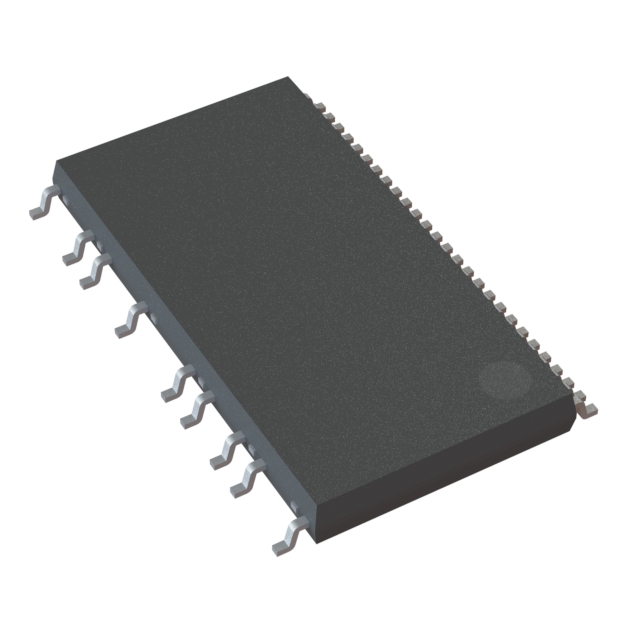

Rohm Semiconductor BM6248FS-E2	Fan Motor Driver	Surface Mount	Controller - Commutation Direction Management	36 Leads	11.40mm Width	54-SOP (0.449	16.5 V	13.5 V	1.5 A	Brushless DC (BLDC)	-40 C	125 °C	Power MOSFET	SSOP-A54_36	PWM	Half Bridge (3)

Catalog

3-Phase Brushless Fan Motor Driver

Description

This 3-phase Brushless Fan motor driver IC adopts PrestoMOS™ as the output transistor, and put in a small full molding package with the 180° sinusoidal commutation controller chip and the high voltage gate driver chip. The protection circuits for overcurrent, overheating, under voltage lock out and the high voltage bootstrap diode with current regulation are built-in. It provides downsizing the built-in PCB of the motor.
