Lca0 Series Series

Small Size Snap-acting Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Small Size Snap-acting Switch

Part	Operating Force	Circuit	Current Rating (Amps)	Voltage Rating - AC	Electrical Life	Switch Function	Mounting Type	Operating Position [x]	Operating Position [x]	Differential Travel	Differential Travel	Pretravel	Pretravel	Termination Style	Release Force	Operating Temperature [Max]	Operating Temperature [Min]	Overtravel	Overtravel	Actuator Type	Operating Position	Operating Position	Mechanical Life	Operating Position [custom]	Operating Position [custom]

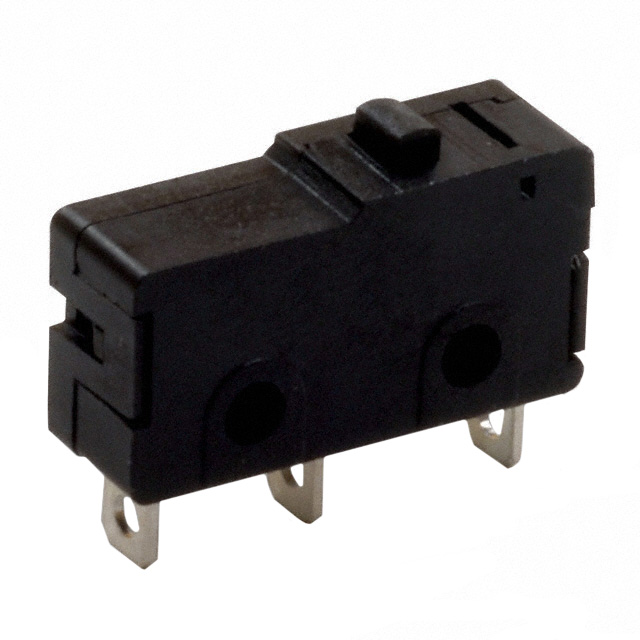

Littelfuse/Commercial Vehicle Products LCA01150P00PC	150 gf	SPDT	100 mA	125 V	1000000 Cycles	On-Mom	Through Hole	0.34 in	8.6 mm	0.008 in	0.2 mm	0.043 "	1.1 mm	PC Pin	25 gf	125 °C	-40 °C	0.4 mm	0.015 "	Round (Pin Plunger)
Littelfuse/Commercial Vehicle Products LCA01150S06QC	47 gf	SPDT	100 mA	125 V	1000000 Cycles	On-Mom	Chassis Mount			0.034 in	0.86 mm	0.154 in	3.9 mm	Quick Connect - 0.110" (2.8mm)		125 °C	-40 °C	0.6 mm	0.024 in	Lever Simulated Roller	10.8 mm	0.425 "
Littelfuse/Commercial Vehicle Products LCA10150P00LC	150 gf	SPDT	10 A	125 V	10000 Cycles	On-Mom	Through Hole			0.008 in	0.2 mm	0.043 "	1.1 mm	PC Pin	25 gf	125 °C	-40 °C	0.4 mm	0.015 "	Round (Pin Plunger)			300000 Cycles	0.335 in	8.5 mm
Littelfuse/Commercial Vehicle Products LCA10150P00SC	150 gf	SPDT	10 A	125 V	10000 Cycles	On-Mom	Chassis Mount			0.008 in	0.2 mm	0.043 "	1.1 mm	Solder Lug	25 gf	125 °C	-40 °C	0.4 mm	0.015 "	Round (Pin Plunger)			300000 Cycles	0.335 in	8.5 mm
Littelfuse/Commercial Vehicle Products LCA10150S06PC	47 gf	SPDT	10 A	125 V	10000 Cycles	On-Mom	Through Hole			0.034 in	0.86 mm	0.154 in	3.9 mm	PC Pin		125 °C	-40 °C	0.6 mm	0.024 in	Lever Simulated Roller	10.8 mm	0.425 "
Littelfuse/Commercial Vehicle Products LCA06150P00PC	150 gf	SPDT	6 A	125 V	10000 Cycles	On-Mom	Through Hole	0.34 in	8.6 mm	0.008 in	0.2 mm	0.043 "	1.1 mm	PC Pin	25 gf	125 °C	-40 °C	0.4 mm	0.015 "	Round (Pin Plunger)
Littelfuse/Commercial Vehicle Products LCA10150P00PC	150 gf	SPDT	10 A	125 V	10000 Cycles	On-Mom	Through Hole			0.008 in	0.2 mm	0.043 "	1.1 mm	PC Pin	25 gf	125 °C	-40 °C	0.4 mm	0.015 "	Round (Pin Plunger)			300000 Cycles	0.335 in	8.5 mm

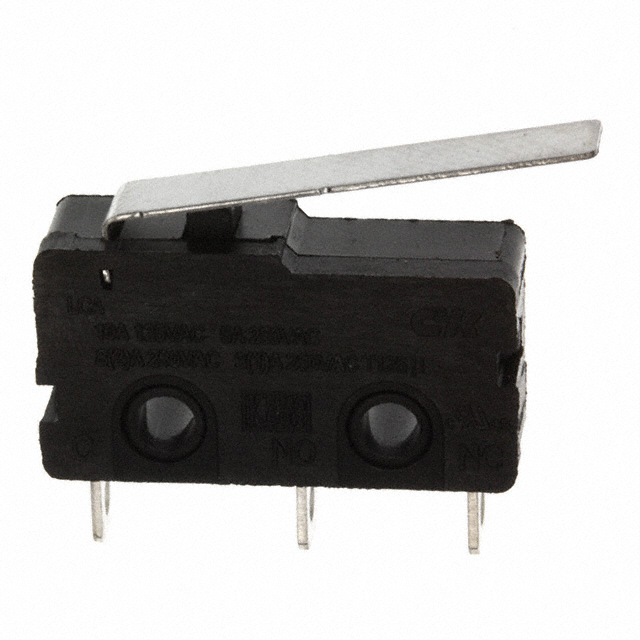

Littelfuse/Commercial Vehicle Products LCA10150T09SC	33 gf	SPDT	10 A	125 V	10000 Cycles	On-Mom	Chassis Mount			0.07 in	1.8 mm	0.17 in	4.3 mm	Solder Lug	2 gf	125 °C	-40 °C	0.74 mm	0.029 in	Lever Straight	9.2 mm	0.362 "	300000 Cycles
Littelfuse/Commercial Vehicle Products LCA06150T05SC	50 gf	SPDT	6 A	125 V	10000 Cycles	On-Mom	Chassis Mount			0.031 "	0.8 mm	0.14 in	3.6 mm	Solder Lug	6 gf	125 °C	-40 °C	0.6 mm	0.024 in	Lever Straight				0.355 in	9 mm
Littelfuse/Commercial Vehicle Products LCA01150A05SC	50 gf	SPDT	100 mA	125 V	1000000 Cycles	On-Mom	Chassis Mount			0.031 "	0.8 mm	0.14 in	3.6 mm	Solder Lug	6 gf	125 °C	-40 °C	0.6 mm	0.024 in	Lever Roller				0.355 in	9 mm

Catalog

Small Size Snap-acting Switch

Key Features

• Compact design

• Long life and high electrical capacity

• Quick connect, solder terminals, PC terminals

• Wide variety of actuator styles

Description

C&K’s LCA series small size snap-acting switch features a compact design; includes quick connect, solder terminals and PC terminals; and is available in a wide variety of actuator styles. Designers of motorized equipment, sump pumps and thermostatic controls turn to the LCA series because of its reputation for high performance, a long lifecycle and a high electrical capacity.
