1825262 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

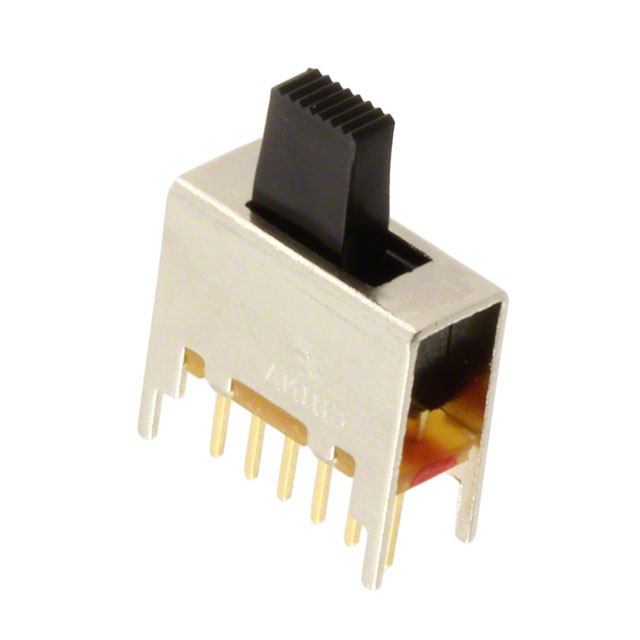

SWITCH SLIDE DPDT 0.4VA 20V
| Part | Actuator Type | Contact Timing | Circuit | Contact Material | Actuator Material | Features | Termination Style | Switch Function | Voltage Rating - DC | Current Rating (Amps) | Switch Travel | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Electrical Life | Actuator Length [x] | Operating Force | Mechanical Life | Contact Finish | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Standard | Shorting | DPDT | Copper Alloy | Polyoxymethylene (Acetal) (POM) | Epoxy Sealed Terminals | PC Pin | On-On | 20 V | 0.4 VA | 2 mm | Through Hole | 85 °C | -20 C | 15000 Cycles | 6.2 mm | 600 gf | 15000 Cycles | Gold | 20 V |
TE Connectivity Raychem Cable Protection | Standard | Shorting | DPDT | Copper Alloy | Polyoxymethylene (Acetal) (POM) | Epoxy Sealed Terminals | PC Pin | On-On | 300 mA | 2 mm | Through Hole | 85 °C | -20 C | 15000 Cycles | 6.2 mm | 600 gf | 15000 Cycles | Silver | 125 V |
