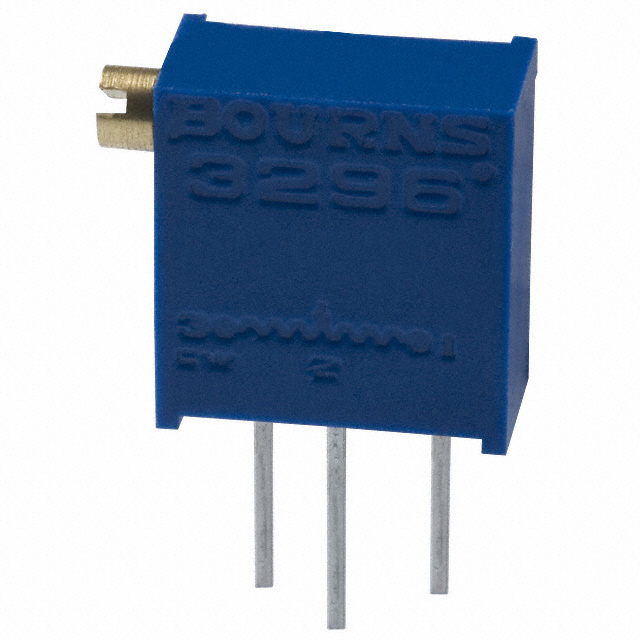

3296Z Series
Manufacturer: Bourns Inc.
Beta
⌘K
TRIMMER 5M OHM 0.5W PC PIN SIDE
| Part | Mounting Type | Number of Turns | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Temperature Coefficient | Tolerance | Adjustment Type | Resistance | Resistive Material | Power (Watts) | Power (Watts) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Through Hole | 25 | 10.03 mm | 4.83 mm | 0.395 " | 0.19 in | 100 ppm/°C | 10 % | Side Adjustment | 5000000 Ohms | Cermet | 0.5 W | 0.5 W | PC Pins |
Bourns Inc. | Through Hole | 25 | 10.03 mm | 4.83 mm | 0.395 " | 0.19 in | 100 ppm/°C | 10 % | Side Adjustment | 20 kOhms | Cermet | 0.5 W | 0.5 W | PC Pins |
Bourns Inc. | Through Hole | 25 | 10.03 mm | 4.83 mm | 0.395 " | 0.19 in | 100 ppm/°C | 10 % | Side Adjustment | 100 kOhms | Cermet | 0.5 W | 0.5 W | PC Pins |
Bourns Inc. | Through Hole | 25 | 10.03 mm | 4.83 mm | 0.395 " | 0.19 in | 100 ppm/°C | 10 % | Side Adjustment | Cermet | 0.5 W | 0.5 W | PC Pins | |
Bourns Inc. | Through Hole | 25 | 10.03 mm | 4.83 mm | 0.395 " | 0.19 in | 100 ppm/°C | 10 % | Side Adjustment | 2 MOhms | Cermet | 0.5 W | 0.5 W | PC Pins |
 Bourns Inc. | Through Hole | 25 | 10.03 mm | 4.83 mm | 0.395 " | 0.19 in | 100 ppm/°C | 10 % | Side Adjustment | 200 Ohms | Cermet | 0.5 W | 0.5 W | PC Pins |
Bourns Inc. | Through Hole | 25 | 10.03 mm | 4.83 mm | 0.395 " | 0.19 in | 100 ppm/°C | 10 % | Side Adjustment | 2 MOhms | Cermet | 0.5 W | 0.5 W | PC Pins |
Bourns Inc. | Through Hole | 25 | 10.03 mm | 4.83 mm | 0.395 " | 0.19 in | 100 ppm/°C | 10 % | Side Adjustment | 1 MOhms | Cermet | 0.5 W | 0.5 W | PC Pins |
Bourns Inc. | Through Hole | 25 | 10.03 mm | 4.83 mm | 0.395 " | 0.19 in | 100 ppm/°C | 10 % | Side Adjustment | 2 kOhms | Cermet | 0.5 W | 0.5 W | PC Pins |
Bourns Inc. | Through Hole | 25 | 10.03 mm | 4.83 mm | 0.395 " | 0.19 in | 100 ppm/°C | 10 % | Side Adjustment | 2 kOhms | Cermet | 0.5 W | 0.5 W | PC Pins |
