FMM18 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN EDGE DUAL FMALE 36POS 0.156

Part	Contact Finish	Color	Card Type	Card Thickness	Card Thickness	Read Out	Material - Insulation	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Number of Positions/Bay/Row [custom]	Number of Positions	Gender	Contact Type	Termination	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Number of Rows	Features	Mounting Type
Sullins Connector Solutions FMM18DREH	Gold	Green	Non Specified - Dual Edge	0.062 in	1.57 mm	Dual	Polyphenylene Sulfide (PPS)	0.125 in	3.18 mm	Top Mount Opening Unthreaded	18	36	Female	Full Bellows	Solder Eyelet(s)	0.156 in	3.96 mm	-65 ░C	200 °C	0.76 Ám	30 Áin	Spinodal	2
Sullins Connector Solutions FMM18DRYH-S13	Gold		Non Specified - Dual Edge	0.062 in	1.57 mm	Dual	Polyphenylene Sulfide (PPS)	0.125 in	3.18 mm	Top Mount Opening Unthreaded	18	36	Female	Full Bellows	Solder	0.156 in	3.96 mm	-65 ░C	200 °C	0.76 Ám	30 Áin	Spinodal	2	Card Extender	Board Edge Straddle Mount
Sullins Connector Solutions FMM18DRKF-S13	Gold	Green	Non Specified - Dual Edge	0.062 in	1.57 mm	Single	Polyphenylene Sulfide (PPS)	0.116 in	2.95 mm	Floating Bobbin Top Mount Opening	18	36	Female	Full Bellows	Solder	0.156 in	3.96 mm	-65 ░C	200 °C	0.76 Ám	30 Áin	Spinodal	2	Card Extender	Board Edge Straddle Mount

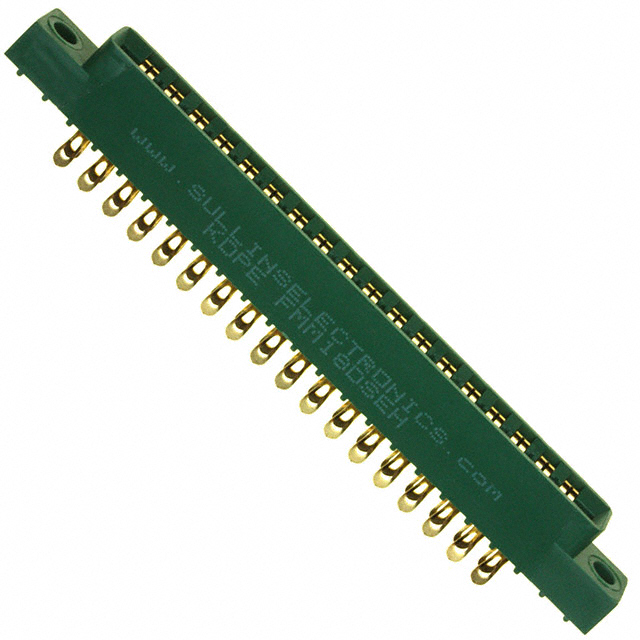

Sullins Connector Solutions FMM18DSEH	Gold	Green	Non Specified - Dual Edge	0.062 in	1.57 mm	Dual	Polyphenylene Sulfide (PPS)	0.125 in	3.18 mm	Top Mount Opening Unthreaded	18	36	Female	Full Bellows	Solder Eyelet(s)	0.156 in	3.96 mm	-65 ░C	200 °C	0.76 Ám	30 Áin	Spinodal	2
Sullins Connector Solutions FMM18DSEI	Gold	Green	Non Specified - Dual Edge	0.062 in	1.57 mm	Dual	Polyphenylene Sulfide (PPS)			4-40 Threaded Insert Top Mount Opening	18	36	Female	Full Bellows	Solder Eyelet(s)	0.156 in	3.96 mm	-65 ░C	200 °C	0.76 Ám	30 Áin	Spinodal	2
Sullins Connector Solutions FMM18DSEI-S243	Gold	Green	Non Specified - Dual Edge	0.062 in	1.57 mm	Single	Polyphenylene Sulfide (PPS)			4-40 Threaded Insert Top Mount Opening	18	36	Female	Full Bellows	Solder Eyelet(s)	0.156 in	3.96 mm	-65 ░C	200 °C	0.76 Ám	30 Áin	Spinodal	2
Sullins Connector Solutions FMM18DRKH-S13	Gold	Green	Non Specified - Dual Edge	0.062 in	1.57 mm	Single	Polyphenylene Sulfide (PPS)	0.125 in	3.18 mm	Top Mount Opening Unthreaded	18	36	Female	Full Bellows	Solder	0.156 in	3.96 mm	-65 ░C	200 °C	0.76 Ám	30 Áin	Spinodal	2	Card Extender	Board Edge Straddle Mount
Sullins Connector Solutions FMM18DREI	Gold	Green	Non Specified - Dual Edge	0.062 in	1.57 mm	Dual	Polyphenylene Sulfide (PPS)			4-40 Threaded Insert Top Mount Opening	18	36	Female	Full Bellows	Solder Eyelet(s)	0.156 in	3.96 mm	-65 ░C	200 °C	0.76 Ám	30 Áin	Spinodal	2
Sullins Connector Solutions FMM18DRKI	Gold	Green	Non Specified - Dual Edge	0.062 in	1.57 mm	Dual	Polyphenylene Sulfide (PPS)			4-40 Threaded Insert Top Mount Opening	18	36	Female	Full Bellows	Solder	0.156 in	3.96 mm	-65 ░C	200 °C	0.76 Ám	30 Áin	Spinodal	2		Through Hole
Sullins Connector Solutions FMM18DSEN	Gold	Green	Non Specified - Dual Edge	0.062 in	1.57 mm	Dual	Polyphenylene Sulfide (PPS)				18	36	Female	Full Bellows	Solder Eyelet(s)	0.156 in	3.96 mm	-65 ░C	200 °C	0.76 Ám	30 Áin	Spinodal	2		Free Hanging (In-Line)
