2108965 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

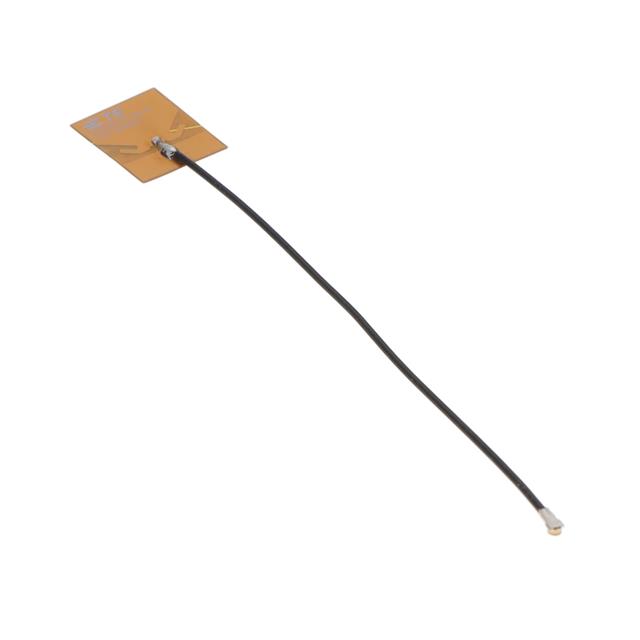

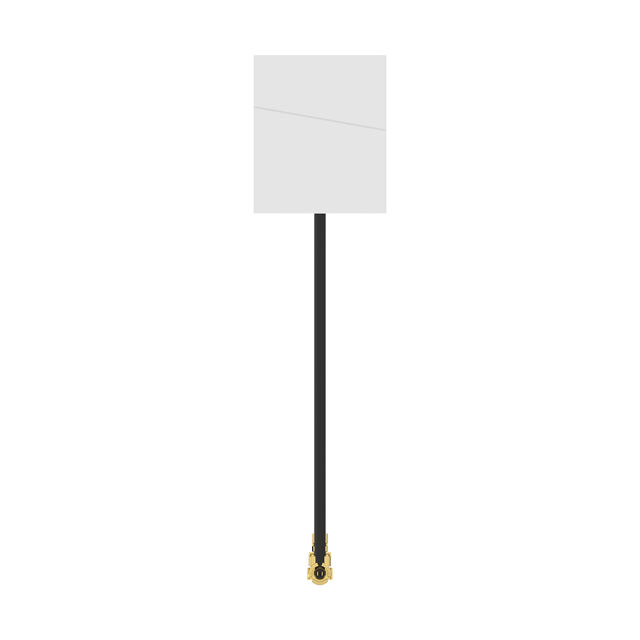

FPC ANT, MHF 4L, 50MM, UWB 6~8.5
| Part | Frequency Range [Min] | Frequency Range [Max] | Antenna Type | Power - Max [Max] | RF Family/Standard | Applications | VSWR | Termination | Frequency Group | Mounting Type | Height (Max) | Height (Max) [Max] | Features | Features | Number of Bands | Gain | Frequency (Center/Band) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 6 GHz | 8.5 GHz | Flat Patch | 10 W | Ultra Wide Band | UWB | 2 | MHF4L | Wide Band | Adhesive | 0.15 mm | 0.006 in | 50 mm | Cable | 1 | 4.2 dBi | 7.2 GHz |
 TE Connectivity Raychem Cable Protection | 6 GHz | 8.5 GHz | Flat Patch | 10 W | Ultra Wide Band | UWB | 2.1 | MHF | Wide Band | Adhesive | 0.15 mm | 0.006 in | 100 mm | Cable | 1 | 4 dBi | 7.2 GHz |
TE Connectivity Raychem Cable Protection | 6 GHz | 8.5 GHz | Flat Patch | 10 W | Ultra Wide Band | UWB | 2.1 | MHF | Wide Band | Adhesive | 0.15 mm | 0.006 in | 50 mm | Cable | 1 | 4.2 dBi | 7.2 GHz |
 TE Connectivity Raychem Cable Protection | 6 GHz | 8.5 GHz | Flat Patch | 10 W | Ultra Wide Band | UWB | 2.1 | MHF4L | Wide Band | Adhesive | 0.15 mm | 0.006 in | 100 mm | Cable | 1 | 3.8 dBi | 7.2 GHz |
 TE Connectivity Raychem Cable Protection | 6 GHz | 8.5 GHz | Flat Patch | 10 W | Ultra Wide Band | UWB | 1.8 | MHF4L | Wide Band | Adhesive | 0.15 mm | 0.006 in | 200 mm | Cable | 1 | 3.1 dBi | 7.2 GHz |
TE Connectivity Raychem Cable Protection | 6 GHz | 8.5 GHz | Flat Patch | 10 W | Ultra Wide Band | UWB | 2 | MHF | Wide Band | Adhesive | 0.15 mm | 0.006 in | Cable - 150mm | 1 | 3.7 dBi | 7.2 GHz | |
TE Connectivity Raychem Cable Protection | 6 GHz | 8.5 GHz | Flat Patch | 10 W | Ultra Wide Band | UWB | 1.8 | MHF4L | Wide Band | Adhesive | 0.15 mm | 0.006 in | Cable - 150mm | 1 | 3.5 dBi | 7.2 GHz |
