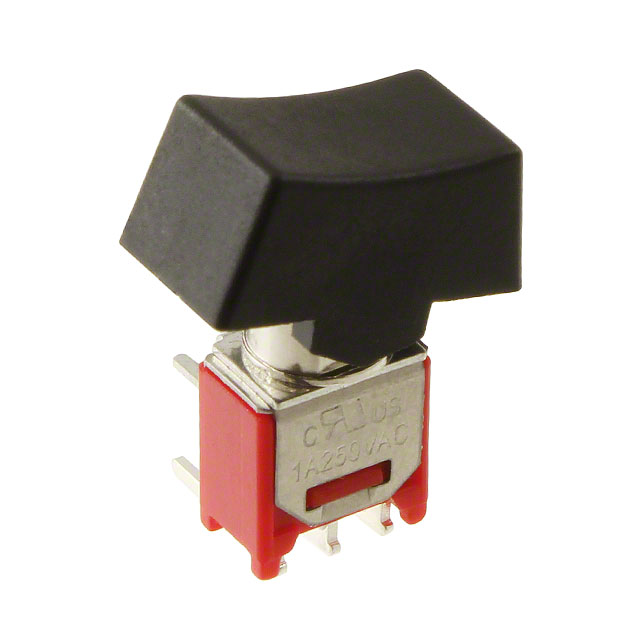

400MSP1 Series

Manufacturer: E-Switch

Catalog

SWITCH ROCKER SPDT 3A 120V

Part	Mechanical Life	Electrical Life	Circuit	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Voltage Rating - DC	Termination Style	Actuator Marking	Color - Actuator/Cap	Current Rating (Amps)	Mounting Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Features	Switch Function	Actuator Type
E-Switch 400MSP1R6BLKM1QE	30000 Steps	30000 Cycles	SPDT	7.11 mm	15.75 mm	cULus	28 V	Solder Lug	No Marking	Black	3 A	Flange Panel Mount	120 V	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On	Concave (Curved)
E-Switch 400MSP1R6BLKVS2RE	30000 Steps	30000 Cycles	SPDT	7.11 mm	15.75 mm	cULus	20 V	PC Pin	No Marking	Black	0.4 VA	Through Hole	20 V	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On	Concave (Curved)
E-Switch 400MSP1R1M6QE	30000 Steps	30000 Cycles	SPDT	8.89 mm	15.75 mm	cULus	28 V	PC Pin	No Marking	Black	3 A	Right Angle Through Hole	120 V	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On	Concave (Curved)
E-Switch 400MSP1R6BLKVS2QE	30000 Steps	30000 Cycles	SPDT	7.11 mm	15.75 mm	cULus	28 V	PC Pin	No Marking	Black	3 A	Through Hole	120 V	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On	Concave (Curved)
E-Switch 400MSP1R6BLKM7QE	30000 Steps	30000 Cycles	SPDT	7.11 mm	15.75 mm	cULus	28 V	PC Pin	No Marking	Black	3 A	Right Angle Through Hole Vertical	120 V	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On	Concave (Curved)
E-Switch 400MSP1R1BLKM1QE	30000 Steps	30000 Cycles	SPDT	8.89 mm	15.75 mm	cULus	28 V	Solder Lug	No Marking	Black	3 A	Flange Panel Mount	120 V	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On	Concave (Curved)
E-Switch 400MSP1R6BLKM61QE	30000 Steps	30000 Cycles	SPDT			cULus	28 V	PC Pin	No Marking	Black	3 A	Right Angle Through Hole	120 V	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On	Concave (Curved)
E-Switch 400MSP1R1BLKM7RE	30000 Steps	30000 Cycles	SPDT	8.89 mm	15.75 mm	cULus	20 V	PC Pin	No Marking	Black	0.4 VA	Right Angle Through Hole Vertical	20 V	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On	Concave (Curved)
E-Switch 400MSP1R6WHTM6RE	30000 Steps	30000 Cycles	SPDT			cULus	20 V	PC Pin	No Marking	White	0.4 VA	Right Angle Through Hole	20 V	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On	Concave (Curved)
E-Switch 400MSP1R1BLKM1RE	30000 Steps	30000 Cycles	SPDT	8.89 mm	15.75 mm	cULus	20 V	Solder Lug	No Marking	Black	0.4 VA	Flange Panel Mount	20 V	85 °C	-30 ░C	Epoxy Sealed Terminals	On-On	Concave (Curved)
