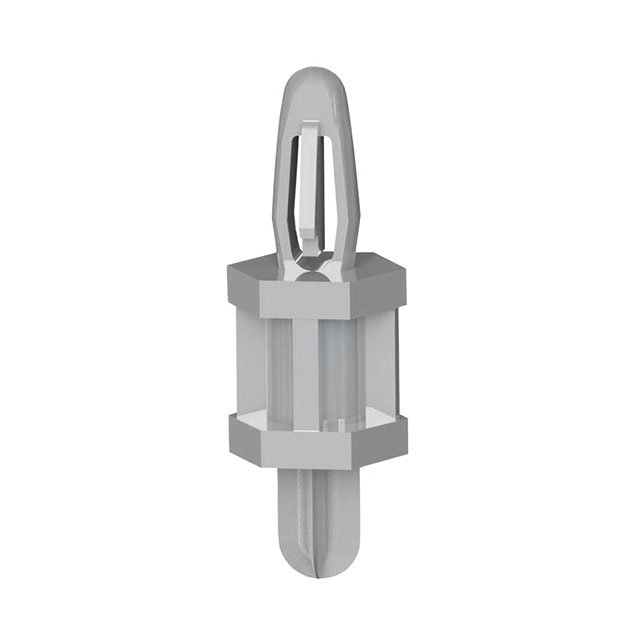

SCBSST Series

Catalog

BRD SPT SNAP LOCK THR STUD 5/8"

Part	Length - Overall [x]	Length - Overall [x]	Features	Mounting Panel Thickness	Mounting Panel Thickness [custom]	Holding Type	Mounting Type	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Between Board Height	Between Board Height	Between Board Height	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Material
Essentra Components SCBSST-10-01	32.5 mm	1.28 in	M4 Thread	1.6 mm	0.063 in	Snap Lock	Threaded Stud	3.99 mm	0.157 "	15.88 mm	0.625 in	5 8	1.57 mm	0.062 in	0.0625 in	Nylon
Essentra Components SCBSST-8-01	29.3 mm	1.154 in	M4 Thread	1.6 mm	0.063 in	Snap Lock	Threaded Stud	3.99 mm	0.157 "	12.7 mm	0.5 in	0.5 in	1.57 mm	0.062 in	0.0625 in	Nylon
Essentra Components SCBSST-4-01	23 mm	0.906 in	M4 Thread	1.6 mm	0.063 in	Snap Lock	Threaded Stud	3.99 mm	0.157 "	0.25 in	6.35 mm		1.57 mm	0.062 in	0.0625 in	Nylon
Essentra Components SCBSST-16-01	42 mm	1.653 in	M4 Thread	1.6 mm	0.063 in	Snap Lock	Threaded Stud	3.99 mm	0.157 "	25.4 mm	1 in		1.57 mm	0.062 in	0.0625 in	Nylon
