AS5161 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

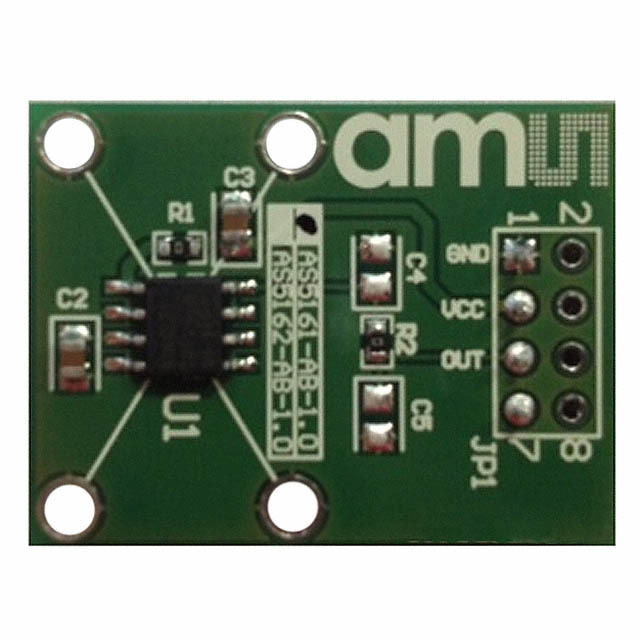

ADAPTER BOARD FOR AS5161
| Part | Supplied Contents | Voltage - Supply [Max] | Voltage - Supply [Min] | Contents | Sensor Type | Utilized IC / Part | Sensing Range | Embedded | Interface | Rotation Angle - Electrical, Mechanical [Max] | Rotation Angle - Electrical, Mechanical [Min] | Technology | Termination Style | Package / Case | Package / Case | Package / Case | Supplier Device Package | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | For Measuring | Actuator Type | Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | Accessories Board(s) | 5.5 V | 4.5 V | Accessories Board(s) | Magnetic Rotary Position | AS5161 | 360 ° | PWM | |||||||||||||||
 ams-OSRAM USA INC. | 5.5 V | 4.5 V | 360 ° | 0 ° | Hall Effect | Gull Wing | 0.154 in | 8-SOIC | 3.9 mm | 8-SOIC | Surface Mount | -40 C | 150 °C | Angle | External Magnet Not Included | PWM |
