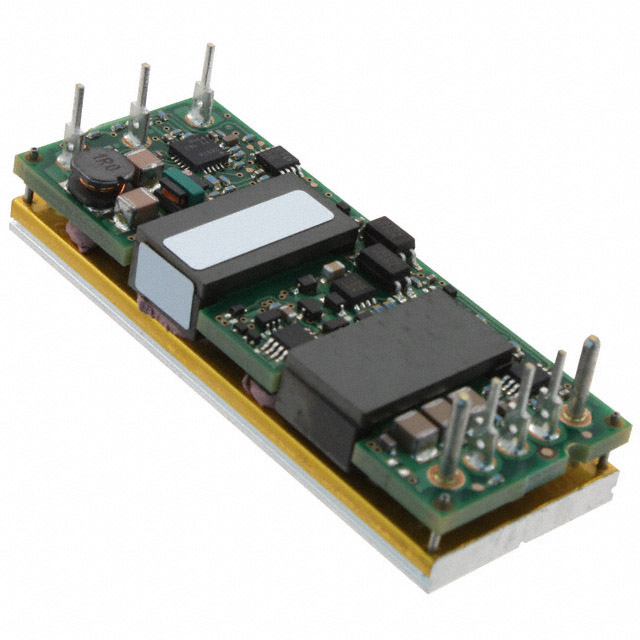

ESTW004 Series
Manufacturer: OmniOn Power™
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 36-75V 15VOUT4.2A TH AUTO RESTART NEG LG
| Part | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Voltage - Input (Min) [Min] | Power (Watts) | Applications | Voltage - Input (Max) [Max] | Package / Case | Features | Mounting Type | Number of Outputs | Type | Current - Output (Max) [Max] | Control Features | Efficiency | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | 22.8 mm | 0.9 in | 57.9 mm | 2.28 " | 0.3 in | 7.6 mm | 85 °C | -40 C | 15 V | 36 V | 63 W | ITE (Commercial) | 75 V | 8-DIP Module | OCP OTP OVP Remote On/Off UVLO | Through Hole | 1 | Isolated Module | 4.2 A | Active Low Enable | 90 % | 2250 VDC |
OmniOn Power™ | 22.8 mm | 0.9 in | 57.9 mm | 2.28 " | 0.3 in | 7.6 mm | 85 °C | -40 C | 15 V | 36 V | 63 W | ITE (Commercial) | 75 V | 8-DIP Module | OCP OTP OVP Remote On/Off UVLO | Through Hole | 1 | Isolated Module | 4.2 A | Active Low Enable | 90 % | 2250 VDC |
