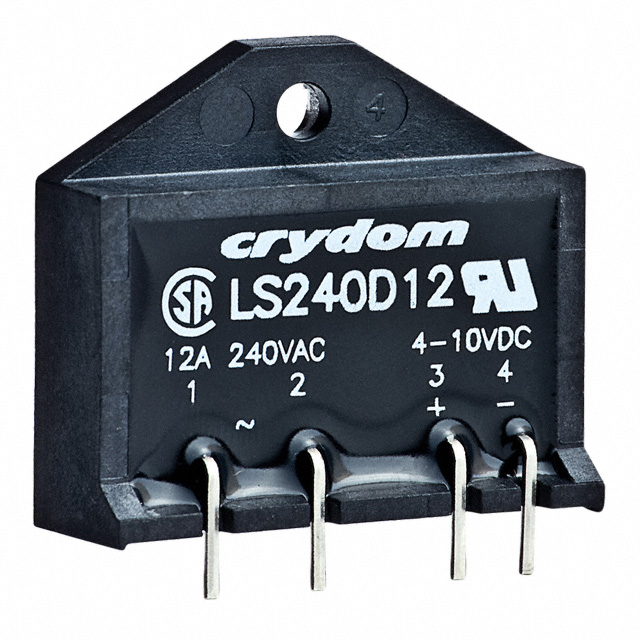

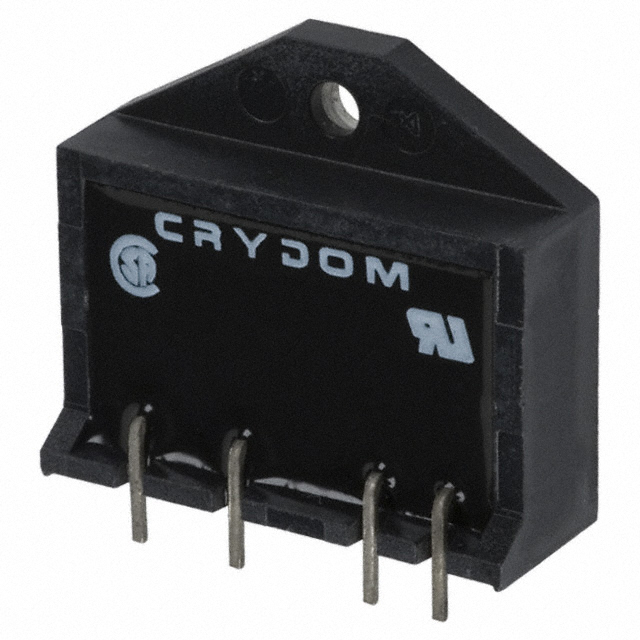

LS240D Series
Manufacturer: Sensata-Crydom
Beta
⌘K
SSR RELAY SPST-NO 8A 24-280V
| Part | Supplier Device Package | Output Type | Package / Case | Voltage - Input [Min] | Voltage - Input [Max] | Load Current | Voltage - Load [Min] | Voltage - Load [Max] | Approval Agency | Termination Style | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | 4-SIP | AC | 4-SIP | 4 V | 10 VDC | 8 A | 24 V | 280 V | CE cURus | PC Pin | Through Hole | 80 °C | -30 ░C |
Sensata-Crydom | 4-SIP | AC Zero Cross | 4-SIP | 4 V | 10 VDC | 8 A | 24 V | 280 V | CE cURus | PC Pin | Through Hole | 80 °C | -30 ░C |
Sensata-Crydom | 4-SIP | AC Zero Cross | 4-SIP | 4 V | 10 VDC | 12 A | 24 V | 280 V | CE cURus | PC Pin | Through Hole | 80 °C | -30 ░C |
 Sensata-Crydom | 4-SIP | AC | 4-SIP | 4 V | 10 VDC | 12 A | 24 V | 280 V | CE cURus | PC Pin | Through Hole | 80 °C | -30 ░C |
