GBC35S Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD R/A 35POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Shrouding	Current Rating (Amps)	Number of Positions	Contact Shape	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Style	Contact Material	Connector Type	Contact Finish - Mating	Contact Finish - Post	Mounting Type	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Termination	Insulation Color	Insulation Material	Number of Positions Loaded

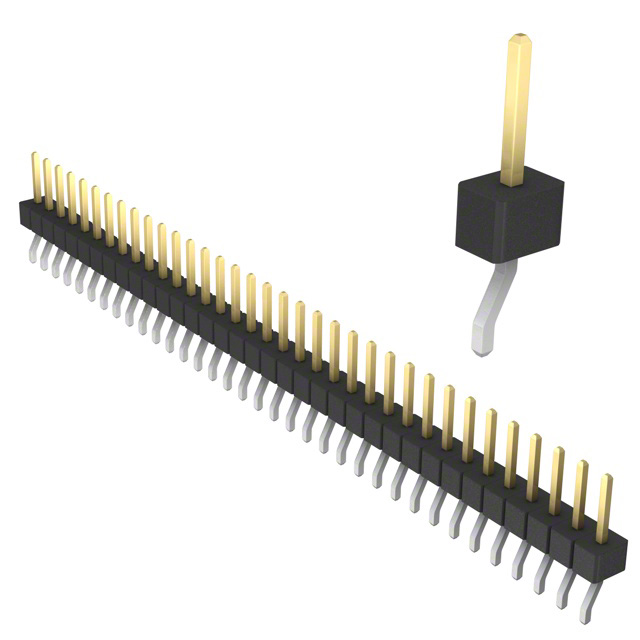

Sullins Connector Solutions GBC35SBSN-M89	2.54 µm	100 µin	1	Unshrouded	3 A	35	Square	Push-Pull	150 °C	-65 ░C	UL94 V-0	0.23 in	5.84 mm	Board to Board Cable	Phosphor Bronze	Header Breakaway	Gold	Tin	Right Angle Surface Mount	Male Pin	0.1 "	2.54 mm	0.25 µm	10 µin	3.56 mm	0.14 in	Solder	Black	Nylon 9T Polyamide (PA9T)	All

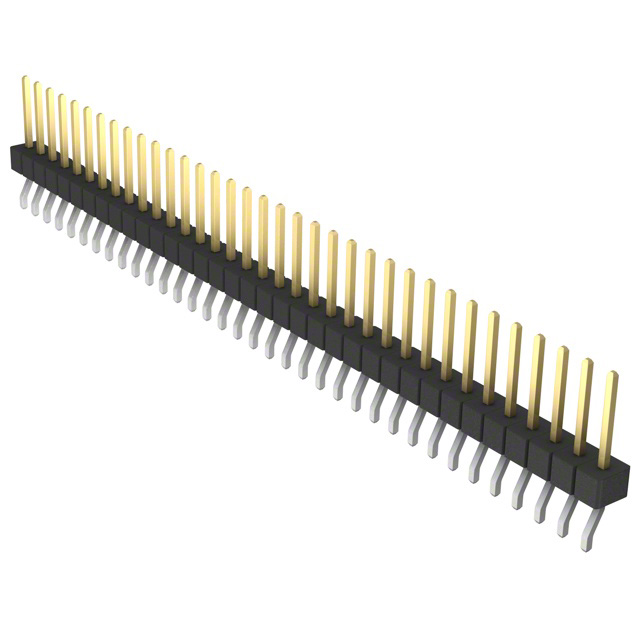

Sullins Connector Solutions GBC35SGSN-M89	2.54 µm	100 µin	1	Unshrouded	3 A	35	Square	Push-Pull	150 °C	-65 ░C	UL94 V-0	0.318 in	8.08 mm	Board to Board Cable	Phosphor Bronze	Header Breakaway	Gold	Tin	Right Angle Surface Mount	Male Pin	0.1 "	2.54 mm	0.25 µm	10 µin	3.56 mm	0.14 in	Solder	Black	Nylon 9T Polyamide (PA9T)	All
Sullins Connector Solutions GBC35SFBN-M30	2.54 µm	100 µin	1	Unshrouded	3 A	35	Square	Push-Pull	150 °C	-65 ░C	UL94 V-0	0.318 in	8.08 mm	Board to Board Cable	Phosphor Bronze	Header Breakaway	Gold	Tin	Surface Mount	Male Pin	0.1 "	2.54 mm	0.25 µm	10 µin	2.54 mm	0.1 in	Solder	Black	Nylon 9T Polyamide (PA9T)	All
Sullins Connector Solutions GBC35SABN-M30	2.54 µm	100 µin	1	Unshrouded	3 A	35	Square	Push-Pull	150 °C	-65 ░C	UL94 V-0	0.23 in	5.84 mm	Board to Board Cable	Phosphor Bronze	Header Breakaway	Gold	Tin	Surface Mount	Male Pin	0.1 "	2.54 mm	0.25 µm	10 µin	2.54 mm	0.1 in	Solder	Black	Nylon 9T Polyamide (PA9T)	All
