1981813 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

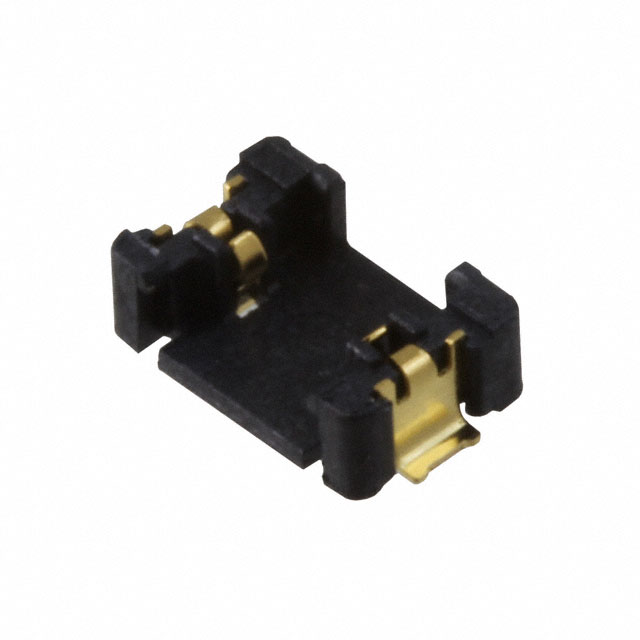

CONN RCPT 2POS 0.031 GOLD SMD
| Part | Contact Finish - Post | Number of Rows | Pitch - Mating | Pitch - Mating | Termination | Contact Finish - Mating | Number of Positions Loaded | Insulation Material | Insulation Color | Material Flammability Rating | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Mounting Type | Connector Type | Contact Type | Number of Positions | Features | Style | Insulation Height [z] | Insulation Height [z] | Contact Material | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Gold | 1 | 0.031 in | 0.8 mm | Solder | Gold | All | Liquid Crystal Polymer (LCP) Halogen Free | Black | UL94 V-0 | 0.5 A | 12 µin | 0.3 µm | 0.05 µm | 1.97 µin | 30 VDC | -25 °C | 85 °C | General Purpose | Surface Mount | Receptacle | Outer Shroud Contact | 2 | Solder Retention | Board to Cable/Wire | 0.055 in | 1.4 mm | Phosphor Bronze | Detent Lock |
