34160 Series

Catalog

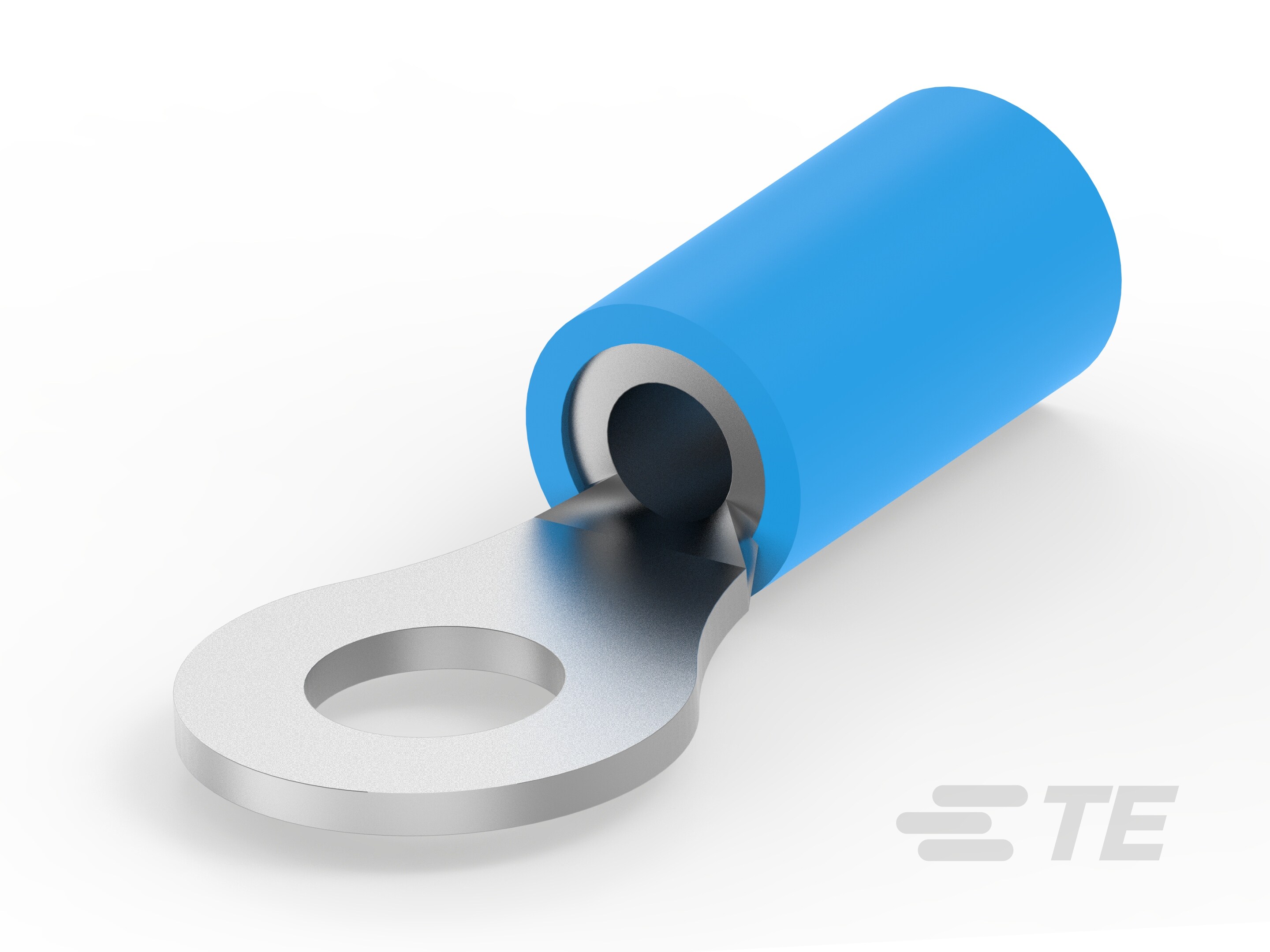

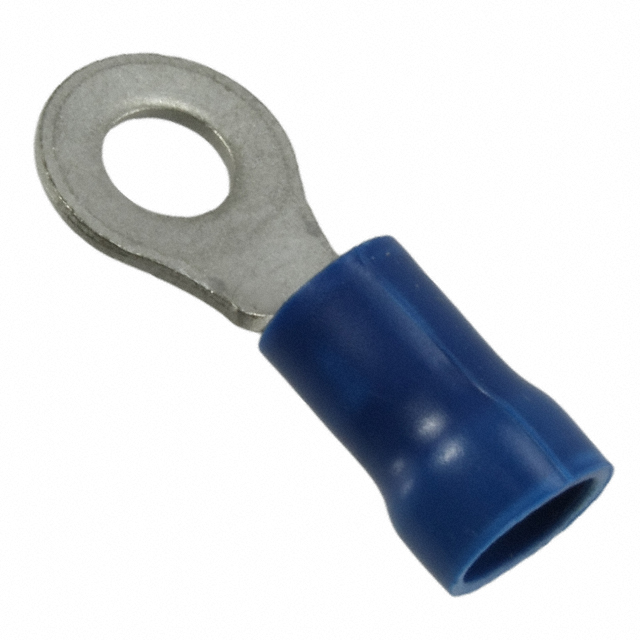

CONN RING CIRC 14-16AWG #8 CRIMP

Part	Contact Material	Terminal Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Thickness	Thickness	Insulation	Contact Finish	Mounting Type	Color	Features	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Stud/Tab Size	Termination	Material - Insulation	Length - Overall [x]	Length - Overall [x]
TE Connectivity Raychem Cable Protection 8-34160-1	Copper	Circular	0.343 in	8.71 mm	0.031 in	0.79 mm	Insulated	Tin	Free Hanging (In-Line)	Blue	Serrated Termination	4.9 mm	3 mm	0.193 in	0.118 in	8 Stud	Crimp	Poly-Vinyl Chloride (PVC)	22.12 mm	0.871 in
TE Connectivity Raychem Cable Protection 2-34160-1	Copper	Circular	0.343 in	8.71 mm	0.031 in	0.79 mm	Insulated	Tin	Free Hanging (In-Line)	Blue	Serrated Termination	4.9 mm	3 mm	0.193 in	0.118 in	8 Stud	Crimp	Poly-Vinyl Chloride (PVC)	22.12 mm	0.871 in
