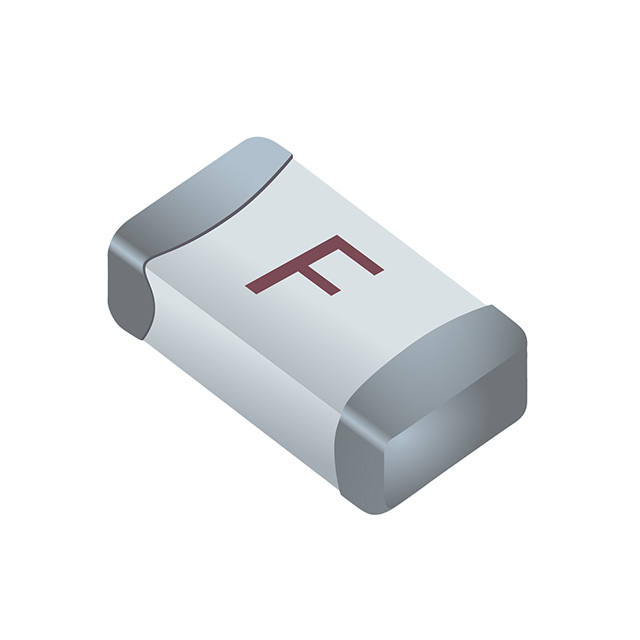

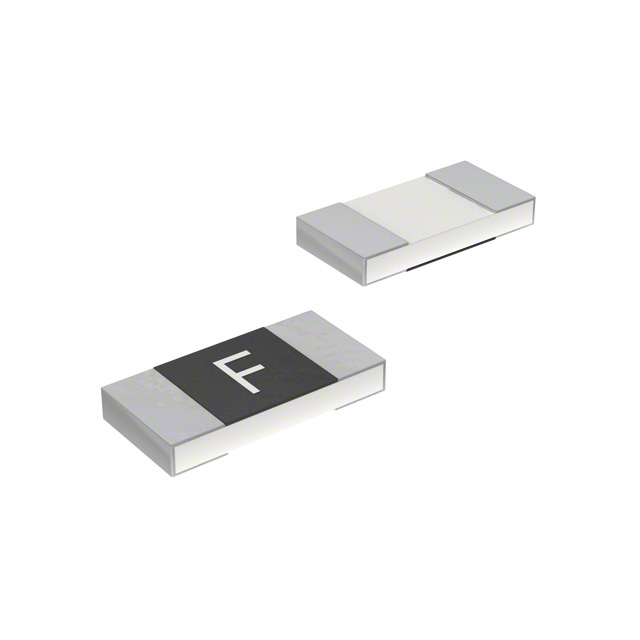

SF-1206 Series
Manufacturer: Bourns Inc.
Beta
⌘K
SMD FUSE, 15A, 50V, 1206 ROHS COMPLIANT: YES
| Part | DC Cold Resistance | Melting I²t | Approval Agency | Mounting Type | Breaking Capacity @ Rated Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Fuse Type | Voltage Rating - AC | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Voltage Rating - DC | Package / Case | Response Time | Melting I˛t | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.0026 Ohms | 77 | AEC-Q200 cUL UL | Surface Mount | 100 A | -55 C | 125 °C | 15 A | Board Mount (Cartridge Style Excluded) | 50 V | 1.65 mm | 0.065 in | 0.126 " | 1.2 mm | 3.2 mm | 0.047 " | 50 VDC | 1206 (3216 Metric) | ||||
Bourns Inc. | 0.0013 Ohms | 171.7 | AEC-Q200 cUL UL | Surface Mount | 200 A | -55 C | 125 °C | 25 A | Board Mount (Cartridge Style Excluded) | 50 V | 1.65 mm | 0.065 in | 0.126 " | 1.2 mm | 3.2 mm | 0.047 " | 50 VDC | 1206 (3216 Metric) | ||||
 Bourns Inc. | 0.023 Ohms | 0.501 | UL | Surface Mount | 50 A | -20 ░C | 105 ░C | 3 A | Board Mount (Cartridge Style Excluded) | 1.55 mm | 0.061 in | 0.122 " | 0.6 mm | 3.1 mm | 0.024 in | 32 V | 1206 (3216 Metric) | Fast Blow | ||||
Bourns Inc. | 10.17 | UL | Surface Mount | 50 A | -20 ░C | 105 ░C | 7 A | Board Mount (Cartridge Style Excluded) | 1.55 mm | 0.061 in | 0.122 " | 0.6 mm | 3.1 mm | 0.024 in | 32 V | 1206 (3216 Metric) | Slow Blow | |||||
 Bourns Inc. | 0.031 Ohms | 0.21 | Surface Mount | 50 A | -55 C | 125 °C | 3 A | Board Mount (Cartridge Style Excluded) | 1.6 mm | 0.063 " | 0.126 " | 0.85 mm | 3.2 mm | 0.033 in | 32 V | 1206 (3216 Metric) | Slow Blow | |||||
 Bourns Inc. | 0.108 Ohms | 0.098 | UL | Surface Mount | 50 A | -20 ░C | 105 ░C | 1 A | Board Mount (Cartridge Style Excluded) | 1.55 mm | 0.061 in | 0.122 " | 0.6 mm | 3.1 mm | 0.024 in | 63 VDC | 1206 (3216 Metric) | Slow Blow | 0.098 | |||
 Bourns Inc. | 0.001 Ohms | 280.2 | AEC-Q200 cUL UL | Surface Mount | 200 A | -55 C | 125 °C | 30 A | Board Mount (Cartridge Style Excluded) | 50 V | 1.65 mm | 0.065 in | 0.126 " | 1.2 mm | 3.2 mm | 0.047 " | 50 VDC | 1206 (3216 Metric) | ||||
 Bourns Inc. | 0.01 Ohms | 10 | Surface Mount | 60 A | -55 C | 150 °C | 7 A | Board Mount (Cartridge Style Excluded) | 0.063 " | 0.126 " | 3.2 mm | 0.038 in | 24 V | 1206 (3216 Metric) | Slow Blow | 10 | 0.97 mm | 1.6 mm | ||||
Bourns Inc. | 0.0013 Ohms | 171.7 | cUL UL | Surface Mount | 200 A | -55 C | 150 °C | 25 A | Board Mount (Cartridge Style Excluded) | 50 V | 1.65 mm | 0.065 in | 0.126 " | 1.2 mm | 3.2 mm | 0.047 " | 50 VDC | 1206 (3216 Metric) | ||||
 Bourns Inc. | 0.032 Ohms | 0.339 | UL | Surface Mount | 50 A | -20 ░C | 105 ░C | 2 A | Board Mount (Cartridge Style Excluded) | 1.55 mm | 0.061 in | 0.122 " | 0.6 mm | 3.1 mm | 0.024 in | 63 VDC | 1206 (3216 Metric) | Slow Blow |
