087758 Series

Manufacturer: Molex

Catalog

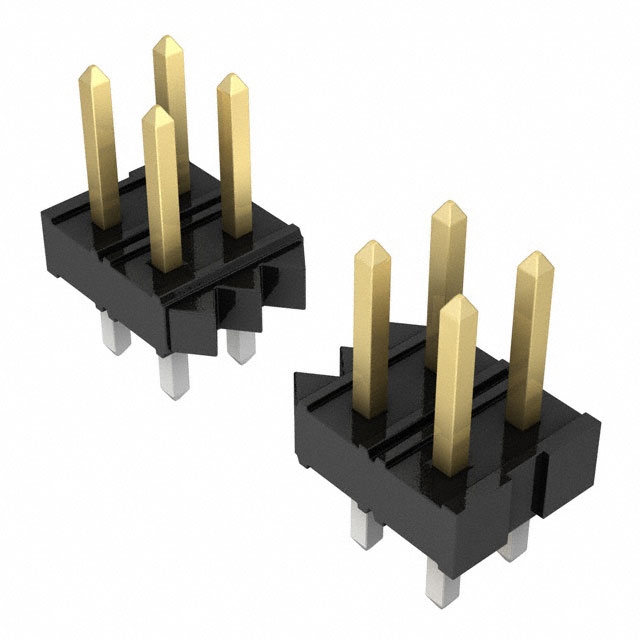

CONN HEADER VERT 44POS 2MM

Part	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Finish - Post	Style	Number of Rows	Applications	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Insulation Material	Insulation Color	Contact Length - Mating	Contact Length - Mating	Connector Type	Shrouding	Material Flammability Rating	Overall Contact Length	Overall Contact Length	Termination	Contact Type	Contact Material	Contact Shape	Contact Length - Mating	Contact Finish Thickness - Mating	Overall Contact Length [x]	Overall Contact Length [x]
Molex 0877584450	44	15 µin	0.38 µm	1.5 mm	0.059 "	0.102 in	2.6 mm	All	Tin	Board to Board Cable	2	Automotive General Purpose Telecommunications	0.079 in	2 mm	Gold	Push-Pull	0.079 in	2 mm	Through Hole	Glass Filled Nylon 4/6 Polyamide (PA46)	Black	0.217 in	5.5 mm	Breakaway Header	Unshrouded	UL94 V-0	0.378 in	9.6 mm	Solder	Male Pin	Phosphor Bronze	Square

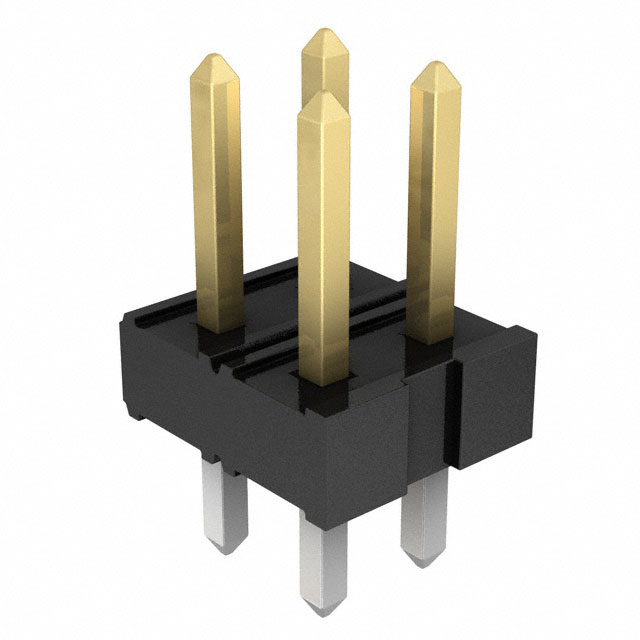

Molex 0877580450	4	15 µin	0.38 µm	1.5 mm	0.059 "	0.102 in	2.6 mm	All	Tin	Board to Board Cable	2	Automotive General Purpose Telecommunications	0.079 in	2 mm	Gold	Push-Pull	0.079 in	2 mm	Through Hole	Glass Filled Nylon 4/6 Polyamide (PA46)	Black	0.217 in	5.5 mm	Breakaway Header	Unshrouded	UL94 V-0	0.378 in	9.6 mm	Solder	Male Pin	Phosphor Bronze	Square
Molex 0877582450	24	15 µin	0.38 µm	1.5 mm	0.059 "	0.102 in	2.6 mm	All	Tin	Board to Board Cable	2	Automotive General Purpose Telecommunications	0.079 in	2 mm	Gold	Push-Pull	0.079 in	2 mm	Through Hole	Glass Filled Nylon 4/6 Polyamide (PA46)	Black	0.217 in	5.5 mm	Breakaway Header	Unshrouded	UL94 V-0	0.378 in	9.6 mm	Solder	Male Pin	Phosphor Bronze	Square
Molex 0877582077	20									Board to Board Cable	2	Automotive General Purpose Telecommunications	0.079 in	2 mm		Push-Pull	0.079 in	2 mm	Through Hole		Black	4 mm		Breakaway Header	Unshrouded				Solder	Male Pin			0.157 in
Molex 0877581250	12	15 µin	0.38 µm	1.5 mm	0.059 "	0.102 in	2.6 mm	All	Tin	Board to Board Cable	2	Automotive General Purpose Telecommunications	0.079 in	2 mm	Gold	Push-Pull	0.079 in	2 mm	Through Hole	Glass Filled Nylon 4/6 Polyamide (PA46)	Black	0.217 in	5.5 mm	Breakaway Header	Unshrouded	UL94 V-0	0.378 in	9.6 mm	Solder	Male Pin	Phosphor Bronze	Square
Molex 0877581013	10			1.5 mm	0.059 "	0.118 in	3 mm	All		Board to Board Cable	2	Automotive General Purpose Telecommunications	0.079 in	2 mm	Gold	Push-Pull	0.079 in	2 mm	Through Hole	Glass Filled Nylon Polyamide (PA)	Black			Breakaway Header	Unshrouded	UL94 V-0			Solder	Male Pin	Copper Alloy	Square		Flash
Molex 0877583416	34	15 µin	0.38 µm	1.5 mm	0.059 "	0.102 in	2.6 mm	All	Tin	Board to Board Cable	2	Automotive General Purpose Telecommunications	0.079 in	2 mm	Gold	Push-Pull	0.079 in	2 mm	Through Hole	Glass Filled Nylon 4/6 Polyamide (PA46)	Black	4 mm		Breakaway Header	Unshrouded	UL94 V-0			Solder	Male Pin	Phosphor Bronze	Square	0.157 in		8.1 mm	0.319 in
Molex 0877581450	14	15 µin	0.38 µm	1.5 mm	0.059 "	0.102 in	2.6 mm	All	Tin	Board to Board Cable	2	Automotive General Purpose Telecommunications	0.079 in	2 mm	Gold	Push-Pull	0.079 in	2 mm	Through Hole	Glass Filled Nylon 4/6 Polyamide (PA46)	Black	0.217 in	5.5 mm	Breakaway Header	Unshrouded	UL94 V-0	0.378 in	9.6 mm	Solder	Male Pin	Phosphor Bronze	Square
Molex 0877584816	48	15 µin	0.38 µm	1.5 mm	0.059 "	0.102 in	2.6 mm	All	Tin	Board to Board Cable	2	Automotive General Purpose Telecommunications	0.079 in	2 mm	Gold	Push-Pull	0.079 in	2 mm	Through Hole	Glass Filled Nylon 4/6 Polyamide (PA46)	Black	4 mm		Breakaway Header	Unshrouded	UL94 V-0			Solder	Male Pin	Phosphor Bronze	Square	0.157 in		8.1 mm	0.319 in
Molex 0877580636	6									Board to Board Cable	2	Automotive General Purpose Telecommunications	0.079 in	2 mm		Push-Pull	0.079 in	2 mm	Through Hole		Black			Breakaway Header	Unshrouded				Solder	Male Pin
