FIN1027A Series

3.3V LVDS 2-Bit High Speed Differential Driver (Alt. Pinout)

Catalog

3.3V LVDS 2-Bit High Speed Differential Driver (Alt. Pinout)

Part	Protocol	Data Rate	Mounting Type	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Package / Case [y]	Package / Case [x]	Number of Drivers/Receivers [custom]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [y]
ON Semiconductor FIN1027AMX	LVDS	600 Mbps	Surface Mount	Driver	3.6 V	3 V	8-SOIC	3.9 mm	0.154 in	2	8-SOIC	85 °C	-40 °C
ON Semiconductor FIN1027AMX	LVDS	600 Mbps	Surface Mount	Driver	3.6 V	3 V	8-SOIC	3.9 mm	0.154 in	2	8-SOIC	85 °C	-40 °C
ON Semiconductor FIN1027MX	LVDS	600 Mbps	Surface Mount	Driver	3.6 V	3 V	8-SOIC	3.9 mm	0.154 in	2	8-SOIC	85 °C	-40 °C

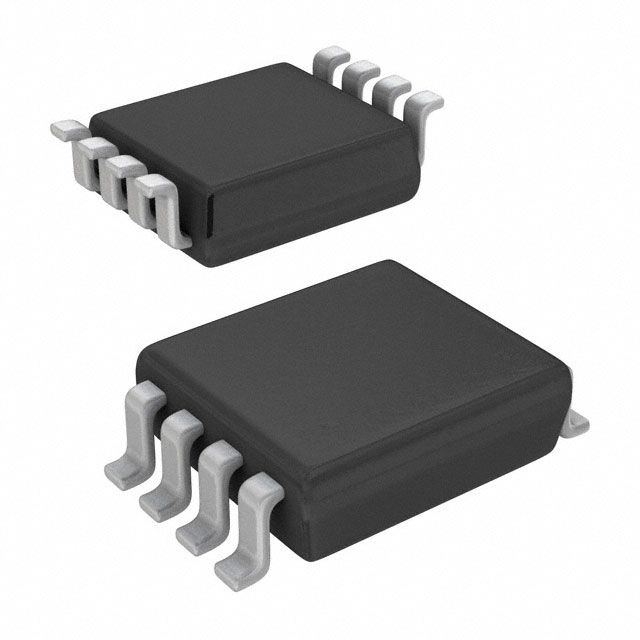

ON Semiconductor FIN1027K8X	LVDS	600 Mbps	Surface Mount	Driver	3.6 V	3 V	8-VFSOP	0.091 in		2	US8	85 °C	-40 °C	2.3 mm
ON Semiconductor FIN1027AM	LVDS	600 Mbps	Surface Mount	Driver	3.6 V	3 V	8-SOIC	3.9 mm	0.154 in	2	8-SOIC	85 °C	-40 °C
ON Semiconductor FIN1027K8X	LVDS	600 Mbps	Surface Mount	Driver	3.6 V	3 V	8-VFSOP	0.091 in		2	US8	85 °C	-40 °C	2.3 mm

Catalog

3.3V LVDS 2-Bit High Speed Differential Driver (Alt. Pinout)

Key Features

• Greater than 600Mbs Data Rate

• 3V Power Supply Operation

• 0.5ns Maximum Differential Pulse Skew

• 1.5ns Maximum Propagation Delay

• Low Power Dissipation

• Power-Off Protection

• Meets or Exceeds the TIA/EIA-644 LVDS Standard

• Flow-through Pinout Simplifies PCB Layout

Description

This dual driver is designed for high-speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology. The driver translates LVTTL signal levels to LVDS levels with a typical differential output swing of 350mV which provides low EMI at ultra-low power dissipation, even at high frequencies. This device is ideal for high-speed transfer of clock or data. The FIN1027 or FIN1027A can be paired with its companion receiver, the FIN1028, or with any other LVDS receiver.
