179838 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN HEADER VERT 2POS 3.96MM
| Part | Contact Length - Post [x] | Contact Length - Post [x] | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Contact Finish - Post | Features | Shrouding | Applications | Contact Shape | Contact Type | Fastening Type | Insulation Height | Insulation Height | Number of Rows | Contact Material | Number of Positions Loaded | Mounting Type | Number of Positions | Pitch - Mating | Pitch - Mating | Insulation Color | Style | Connector Type | Current Rating (Amps) | Termination | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

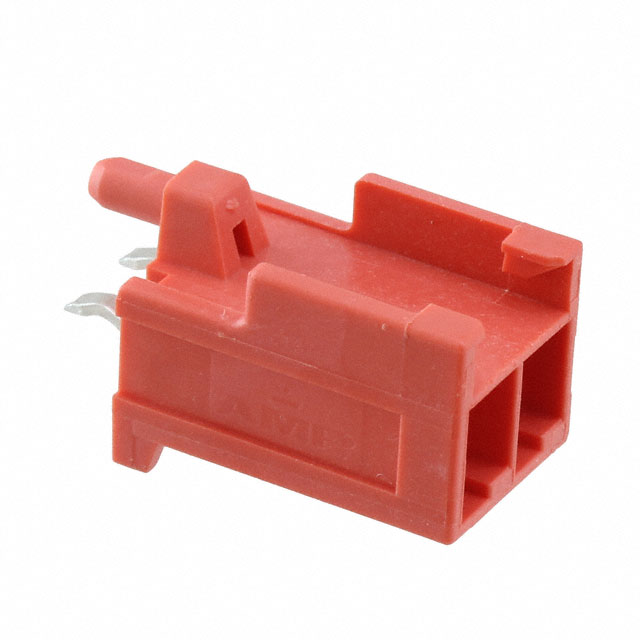

 TE Connectivity Raychem Cable Protection | 0.15 in | 3.81 mm | -30 ░C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Tin | Board Guide | Shrouded - 4 Wall | General Purpose | Rectangular | Tab | Locking Ramp | 0.575 in | 14.6 mm | 1 | Copper Alloy | All | Through Hole | 2 | 0.156 in | 3.96 mm | Red | Board to Cable/Wire | Header | Varies by Wire Gauge | Kinked Pin Solder | UL94 V-0 |

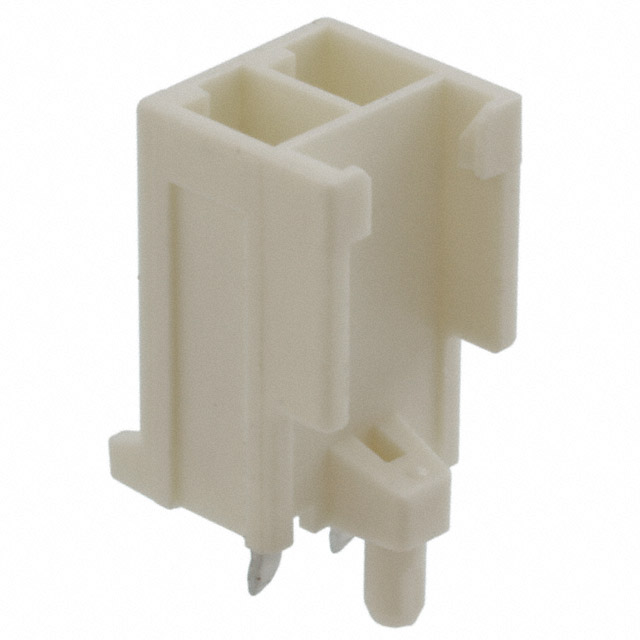

 TE Connectivity Raychem Cable Protection | 0.15 in | 3.81 mm | -30 ░C | 105 ░C | Polyamide (PA66) Nylon 6/6 | Tin | Board Guide | Shrouded - 4 Wall | General Purpose | Rectangular | Tab | Locking Ramp | 0.575 in | 14.6 mm | 1 | Copper Alloy | All | Through Hole | 2 | 0.156 in | 3.96 mm | Natural | Board to Cable/Wire | Header | Varies by Wire Gauge | Kinked Pin Solder | UL94 V-0 |
