Np0 Series Series

Sealed Industrial Pushbutton Switches

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Sealed Industrial Pushbutton Switches

Part	Switch Function	Electrical Life	Termination Style	Mechanical Life	Voltage Rating - DC	Mounting Type	Circuit	Type	Panel Cutout Dimensions [diameter]	Features	Actuator Marking	Ingress Protection	Actuator Type	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)
Littelfuse/Commercial Vehicle Products NP8S4T2W4QE	On-Mom	25000 Steps	Wire Leads	1000000 Cycles	32 V	Panel Mount Front	SPDT	Standard	12.3 mm	Epoxy Sealed Terminals	No Marking	IP68 - Dust Tight Waterproof	Button Round	Orange	85 °C	-40 °C	5 A

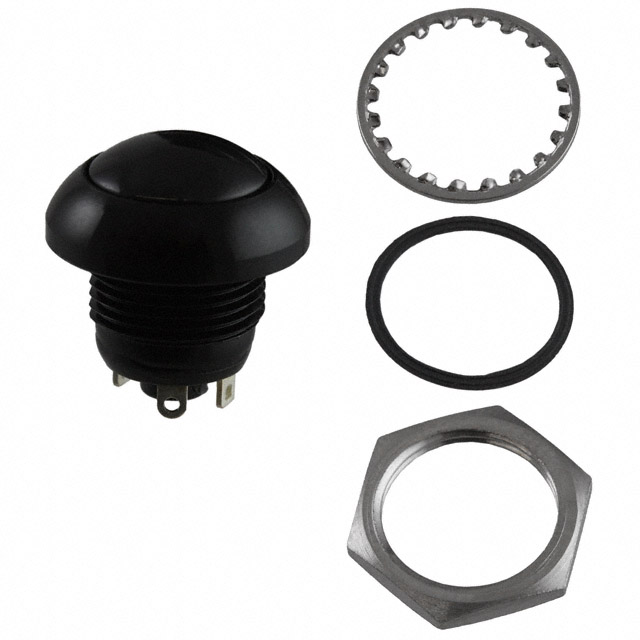

Littelfuse/Commercial Vehicle Products NP8S2D203QE	On-Mom	25000 Steps	Solder Lug	1000000 Cycles	32 V	Panel Mount Front	SPDT	Standard	12.3 mm	Epoxy Sealed Terminals	No Marking	IP68 - Dust Tight Waterproof	Button Domed Round	Black	85 °C	-40 °C	5 A

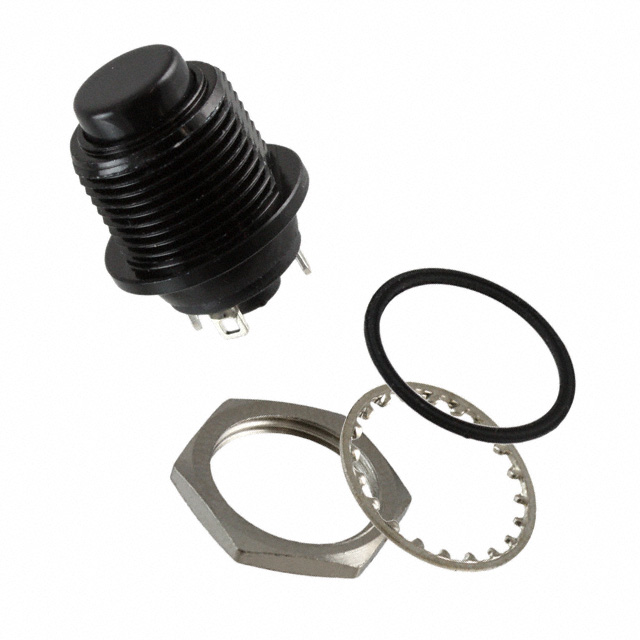

Littelfuse/Commercial Vehicle Products NP8S2R203QE	On-Mom	25000 Steps	Solder Lug	1000000 Cycles	32 V	Panel Mount Rear	SPDT	Standard	12.3 mm	Epoxy Sealed Terminals	No Marking	IP68 - Dust Tight Waterproof	Button Round	Black	85 °C	-40 °C	5 A
Littelfuse/Commercial Vehicle Products NP8S2P2W3QE	On-Mom	25000 Steps	Wire Leads	1000000 Cycles	32 V	Panel Mount Front	SPDT	Standard	12.3 mm	Epoxy Sealed Terminals	No Marking	IP68 - Dust Tight Waterproof	Button Round	Black	85 °C	-40 °C	5 A
Littelfuse/Commercial Vehicle Products NP8S2T203QE	On-Mom	25000 Steps	Solder Lug	1000000 Cycles	32 V	Panel Mount Front	SPDT	Standard	12.3 mm	Epoxy Sealed Terminals	No Marking	IP68 - Dust Tight Waterproof	Button Round	Black	85 °C	-40 °C	5 A
Littelfuse/Commercial Vehicle Products NP8S2T103QE	On-Mom	25000 Steps	Solder Lug	1000000 Cycles	32 V	Panel Mount Front	SPDT	Standard	12.3 mm	Epoxy Sealed Terminals	No Marking	IP68 - Dust Tight Waterproof	Button Round	Black	85 °C	-40 °C	5 A
Littelfuse/Commercial Vehicle Products NP8S2P203QE	On-Mom	25000 Steps	Solder Lug	1000000 Cycles	32 V	Panel Mount Front	SPDT	Standard	12.3 mm	Epoxy Sealed Terminals	No Marking	IP68 - Dust Tight Waterproof	Button Round	Black	85 °C	-40 °C	5 A

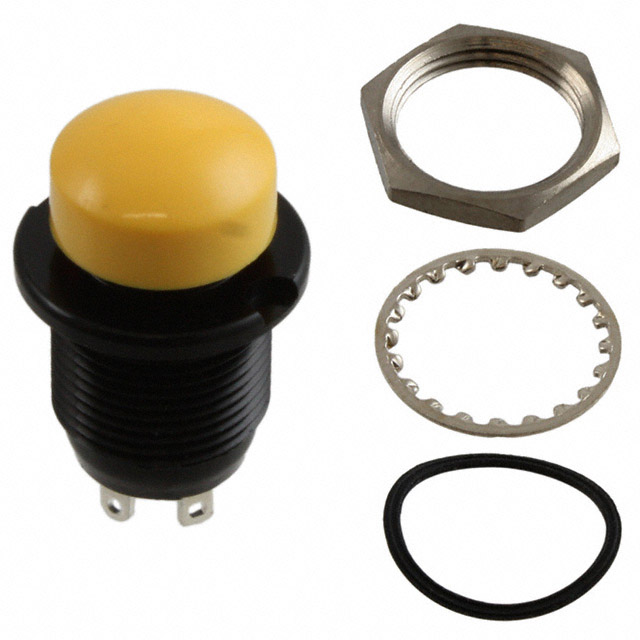

Littelfuse/Commercial Vehicle Products NP8S5L203QE	On-Mom	25000 Steps	Solder Lug	1000000 Cycles	32 V	Panel Mount Front	SPDT	Standard	12.3 mm	Epoxy Sealed Terminals	No Marking	IP68 - Dust Tight Waterproof	Button Domed Round	Yellow	85 °C	-40 °C	5 A
Littelfuse/Commercial Vehicle Products NP8S2D2W4GE	On-Mom	1000000 Cycles	Wire Leads	1000000 Cycles	5 V	Panel Mount Front	SPDT	Standard	12.3 mm	Epoxy Sealed Terminals	No Marking	IP68 - Dust Tight Waterproof	Button Domed Round	Black	85 °C	-40 °C	10 mA
Littelfuse/Commercial Vehicle Products NP8S3T203QE	On-Mom	25000 Steps	Solder Lug	1000000 Cycles	32 V	Panel Mount Front	SPDT	Standard	12.3 mm	Epoxy Sealed Terminals	No Marking	IP68 - Dust Tight Waterproof	Button Round	Red	85 °C	-40 °C	5 A

Catalog

Sealed Industrial Pushbutton Switches

Key Features

• Wirelead options available

• 1,000,000 cycles

• IP 68 sealed

Description

C&K’s NP series of sealed industrial pushbutton switches are perfect for use in transportation and industrial applications, because of their long life cycles and resistance to harsh environments. NP switches are available in a variety of housing styles, are IP68 sealed and RoHS compliant, are capable of up to a 5A resistive load – and come with wirelead options available.
