746-042 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 42POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Contact Finish	Card Thickness [Max]	Card Thickness [Min]	Termination	Gender	Contact Finish Thickness	Contact Finish Thickness	Color	Contact Material	Mounting Type	Contact Type	Read Out	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Positions/Bay/Row [custom]	Number of Rows [custom]	Card Type	Termination Rows	Number of Positions/Bay/Row	Number of Rows

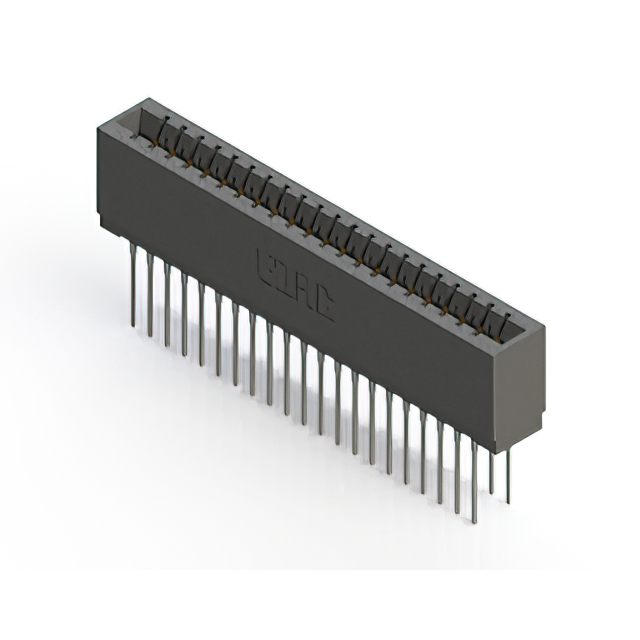

EDAC Inc. 746-042-545-201	Polyester Thermoplastic	2	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám	Black	Copper Alloy	Through Hole	Cantilever	Dual	3.18 mm	0.125 in	-40 C	105 ░C	42	21	2	Non Specified - Dual Edge
EDAC Inc. 746-042-520-206	Polyester Thermoplastic	2	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Female	30 Áin	0.76 Ám	Black	Copper Alloy	Through Hole	Cantilever	Dual	3.18 mm	0.125 in	-40 C	105 ░C	42	21	2	Non Specified - Dual Edge

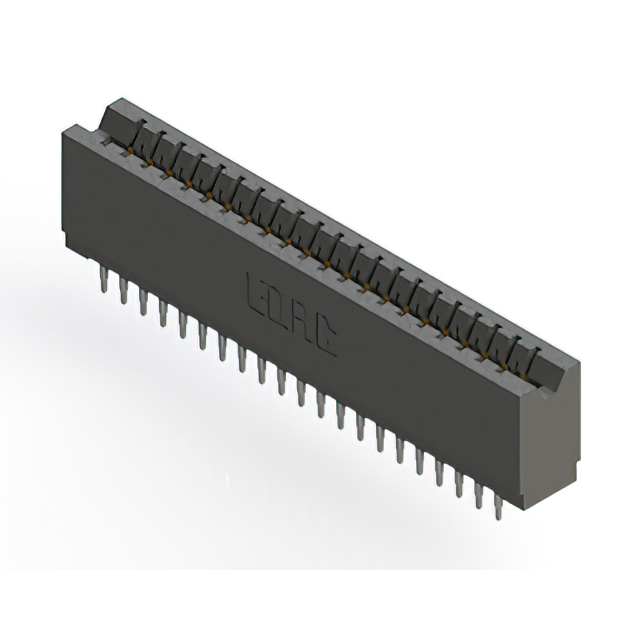

EDAC Inc. 746-042-525-206	Polyester Thermoplastic	2	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Female	30 Áin	0.76 Ám	Black	Copper Alloy	Through Hole	Cantilever	Dual	3.18 mm	0.125 in	-40 C	105 ░C	42	21	2	Non Specified - Dual Edge
EDAC Inc. 746-042-525-606	Polyester Thermoplastic	2	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Female	30 Áin	0.76 Ám	Black	Copper Alloy	Through Hole	Cantilever	Dual	3.18 mm	0.125 in	-40 C	105 ░C	42	21	2	Non Specified - Dual Edge
EDAC Inc. 746-042-540-106	Polyester Thermoplastic		Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám	Black	Copper Alloy	Through Hole	Cantilever	Single	3.18 mm	0.125 in	-40 C	105 ░C	42			Non Specified - Single Edge	1	42	1

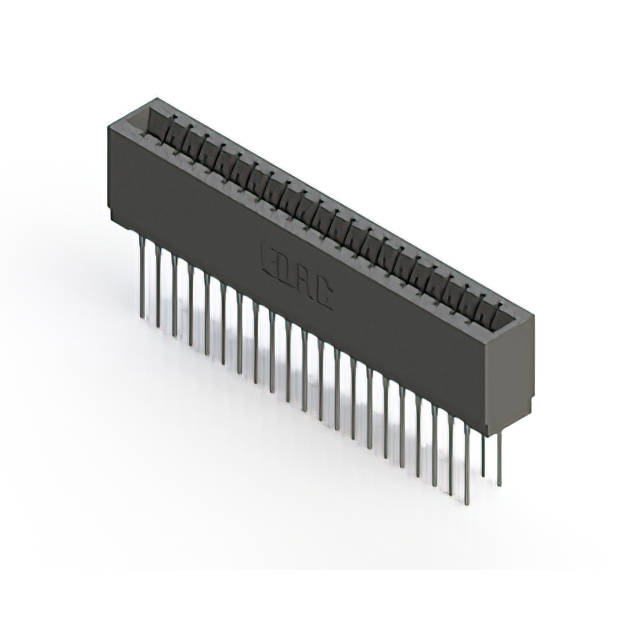

EDAC Inc. 746-042-553-601	Polyester Thermoplastic	2	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám	Black	Copper Alloy	Through Hole	Cantilever	Dual	3.18 mm	0.125 in	-40 C	105 ░C	42	21	2	Non Specified - Dual Edge

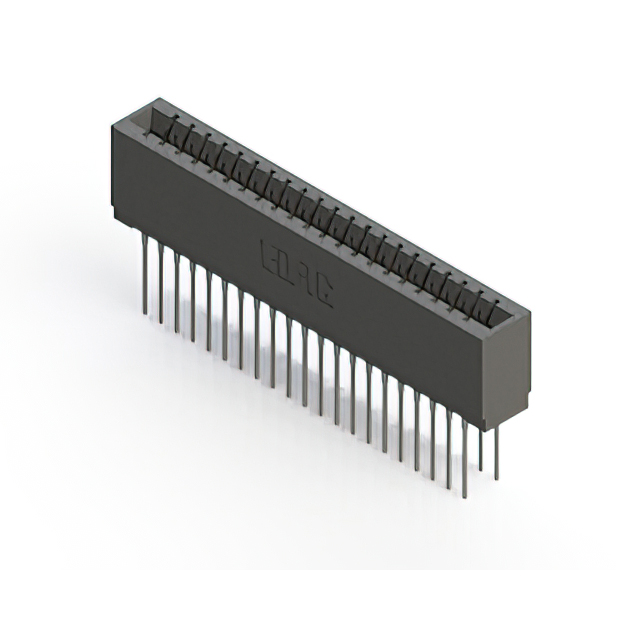

EDAC Inc. 746-042-541-201	Polyester Thermoplastic	2	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám	Black	Copper Alloy	Through Hole	Cantilever	Dual	3.18 mm	0.125 in	-40 C	105 ░C	42	21	2	Non Specified - Dual Edge
EDAC Inc. 746-042-560-201	Polyester Thermoplastic	2	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Female	30 Áin	0.76 Ám	Black	Copper Alloy	Through Hole	Cantilever Make Before Break	Dual	3.18 mm	0.125 in	-40 C	105 ░C	42	21	2	Non Specified - Dual Edge
EDAC Inc. 746-042-541-101	Polyester Thermoplastic		Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám	Black	Copper Alloy	Through Hole	Cantilever	Single	3.18 mm	0.125 in	-40 C	105 ░C	42			Non Specified - Single Edge	1	42	1
EDAC Inc. 746-042-545-106	Polyester Thermoplastic		Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Female	30 Áin	0.76 Ám	Black	Copper Alloy	Through Hole	Cantilever	Single	3.18 mm	0.125 in	-40 C	105 ░C	42			Non Specified - Single Edge	1	42	1
