MBR30100 Series

Catalog

DIODE ARR SCHOTTKY 100V ITO220AB

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io) (per Diode)	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Current - Reverse Leakage @ Vr	Package / Case	Mounting Type	Speed	Technology	Diode Configuration	Voltage - Forward (Vf) (Max) @ If
Micro Commercial Components MBR30100FCT-BP	150 °C	-65 C	30 A	100 V	ITO-220AB	500 µA	TO-220-3 Isolated Tab	Through Hole	200 mA 500 ns	Schottky	1 Pair Common Cathode
Micro Commercial Components MBR30100FCTH-BP	175 ░C	-55 C	30 A	100 V	ITO-220AB	10 µA	TO-220-3 Isolated Tab	Through Hole	200 mA 500 ns	Schottky	1 Pair Common Cathode	850 mV
Micro Commercial Components MBR30100FCT-BP	150 °C	-65 C	30 A	100 V	ITO-220AB	500 µA	TO-220-3 Isolated Tab	Through Hole	200 mA 500 ns	Schottky	1 Pair Common Cathode
Micro Commercial Components MBR30100CTH-BP	175 ░C	-55 C	30 A	100 V	TO-220AB	10 µA	TO-220-3	Through Hole	200 mA 500 ns	Schottky	1 Pair Common Cathode	850 mV

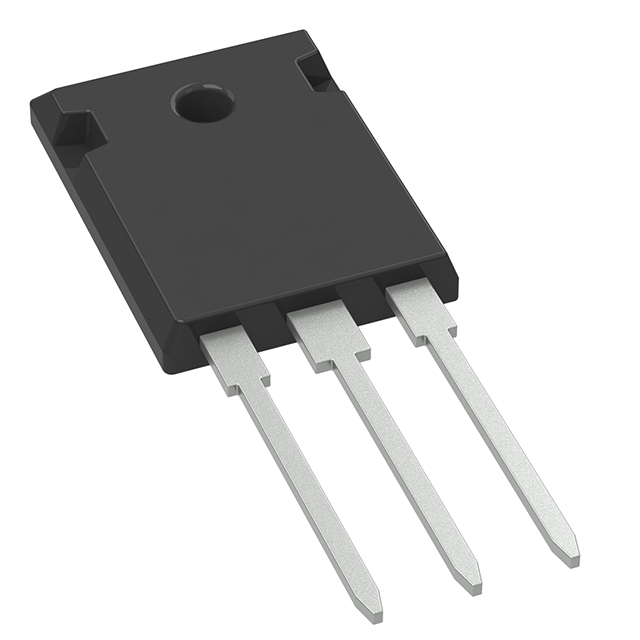

Micro Commercial Components MBR30100PT-BP	175 ░C	-55 C	30 A	100 V	TO-247-3	50 µA	TO-247-3	Through Hole	200 mA 500 ns	Schottky	1 Pair Common Cathode	800 mV
