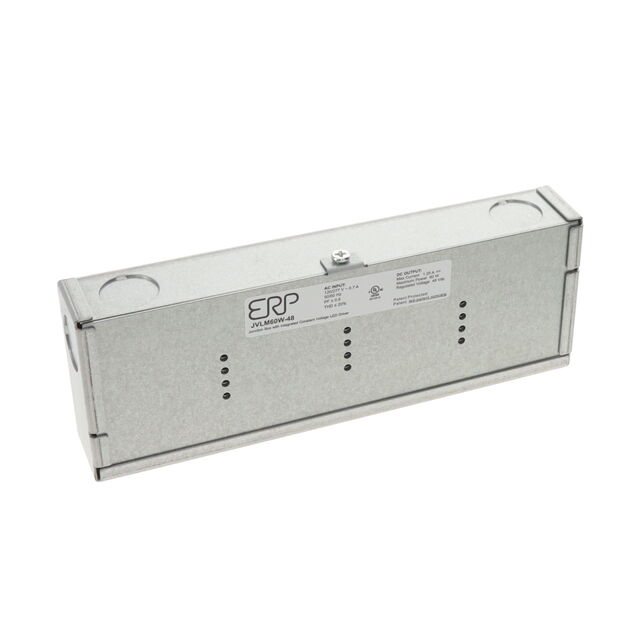

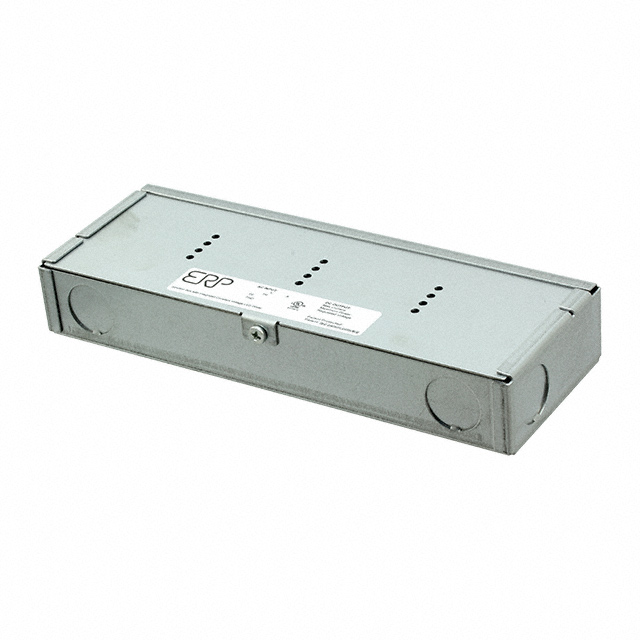

JVLM60W Series
Manufacturer: ERP Power, LLC
Beta
⌘K
60W 24V CV LED DRIVER IN JUNCTIO
| Part | Mounting Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Power (Watts) | Termination Style | Ratings | Number of Outputs | Efficiency | Topology | Voltage - Input (Min) [Min] | Voltage - Output | Approval Agency | Operating Temperature | Type | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ERP Power, LLC | Chassis Mount | 207.3 mm | 1.3 in | 75.4 mm | 8.16 " | 2.97 " | 33 mm | 277 VAC | 2.5 A | 60 W | Wire Leads | IP20 | 1 | 90 % | AC DC Converter | 120 VAC | 24 V | cULus FCC | 194 °F | Constant Voltage | |
ERP Power, LLC | Chassis Mount | 207.3 mm | 1.3 in | 75.4 mm | 8.16 " | 2.97 " | 33 mm | 277 VAC | 60 W | Wire Leads | IP20 | 1 | 90 % | AC DC Converter | 120 VAC | 12 V | cULus FCC | 194 °F | Constant Voltage | 5 A | |
 ERP Power, LLC | Chassis Mount | 207.3 mm | 1.3 in | 75.4 mm | 8.16 " | 2.97 " | 33 mm | 277 VAC | 1.25 A | 60 W | Wire Leads | IP20 | 1 | 90 % | AC DC Converter | 120 VAC | 48 V | cULus FCC | 194 °F | Constant Voltage |
