2198264 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

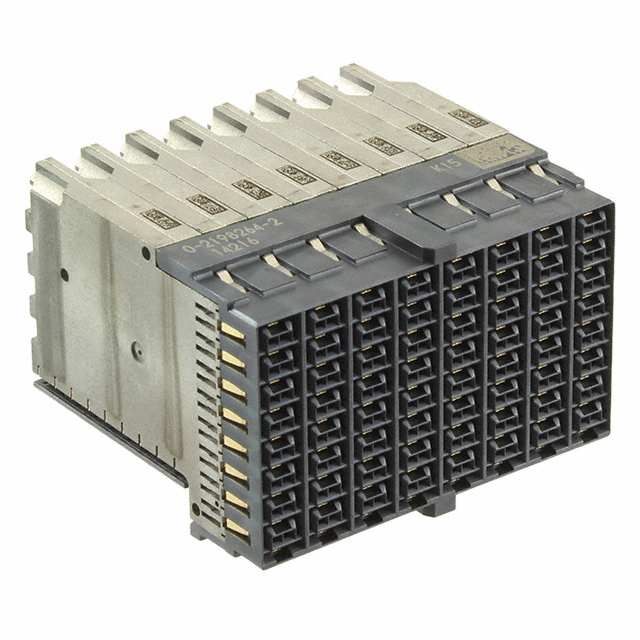

CONN RCPT DUAL BEAM 128P EDGE MT
| Part | Termination | Connector Type | Number of Rows | Current Rating (Amps) | Material Flammability Rating | Number of Columns | Number of Positions Loaded | Mounting Type | Voltage Rating | Contact Layout, Typical | Number of Positions | Color | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Connector Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Press-Fit | Blade Sockets Female Sockets Receptacle | 8 | 0.5 A | UL94 V-0 | 6 | All | Board Edge Right Angle Through Hole | 250 VDC | 48 Differential Pairs | 128 | Black | 0.177 in | 4.5 mm | 85 °C | -55 °C | Backplane |
