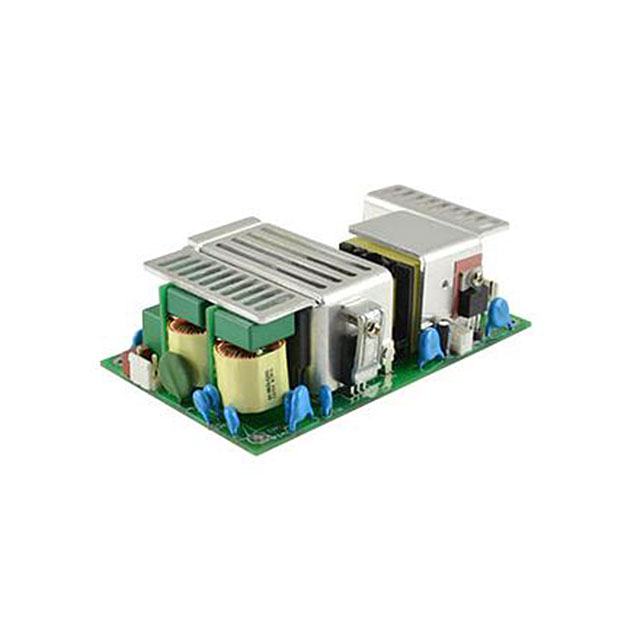

VOF-185 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 36V 111W
| Part | Current - Output 1 | Mounting Type | Efficiency | Type | Number of Outputs | Power (Watts) | Power (Watts) | Voltage - Isolation | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Standard Number | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Applications | Voltage - Output 1 [custom] | Approval Agency | Features | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 3.08 A | Chassis Mount | 85 % | Open Frame | 1 | 185 W | 111 W | 3000 V | 277 VAC | 90 VAC | 70 °C | -20 °C | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 C22.2 No. 60950-1 | 35 mm | 127 mm | 5 " | 3 " | 1.38 in | 76.2 mm | ITE (Commercial) | 36 V | CB Scheme CSA EN FCC IEC SIQ TUV UL | Adjustable Output PFC Standby Output Universal Input | |
CUI Inc. | 4.63 A | Chassis Mount | 85 % | Open Frame | 1 | 185 W | 111 W | 3000 V | 277 VAC | 90 VAC | 70 °C | -20 °C | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 C22.2 No. 60950-1 | 35 mm | 127 mm | 5 " | 3 " | 1.38 in | 76.2 mm | ITE (Commercial) | CB Scheme CSA EN FCC IEC SIQ TUV UL | Adjustable Output PFC Standby Output Universal Input | 24 V | |
CUI Inc. | 9.25 A | Chassis Mount | 85 % | Open Frame | 1 | 185 W | 111 W | 3000 V | 277 VAC | 90 VAC | 70 °C | -20 °C | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 C22.2 No. 60950-1 | 35 mm | 127 mm | 5 " | 3 " | 1.38 in | 76.2 mm | ITE (Commercial) | CB Scheme CSA EN FCC IEC SIQ TUV UL | Adjustable Output PFC Standby Output Universal Input | 12 V | |
CUI Inc. | 7.4 A | Chassis Mount | 85 % | Open Frame | 1 | 185 W | 111 W | 3000 V | 277 VAC | 90 VAC | 70 °C | -20 °C | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 C22.2 No. 60950-1 | 35 mm | 127 mm | 5 " | 3 " | 1.38 in | 76.2 mm | ITE (Commercial) | CB Scheme CSA EN FCC IEC SIQ TUV UL | Adjustable Output PFC Standby Output Universal Input | 15 V | |
CUI Inc. | 2.31 A | Chassis Mount | 85 % | Open Frame | 1 | 185 W | 111 W | 3000 V | 277 VAC | 90 VAC | 70 °C | -20 °C | 55024 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 C22.2 No. 60950-1 | 35 mm | 127 mm | 5 " | 3 " | 1.38 in | 76.2 mm | ITE (Commercial) | CB Scheme CSA EN FCC IEC SIQ TUV UL | Adjustable Output PFC Standby Output Universal Input | 48 V |
