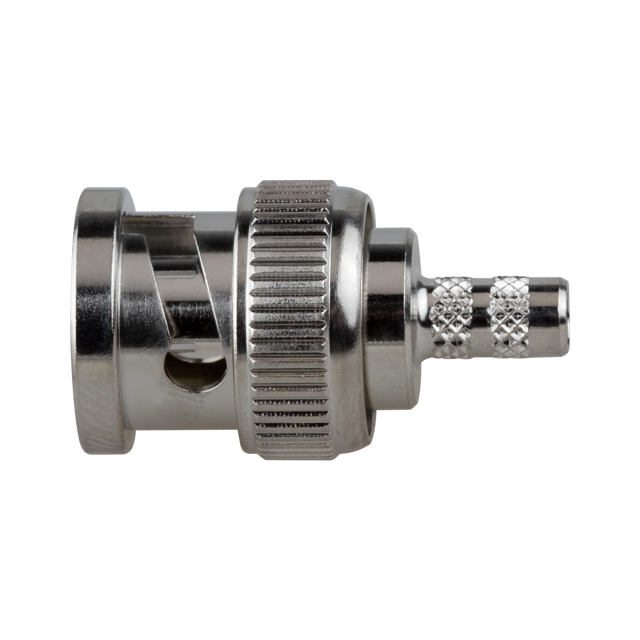

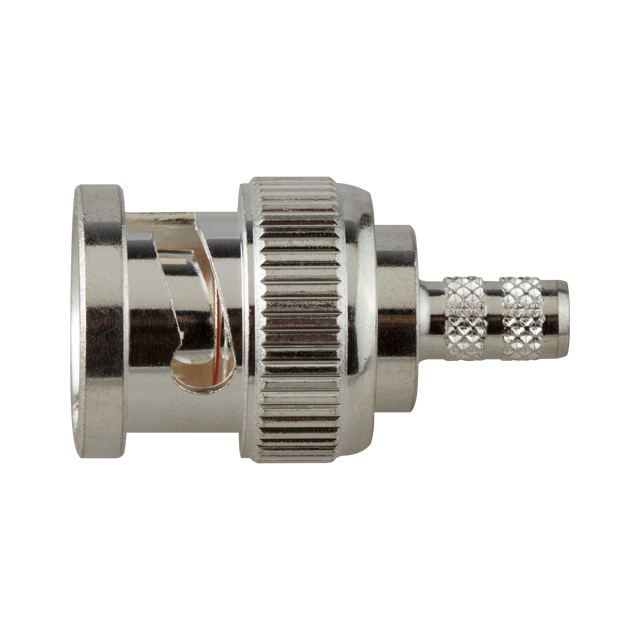

RFB-1106 Series
Manufacturer: RF Industries
Beta
⌘K
BNC MALE CRIMP; 50 OHMS
| Part | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Center Contact Plating | Body Material | Housing Color | Frequency - Max [Max] | Contact Termination | Center Contact Material | Mounting Type | Connector Type | Connector Style | Impedance | Fastening Type | Cable Group | Number of Ports | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | Nickel | -65 ░C | 85 °C | 500 V | Polytetrafluoroethylene (PTFE) | Gold | Brass | Silver | 4 GHz | Crimp | Brass | Free Hanging (In-Line) | Plug Male Pin | BNC | 50 Ohms | Bayonet Lock | Alpha 9848 LMR-200 MSI-22 | 1 | Crimp |
 RF Industries | Silver | -65 ░C | 85 °C | 500 V | Polytetrafluoroethylene (PTFE) | Gold | Brass | Silver | 4 GHz | Crimp | Brass | Free Hanging (In-Line) | Plug Male Pin | BNC | 50 Ohms | Bayonet Lock | 141 141A 58A 58C 8262 9201 9203 9310 9311 Belden 8240 RG-58 | 1 | Crimp |
