ANM80 Series
Manufacturer: OptiFuse
Beta
⌘K
FUSE AUTO 25A 80VDC BLADE MINI
| Part | Mounting Type | Response Time | Color | Breaking Capacity @ Rated Voltage | Fuse Type | Current Rating (Amps) | Package / Case | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

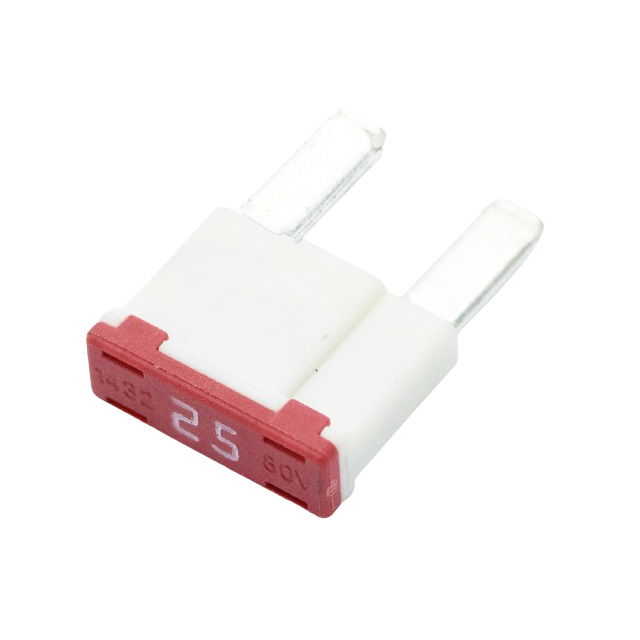

 OptiFuse | Requires Holder | Fast Blow | Clear | 1 kA | Automotive | 25 A | Blade Miniature | 0.354 in | 9 mm | 11.8 mm | 0.157 " | 4 mm | 0.465 in | 80 V |
 OptiFuse | Requires Holder | Fast Blow | Dark Blue | 1 kA | Automotive | 0.5 A | Blade Miniature | 0.354 in | 9 mm | 11.8 mm | 0.157 " | 4 mm | 0.465 in | 80 V |

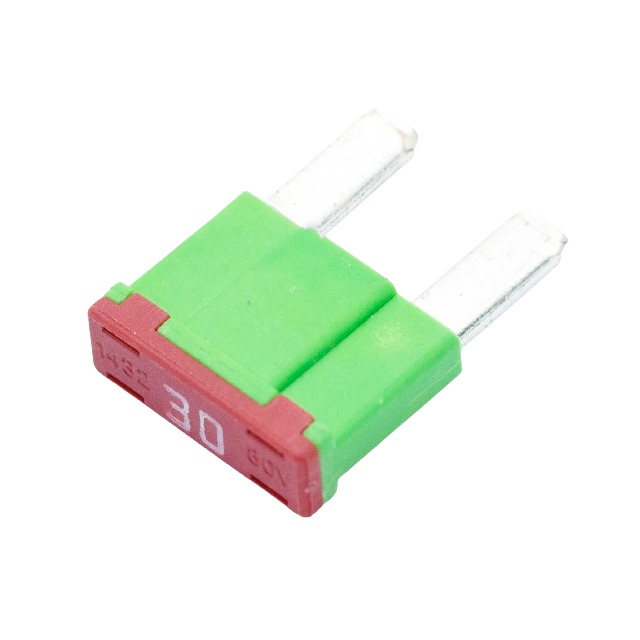

 OptiFuse | Requires Holder | Fast Blow | Green | 1 kA | Automotive | 30 A | Blade Miniature | 0.354 in | 9 mm | 11.8 mm | 0.157 " | 4 mm | 0.465 in | 80 V |

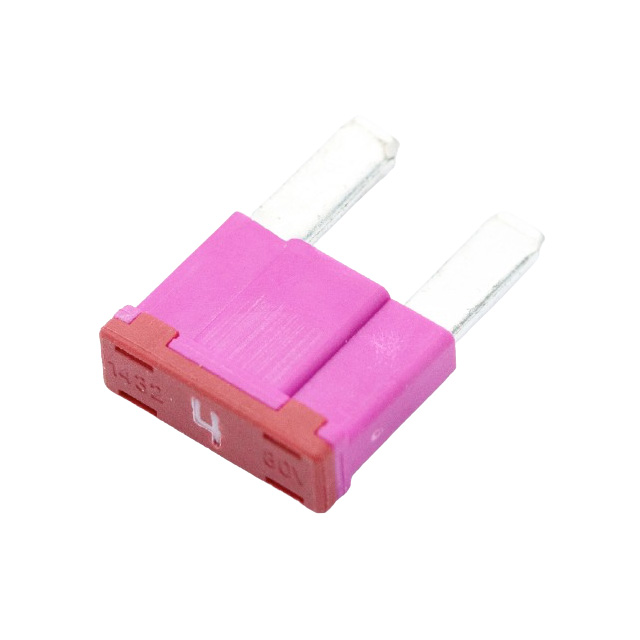

 OptiFuse | Requires Holder | Fast Blow | Pink | 1 kA | Automotive | 4 A | Blade Miniature | 0.354 in | 9 mm | 11.8 mm | 0.157 " | 4 mm | 0.465 in | 80 V |

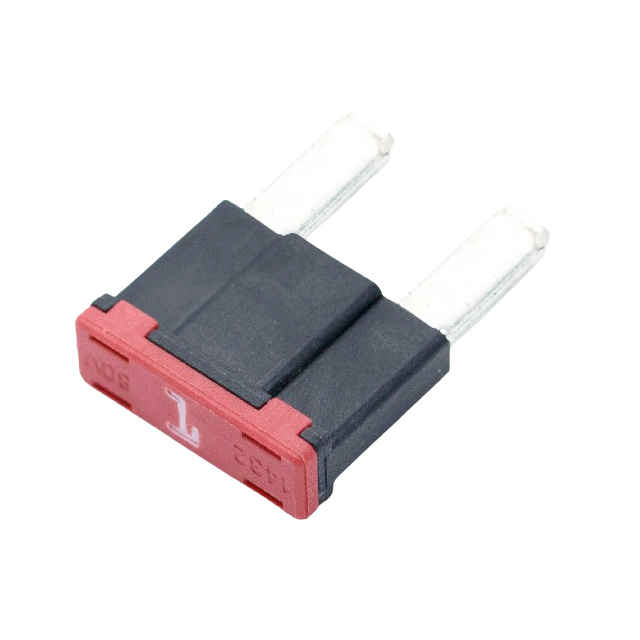

 OptiFuse | Requires Holder | Fast Blow | Black | 1 kA | Automotive | 1 A | Blade Miniature | 0.354 in | 9 mm | 11.8 mm | 0.157 " | 4 mm | 0.465 in | 80 V |
