5166C Series

Catalog

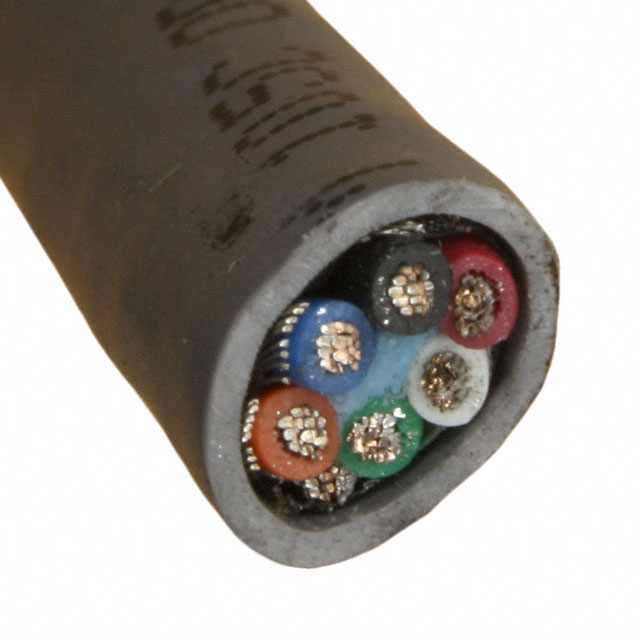

CABLE 6CON 18AWG SLATE SHLD 100'

Part	Shield Material	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Usage	Conductor Insulation	Features	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Wire Gauge	Jacket Color	Length [x]	Length [x]	Ratings	Shield Type	Number of Conductors	Voltage	Length	Length
ALPHA WIRE 5166C SL005	Copper Tinned Suprashield®	70 % 100 %	0.335 in	8.51 mm	Copper Tinned	Communication Control	Poly-Vinyl Chloride (PVC)	Biological Compatibility Drain Wire Rip Cord	Multi-Conductor	16	30 AWG	0.813 mm	0.032 in	-35 °C	105 ░C	Poly-Vinyl Chloride (PVC)	18 AWG	Slate	100 ft	30.5 m	ISO 10993	Braid Foil	6	300 VDC
ALPHA WIRE 5166C SL001	Copper Tinned Suprashield®	70 % 100 %	0.335 in	8.51 mm	Copper Tinned	Communication Control	Poly-Vinyl Chloride (PVC)	Biological Compatibility Drain Wire Rip Cord	Multi-Conductor	16	30 AWG	0.813 mm	0.032 in	-35 °C	105 ░C	Poly-Vinyl Chloride (PVC)	18 AWG	Slate			ISO 10993	Braid Foil	6	300 VDC	304.8 m	1000 ft
ALPHA WIRE 5166C BK199	Copper Tinned Suprashield®	70 % 100 %	0.335 in	8.51 mm	Copper Tinned	Communication Control	Poly-Vinyl Chloride (PVC)	Biological Compatibility Drain Wire Rip Cord	Multi-Conductor	16	30 AWG	0.813 mm	0.032 in	-35 °C	105 ░C	Poly-Vinyl Chloride (PVC)	18 AWG	Black			ISO 10993	Braid Foil	6	300 VDC	304.8 m	1000 ft
ALPHA WIRE 5166C SL002	Copper Tinned Suprashield®	70 % 100 %	0.335 in	8.51 mm	Copper Tinned	Communication Control	Poly-Vinyl Chloride (PVC)	Biological Compatibility Drain Wire Rip Cord	Multi-Conductor	16	30 AWG	0.813 mm	0.032 in	-35 °C	105 ░C	Poly-Vinyl Chloride (PVC)	18 AWG	Slate			ISO 10993	Braid Foil	6	300 VDC	152.4 m	500 ft
