83351E Series
Manufacturer: Belden Inc.
Beta
⌘K

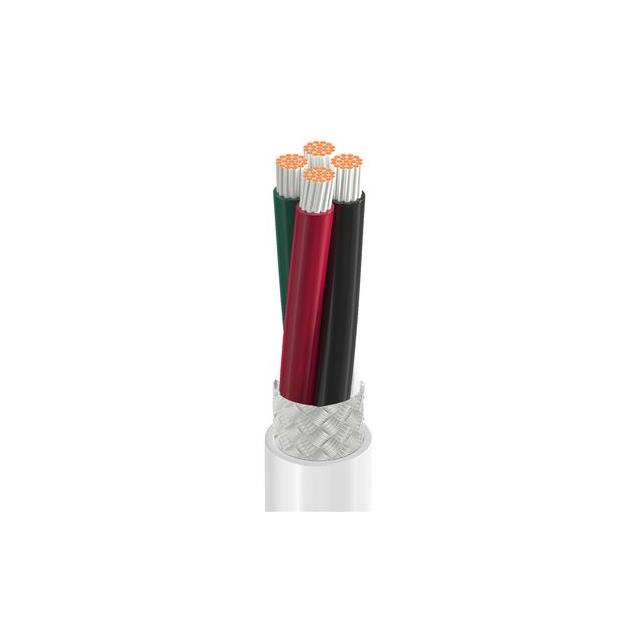

CABLE 4CON 18AWG WHT SHLD
| Part | Shield Coverage | Shield Material | Cable Type | Number of Conductors | Conductor Material | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Jacket (Insulation) Material | Shield Type | Jacket Color | Voltage | Qualification | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % | Copper Silver Coated | Multi-Conductor | 4 | Copper Silver Coated | 18 AWG | 30 AWG | 19 | Tetrafluoroethylene (TFE) | Tetrafluoroethylene (TFE) | Braid | White | 600 V | MIL-W-16878/4 Type E | -65 ░C | 200 °C | 5.26 mm | 0.207 in | 100 ft | 30.5 m | 0.279 mm | 0.011 " | ||
 Belden Inc. | 85 % | Copper Silver Coated | Multi-Conductor | 4 | Copper Silver Coated | 18 AWG | 30 AWG | 19 | Tetrafluoroethylene (TFE) | Tetrafluoroethylene (TFE) | Braid | White | 600 V | MIL-W-16878/4 Type E | -65 ░C | 200 °C | 5.26 mm | 0.207 in | 0.279 mm | 0.011 " | 152.4 m | 500 ft |
