XC6216 Series

Catalog

IC REG LINEAR 7.9V 150MA SOT25

...

Part	Current - Quiescent (Iq)	Output Configuration	Control Features	Voltage Dropout (Max) [Max]	PSRR	Supplier Device Package	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed) [Min]	Current - Output	Number of Regulators	Mounting Type	Package / Case	Voltage - Output (Min/Fixed)	Voltage Dropout (Max)
Torex Semiconductor Ltd XC6216B792MR-G	9 µA	Positive	Enable	1.15 V	30 dB	SOT-25	Over Current Over Temperature	85 C	-40 ¯C	28 V	7.9 V	150 mA	1	Surface Mount	SC-74A SOT-753
Torex Semiconductor Ltd XC6216B982PR-G	9 µA	Positive	Enable	0.95 V	30 dB	SOT-89-5	Over Current Over Temperature	85 C	-40 ¯C	28 V		150 mA	1	Surface Mount	SOT-89-5/6	9.8 V
Torex Semiconductor Ltd XC6216BA02PR-G	9 µA	Positive	Enable	0.95 V	30 dB	SOT-89-5	Over Current Over Temperature	85 C	-40 ¯C	28 V		150 mA	1	Surface Mount	SOT-89-5/6	10 V
Torex Semiconductor Ltd XC6216D522MR-G	9 µA	Positive			30 dB	SOT-23	Over Current Over Temperature	85 C	-40 ¯C	28 V		150 mA	1	Surface Mount	SC-59 SOT-23-3 TO-236-3	5.2 V	1.3 V
Torex Semiconductor Ltd XC6216B702ER-G	9 µA	Positive	Enable	1.15 V	30 dB	6-USPC (1.8x2)	Over Current Over Temperature	85 C	-40 ¯C	28 V		150 mA	1	Surface Mount	6-UFDFN Exposed Pad	7 V

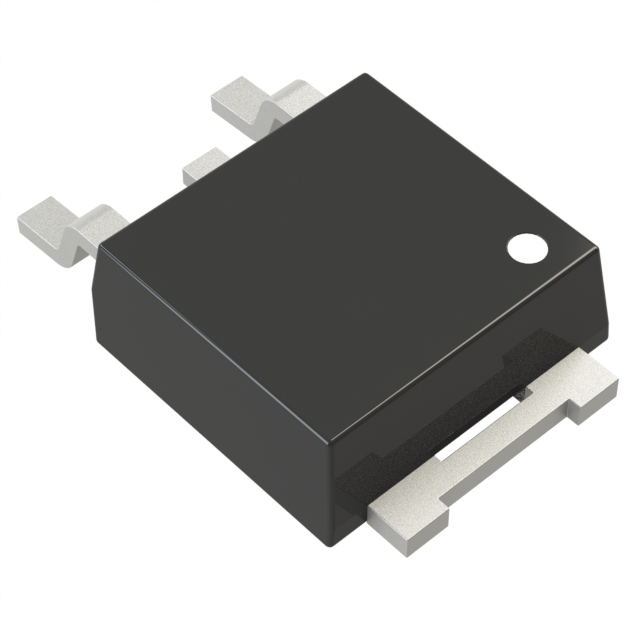

Torex Semiconductor Ltd XC6216D232JR-G	9 µA	Positive		2.2 V	30 dB	TO-252	Over Current Over Temperature	85 C	-40 ¯C	28 V		100 mA	1	Surface Mount	DPAK (2 Leads + Tab) SC-63 TO-252-3	2.3 V
Torex Semiconductor Ltd XC6216D672PR-G	9 µA	Positive		1.15 V	30 dB		Over Current Over Temperature	85 C	-40 ¯C	28 V		150 mA	1	Surface Mount	TO-243AA	6.7 V
Torex Semiconductor Ltd XC6216D432JR-G	9 µA	Positive			30 dB	TO-252	Over Current Over Temperature	85 C	-40 ¯C	28 V	4.3 V	150 mA	1	Surface Mount	DPAK (2 Leads + Tab) SC-63 TO-252-3		1.5 V
Torex Semiconductor Ltd XC6216B462PR-G	9 µA	Positive	Enable		30 dB	SOT-89-5	Over Current Over Temperature	85 C	-40 ¯C	28 V		150 mA	1	Surface Mount	SOT-89-5/6	4.6 V	1.5 V

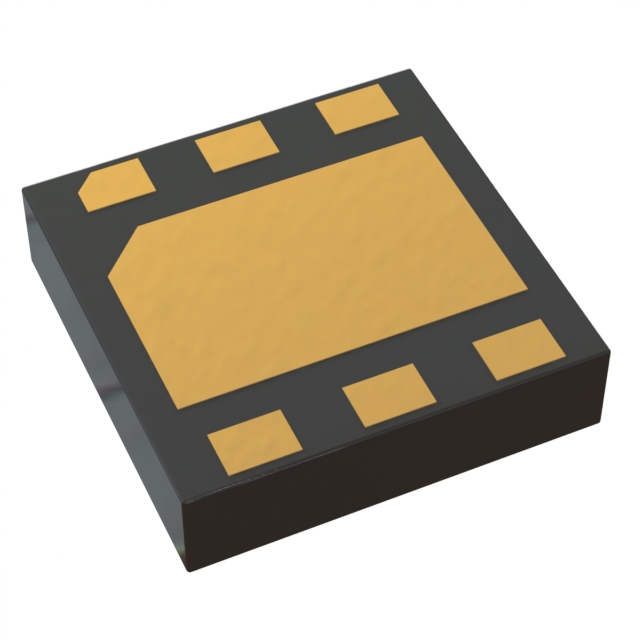

Torex Semiconductor Ltd XC6216B4128R-G	9 µA	Positive	Enable		30 dB	USP-6B06	Over Current Over Temperature	85 C	-40 ¯C	28 V		150 mA	1	Surface Mount	6-XFDFN Exposed Pad	4.1 V	1.5 V
