MAXM15066 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
4.5V TO 60V, 300MA STEP-DOWN USLIC POWER MODULE
| Part | Mounting Type | Voltage - Input (Max) [Max] | Voltage - Output 1 | Package / Case | Type | Applications | Current - Output (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Supplier Device Package | Features | Voltage - Input (Min) [Min] | Outputs and Type | Outputs and Type | Board Type | Supplied Contents | Voltage - Output | Main Purpose | Frequency - Switching | Regulator Topology | Current - Output | Voltage - Input [Min] | Voltage - Input [Max] | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | Surface Mount | 60 V | 5 V | 10-SMD Module | Non-Isolated PoL Module | ITE (Commercial) | 0.3 A | 0.12 inches | 2.6 mm | 0.06 " | 0.1 in | 1.5 mm | 3 mm | 125 °C | -40 C | 1 | 10-eMGA (3x2.6) | OCP OTP | 4.5 V | |||||||||||||

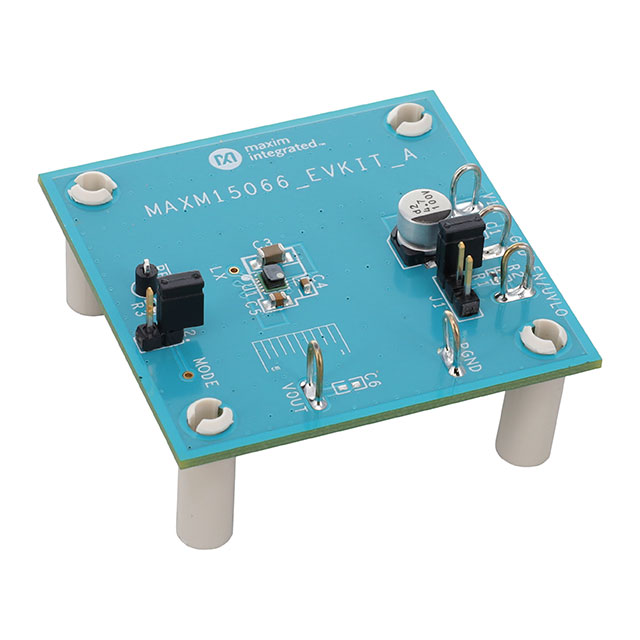

 Analog Devices Inc./Maxim Integrated | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | Board(s) | 5 V | DC/DC Step Down | 550 kHz | Buck | 300 mA | 8.5 V | 60 V | Board(s) | MAXM15066 | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated | Surface Mount | 60 V | 5 V | 10-SMD Module | Non-Isolated PoL Module | ITE (Commercial) | 0.3 A | 0.12 inches | 2.6 mm | 0.06 " | 0.1 in | 1.5 mm | 3 mm | 125 °C | -40 C | 1 | 10-eMGA (3x2.6) | OCP OTP | 4.5 V |
