837-017 Series
Manufacturer: EDAC Inc.
Beta
⌘K

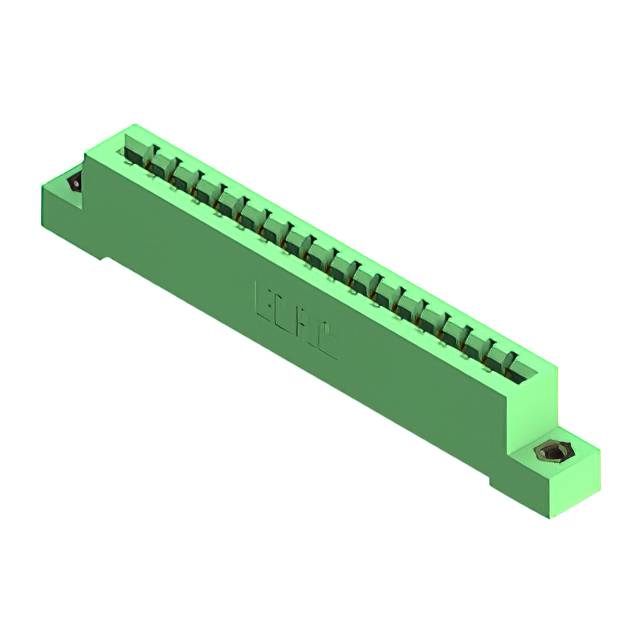

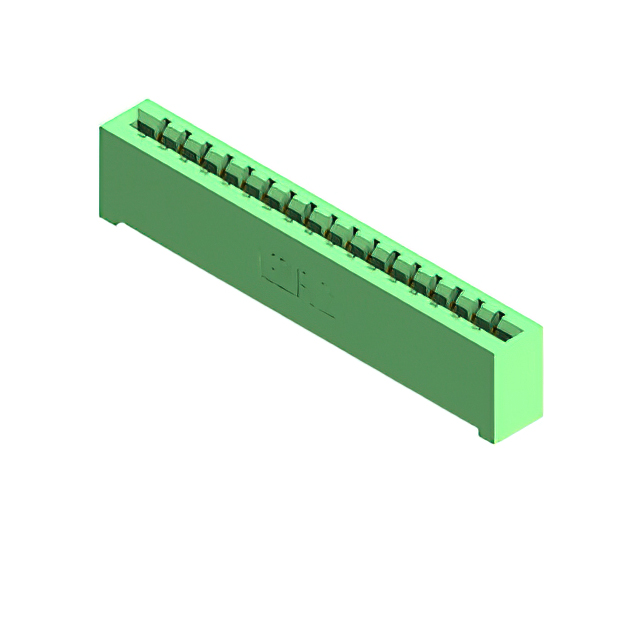

CONN EDGE SGL FMALE 17POS 0.156
| Part | Material - Insulation | Termination Rows | Contact Material | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Color | Gender | Mounting Type | Read Out | Pitch | Pitch | Termination | Card Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row [custom] | Contact Type | Card Thickness [Max] | Card Thickness [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | Gold | 0.25 Ám | 10 Áin | 1 | Green | Female | Through Hole | Single | 3.96 mm | 0.156 in | Solder | Non Specified - Single Edge | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 125 °C | -40 C | 17 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | Gold | 0.25 Ám | 10 Áin | 1 | Green | Female | Through Hole | Single | 3.96 mm | 0.156 in | Solder | Non Specified - Single Edge | 125 °C | -40 C | 17 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | Gold | 0.25 Ám | 10 Áin | 1 | Green | Female | Through Hole | Single | 3.96 mm | 0.156 in | Solder | Non Specified - Single Edge | 125 °C | -40 C | 17 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | Gold | 0.25 Ám | 10 Áin | 1 | Green | Female | Right Angle Through Hole | Single | 3.96 mm | 0.156 in | Solder | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | 125 °C | -40 C | 17 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | Gold | 0.25 Ám | 10 Áin | 1 | Green | Female | Through Hole | Single | 3.96 mm | 0.156 in | Solder | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | 125 °C | -40 C | 17 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | Gold | 0.25 Ám | 10 Áin | 1 | Green | Female | Through Hole | Single | 3.96 mm | 0.156 in | Solder | Non Specified - Single Edge | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 125 °C | -40 C | 17 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | Gold | 0.25 Ám | 10 Áin | 1 | Green | Female | Through Hole | Single | 3.96 mm | 0.156 in | Solder | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | 125 °C | -40 C | 17 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | Gold | 0.25 Ám | 10 Áin | 1 | Green | Female | Through Hole | Single | 3.96 mm | 0.156 in | Wire Wrap | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | 125 °C | -40 C | 17 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | Gold | 0.25 Ám | 10 Áin | 1 | Green | Female | Through Hole | Single | 3.96 mm | 0.156 in | Solder | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | 125 °C | -40 C | 17 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | Gold | 0.25 Ám | 10 Áin | 1 | Green | Female | Through Hole | Single | 3.96 mm | 0.156 in | Wire Wrap | Non Specified - Single Edge | 125 °C | -40 C | 17 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
