NRVFES6 Series

Ultrafast Rectifier

Catalog

Ultrafast Rectifier

Part	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Speed	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Technology	Mounting Type	Qualification	Grade
ON Semiconductor FES6J	3-PowerDFN TO-277	600 V	175 ░C	-55 C	25 ns	6 A	2 µA	45 pF	200 mA 500 ns	2.2 V	TO-277-3	Standard	Surface Mount
ON Semiconductor FES6D	3-PowerDFN TO-277	200 V	175 ░C	-55 C	45 ns	6 A	2 µA	60 pF	200 mA 500 ns	1.05 V	TO-277-3	Standard	Surface Mount	AEC-Q101	Automotive
ON Semiconductor NRVFES6G	3-PowerDFN TO-277	400 V	175 ░C	-55 C	45 ns	6 A	2 µA	60 pF	200 mA 500 ns		TO-277-3	Standard	Surface Mount	AEC-Q101	Automotive
ON Semiconductor FES6G	3-PowerDFN TO-277	400 V	175 ░C	-55 C	25 ns	6 A	2 µA	60 pF	200 mA 500 ns	1.2 V	TO-277-3	Standard	Surface Mount

Ultrafast Rectifier

• Very Low Profile : Typical Height of 1.1mm

• Ultrafast Recovery Time

• Low Forward Voltage Drop

• Low Thermal Resistance

• Very Stable Operation at Industrial Temperature, 150c

• RoHS Compliant Green Mold Compound as per IEC61249

• Lead Free in Compliance with EU RoHS 2011/65/EU Directive

• NRV Prefix for Automotive and Other Applications RequiringUnique Site and Control Change Requirements; AEC−Q101Qualified and PPAP Capable

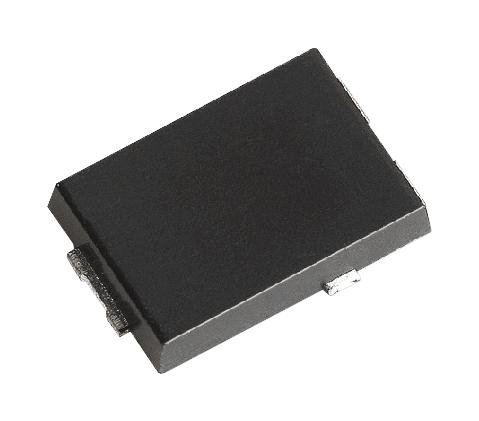

6A, 400V Surface Mount Ultrafast Rectifier
