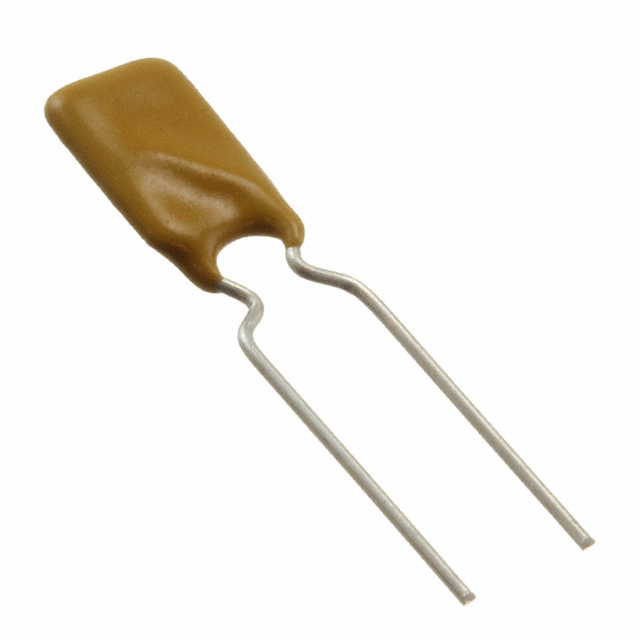

0ZRG Series

Catalog

RESETTABLE FUSES - PPTC RESETTABLE FUSE 750MA

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Type	Current - Trip (It)	Time to Trip	Grade	Resistance - Post Trip (R1) (Max) [Max]	Package / Case	Voltage - Max [Max]	Mounting Type	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Qualification	Current - Hold (Ih) (Max) [Max]	Current - Max [Max]	Resistance - Initial (Ri) (Min) [Min]	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Resistance - Post Trip (R1) (Max) [Max] [custom]	Current - Hold (Ih) (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max]
Bel Fuse Inc. 0ZRG0075FF1E	0.449 in	11.4 mm	Polymeric	1.3 A	400 ms	Automotive	230 mOhms	Disc Radial	30 V	Through Hole	6.9 mm	0.118 "	0.272 "	3 mm	AEC-Q200	750 mA	40 A	80 mOhms	0.201 in	5.1 mm	85 °C	-40 C
Bel Fuse Inc. 0ZRG0250FF1E	0.72 in		Polymeric	5 A	40 s	Automotive		Disc Radial	30 V	Through Hole					AEC-Q200		40 A	20 mOhms	0.201 in	5.1 mm	85 °C	-40 C	11.4 mm	3 mm	0.449 "	0.118 in	70 mOhms	2.5 A	18.3 mm
Bel Fuse Inc. 0ZRG0090FF2E			Polymeric	1.8 A	1.2 s	Automotive	180 mOhms	Disc Radial	30 V	Through Hole					AEC-Q200	900 mA	40 A	70 mOhms	0.201 in	5.1 mm	85 °C	-40 C	7.4 mm	3 mm	0.291 in	0.118 in				12.2 mm	0.48 in
Bel Fuse Inc. 0ZRG0120FF1E	0.461 in	11.7 mm	Polymeric	2 A	700 ms	Automotive	140 mOhms	Disc Radial	30 V	Through Hole	6.9 mm	0.118 "	0.272 "	3 mm	AEC-Q200	1.2 A	40 A	40 mOhms	0.201 in	5.1 mm	85 °C	-40 C
Bel Fuse Inc. 0ZRG0110FF2E		14.2 mm	Polymeric	2.2 A	2.3 s	Automotive	140 mOhms	Disc Radial	30 V	Through Hole					AEC-Q200	1.1 A	40 A	50 mOhms	0.201 in	5.1 mm	85 °C	-40 C	7.4 mm	3 mm	0.291 in	0.118 in					0.559 "
Bel Fuse Inc. 0ZRG0250FF2E	0.72 in		Polymeric	5 A	40 s	Automotive		Disc Radial	30 V	Through Hole					AEC-Q200		40 A	20 mOhms	0.201 in	5.1 mm	85 °C	-40 C	11.4 mm	3 mm	0.449 "	0.118 in	70 mOhms	2.5 A	18.3 mm
Bel Fuse Inc. 0ZRG0090FF1E			Polymeric	1.8 A	1.2 s	Automotive	180 mOhms	Disc Radial	30 V	Through Hole					AEC-Q200	900 mA	40 A	70 mOhms	0.201 in	5.1 mm	85 °C	-40 C	7.4 mm	3 mm	0.291 in	0.118 in				12.2 mm	0.48 in
Bel Fuse Inc. 0ZRG0120FF2E	0.461 in	11.7 mm	Polymeric	2 A	700 ms	Automotive	140 mOhms	Disc Radial	30 V	Through Hole	6.9 mm	0.118 "	0.272 "	3 mm	AEC-Q200	1.2 A	40 A	40 mOhms	0.201 in	5.1 mm	85 °C	-40 C

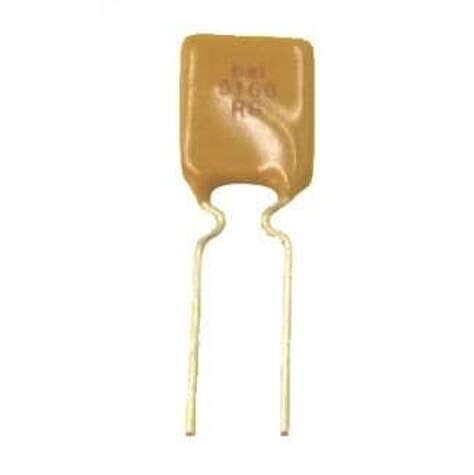

Bel Fuse Inc. 0ZRG0110FF1E		14.2 mm	Polymeric	2.2 A	2.3 s	Automotive	140 mOhms	Disc Radial	30 V	Through Hole					AEC-Q200	1.1 A	40 A	50 mOhms	0.201 in	5.1 mm	85 °C	-40 C	7.4 mm	3 mm	0.291 in	0.118 in					0.559 "
Bel Fuse Inc. 0ZRG0160FF2E		15.2 mm	Polymeric	3.2 A		Automotive	110 mOhms	Disc Radial	30 V	Through Hole					AEC-Q200		40 A	30 mOhms	0.201 in	5.1 mm	85 °C	-40 C	8.9 mm	3 mm	0.35 in	0.118 in		1.6 A			0.598 in
