R30B Series

Catalog

WIRE, WRAPPING WIRE, PVDF, BLACK, 30 AWG, 1000 FT

Part	Operating Temperature	Conductor Material	Wire Gauge	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Length	Length	Ratings	Conductor Diameter [diameter]	Conductor Diameter [diameter]	Conductor Plating	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Jonard Tools R30BLK-1000	105 C	Copper Bare	30 AWG	Polyvinylidene Fluoride (PVDF)	0.5 mm	0.019 in	Black	304.8 m	1000 ft	UL Style 1423 VW-1	0.01 in	0.25 mm	Silver
Jonard Tools R30B-1000	105 C	Copper Bare	30 AWG	Polyvinylidene Fluoride (PVDF)	0.5 mm	0.019 in	Blue	304.8 m	1000 ft	UL Style 1423 VW-1	0.01 in	0.25 mm	Silver

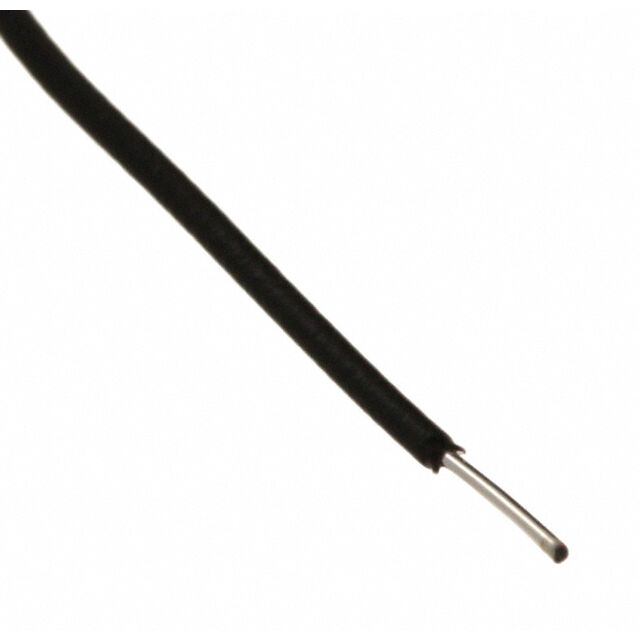

Jonard Tools R30BLK-0100	105 C	Copper Bare	30 AWG	Polyvinylidene Fluoride (PVDF)	0.5 mm	0.019 in	Black	30.5 m	100 '	UL Style 1423 VW-1	0.01 in	0.25 mm	Silver	0.09 mm	0.004 in
Jonard Tools R30B-0100	105 C	Copper Bare	30 AWG	Polyvinylidene Fluoride (PVDF)	0.5 mm	0.019 in	Blue	30.5 m	100 '	UL Style 1423 VW-1	0.01 in	0.25 mm	Silver	0.09 mm	0.004 in
