9080-9513 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

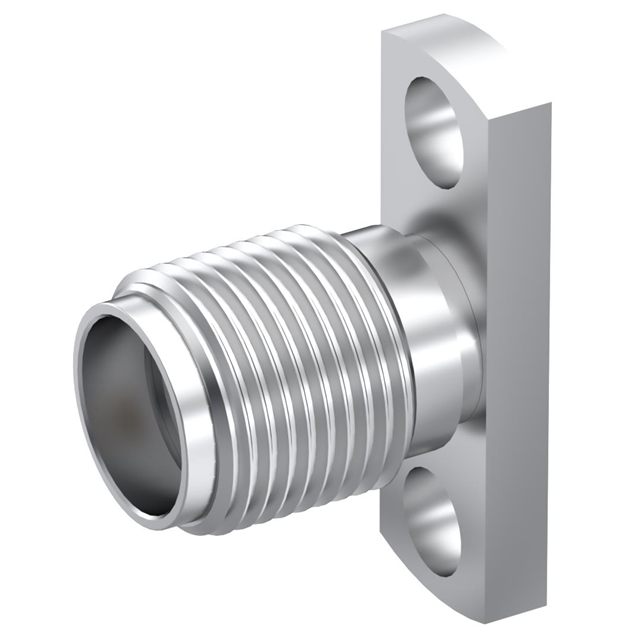

SMA / STRAIGHT JACK FEMALE PASSI
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Plating | Voltage Rating | Dielectric Material | Mating Cycles | Connector Type | Shield Termination | Impedance | Contact Termination | Housing Color | Center Contact Material | Mounting Type | Frequency - Max [Max] | Mounting Feature | Fastening Type | Connector Style | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Stainless Steel | Gold | 335 V | Polytetrafluoroethylene (PTFE) | 500 | Female Socket Jack | Screw | 50 Ohms | Compression | Silver | Beryllium Copper | Panel Mount | 26 GHz | Flange | Threaded | SMA | 1 |
 Radiall USA, Inc. | -65 ░C | 165 °C | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | 500 | Female Socket Jack | Screw | 50 Ohms | Compression | Silver | Beryllium Copper | Panel Mount | 18 GHz | Flange | Threaded | SMA | 1 |
