83049 Series

Catalog

HOOK-UP STRND 22AWG VIOLET

Part	Length [x]	Length [x]	Cable Type	Jacket Color	Wire Gauge	Qualification	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Features	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Operating Temperature
Belden Inc. 83049 007100	100 ft	30.5 m	Hook-Up	Violet	22 AWG	MIL-W-16878/6	30 AWG	7	250 VDC	Copper Silver Coated	0.006 in	0.15 mm	UL Style 1371	High Temperature	Tetrafluoroethylene (TFE)	0.042 in	1.07 mm
Belden Inc. 83049 0101000			Hook-Up	Black	22 AWG	MIL-W-16878/6	30 AWG	7	250 VDC	Copper Silver Coated	0.006 in	0.15 mm	UL Style 1371	High Temperature	Tetrafluoroethylene (TFE)	0.042 in	1.07 mm	304.8 m	1000 ft
Belden Inc. 83049 010100	100 ft	30.5 m	Hook-Up	Black	22 AWG	MIL-W-16878/6	30 AWG	7	250 VDC	Copper Silver Coated	0.006 in	0.15 mm	UL Style 1371	High Temperature	Tetrafluoroethylene (TFE)	0.042 in	1.07 mm			200 °C
Belden Inc. 83049 001100	100 ft	30.5 m	Hook-Up	Brown	22 AWG	MIL-W-16878/6	30 AWG	7	250 VDC	Copper Silver Coated	0.006 in	0.15 mm	UL Style 1371	High Temperature	Tetrafluoroethylene (TFE)	0.042 in	1.07 mm

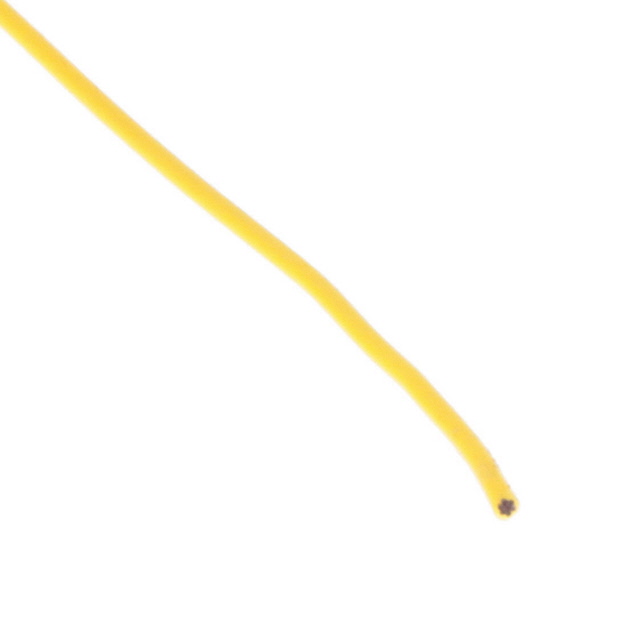

Belden Inc. 83049 004100	100 ft	30.5 m	Hook-Up	Yellow	22 AWG	MIL-W-16878/6	30 AWG	7	250 VDC	Copper Silver Coated	0.006 in	0.15 mm	UL Style 1371	High Temperature	Tetrafluoroethylene (TFE)	0.042 in	1.07 mm
Belden Inc. 83049 0021000			Hook-Up	Red	22 AWG	MIL-W-16878/6	30 AWG	7	250 VDC	Copper Silver Coated	0.006 in	0.15 mm	UL Style 1371	High Temperature	Tetrafluoroethylene (TFE)	0.042 in	1.07 mm	304.8 m	1000 ft
Belden Inc. 83049 0041000			Hook-Up	Yellow	22 AWG	MIL-W-16878/6	30 AWG	7	250 VDC	Copper Silver Coated	0.006 in	0.15 mm	UL Style 1371	High Temperature	Tetrafluoroethylene (TFE)	0.042 in	1.07 mm	304.8 m	1000 ft
Belden Inc. 83049 005100	100 ft	30.5 m	Hook-Up	Green	22 AWG	MIL-W-16878/6	30 AWG	7	250 VDC	Copper Silver Coated	0.006 in	0.15 mm	UL Style 1371	High Temperature	Tetrafluoroethylene (TFE)	0.042 in	1.07 mm
