59453 Series

Catalog

CONN FPC TOP 5POS 0.5MM R/A

Part	Current Rating (Amps)	Voltage Rating	Actuator Color	Material Flammability Rating	Cable End Type	Mounting Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Locking Feature	Connector/Contact Type	Mating Cycles	Contact Material	Housing Color	Pitch [x]	Pitch [x]	Actuator Material	Contact Finish	Flat Flex Type	Termination	Height Above Board	Height Above Board	Housing Material	FFC, FCB Thickness	Number of Positions
Amphenol ICC (FCI) 59453-052110EDHLF	400 mA	50 V	Black	UL94 V-0	Notched	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	105 ░C	-55 °C	Flip Lock	Contacts Top	10	Copper Alloy	Black	0.5 mm	0.02 in	Thermoplastic Glass Filled Halogen Free	Gold	FPC	Solder	0.88 mm	0.035 "	Thermoplastic Glass Filled Halogen Free	0.2 mm

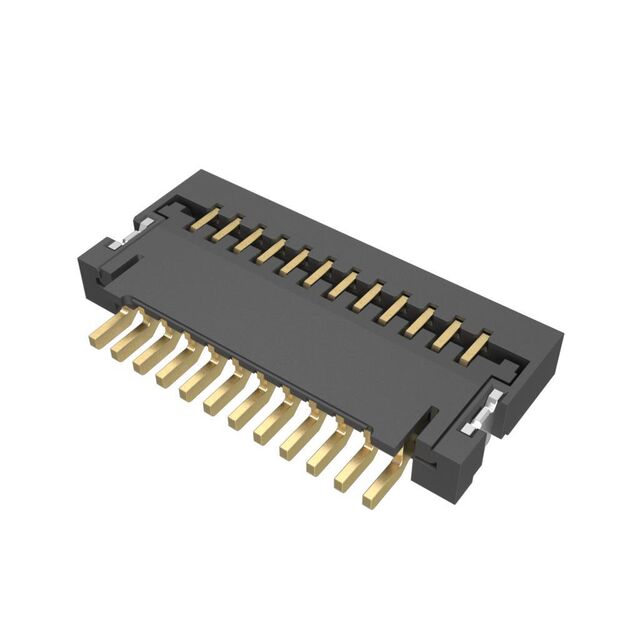

Amphenol ICC (FCI) 59453-121110EDHLF	400 mA	50 V	Black	UL94 V-0	Notched	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	105 ░C	-55 °C	Flip Lock	Contacts Bottom	10	Copper Alloy	Black	0.5 mm	0.02 in	Thermoplastic Glass Filled Halogen Free	Gold	FPC	Solder	0.88 mm	0.035 "	Thermoplastic Glass Filled Halogen Free	0.2 mm	12

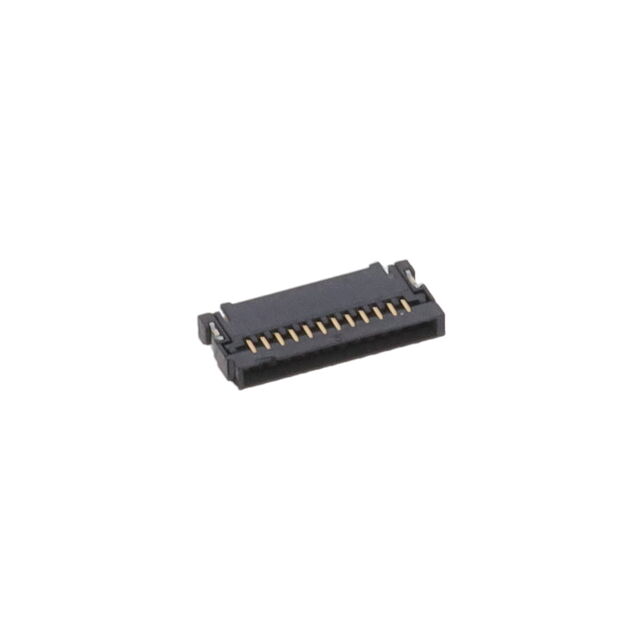

Amphenol ICC (FCI) 59453-121110ECHLF	400 mA	50 V	Black	UL94 V-0	Notched	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	105 ░C	-55 °C	Flip Lock	Contacts Bottom	10	Copper Alloy	Black	0.5 mm	0.02 in	Thermoplastic Glass Filled Halogen Free	Gold	FPC	Solder	0.88 mm	0.035 "	Thermoplastic Glass Filled Halogen Free	0.2 mm	12

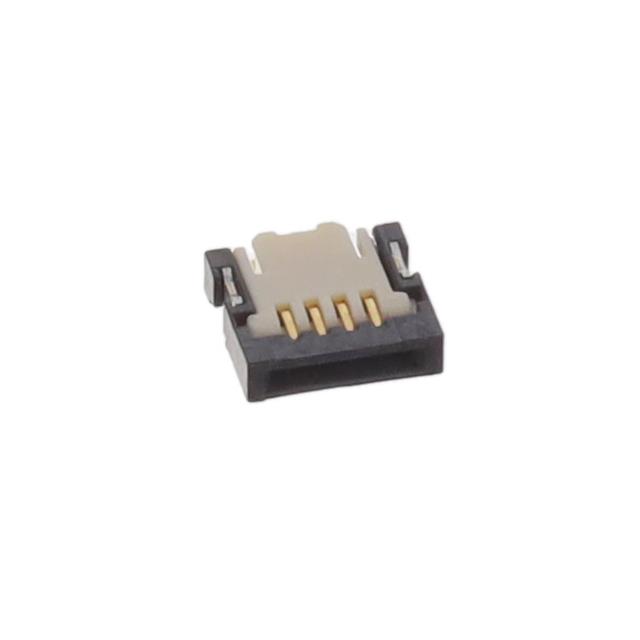

Amphenol ICC (FCI) 59453-042110ECHLF	400 mA	50 V	Black	UL94 V-0	Notched	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	105 ░C	-55 °C	Flip Lock	Contacts Top	10	Copper Alloy	Black	0.5 mm	0.02 in	Thermoplastic Glass Filled Halogen Free	Gold	FPC	Solder	0.88 mm	0.035 "	Thermoplastic Glass Filled Halogen Free	0.2 mm	4
Amphenol ICC (FCI) 59453-051110EBHLF	400 mA	50 V	Black	UL94 V-0	Notched	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	85 °C	-55 °C	Backlock Flip Lock	Contacts Bottom	10	Copper Alloy	Black	0.5 mm	0.02 in	Thermoplastic Glass Filled Halogen Free	Gold	FPC	Solder	0.88 mm	0.035 "	Thermoplastic Glass Filled Halogen Free	0.2 mm
Amphenol ICC (FCI) 59453-061110EDHLF	400 mA	50 V	Black	UL94 V-0	Notched	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	105 ░C	-55 °C	Flip Lock	Contacts Bottom	10	Copper Alloy	Black	0.5 mm	0.02 in	Thermoplastic Glass Filled Halogen Free	Gold	FPC	Solder	0.88 mm	0.035 "	Thermoplastic Glass Filled Halogen Free	0.2 mm	6

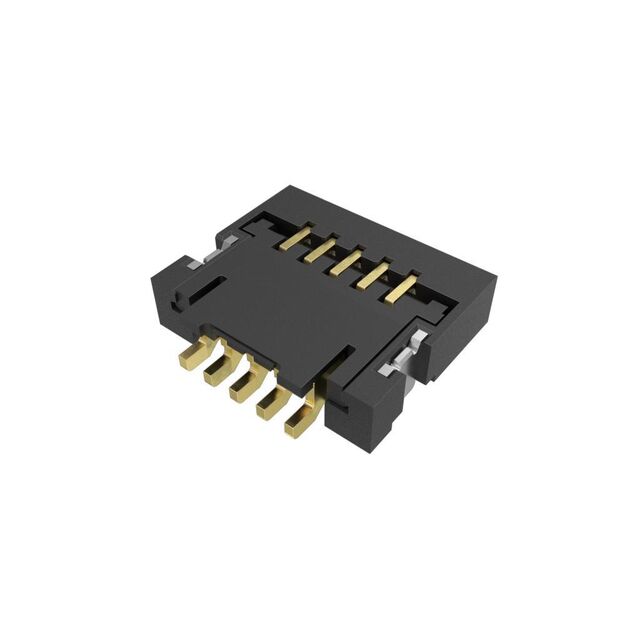

Amphenol ICC (FCI) 59453-051110ECHLF	400 mA	50 V	Black	UL94 V-0	Notched	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	105 ░C	-55 °C	Flip Lock	Contacts Bottom	10	Copper Alloy	Black	0.5 mm	0.02 in	Thermoplastic Glass Filled Halogen Free	Gold	FPC	Solder	0.88 mm	0.035 "	Thermoplastic Glass Filled Halogen Free	0.2 mm
Amphenol ICC (FCI) 59453-071110ECHLF	400 mA	50 V	Black	UL94 V-0	Notched	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	105 ░C	-55 °C	Flip Lock	Contacts Bottom	10	Copper Alloy	Black	0.5 mm	0.02 in	Thermoplastic Glass Filled Halogen Free	Gold	FPC	Solder	0.88 mm	0.035 "	Thermoplastic Glass Filled Halogen Free	0.2 mm	7
Amphenol ICC (FCI) 59453-091110ECHLF	400 mA	50 V	Black	UL94 V-0	Notched	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	105 ░C	-55 °C	Flip Lock	Contacts Bottom	10	Copper Alloy	Black	0.5 mm	0.02 in	Thermoplastic Glass Filled Halogen Free	Gold	FPC	Solder	0.88 mm	0.035 "	Thermoplastic Glass Filled Halogen Free	0.2 mm	9

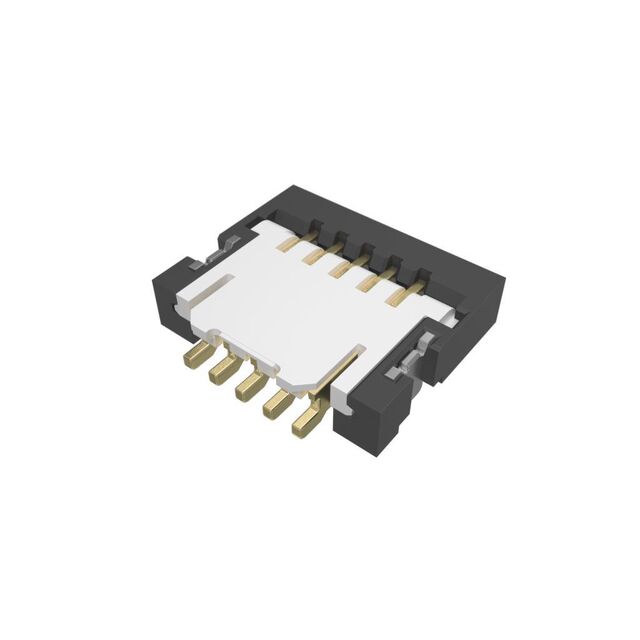

Amphenol ICC (FCI) 59453-052110ECHLF	400 mA	50 V	Black	UL94 V-0	Notched	Surface Mount Right Angle	Solder Retention Zero Insertion Force (ZIF)	105 ░C	-55 °C	Flip Lock	Contacts Top	10	Copper Alloy	Black	0.5 mm	0.02 in	Thermoplastic Glass Filled Halogen Free	Gold	FPC	Solder	0.88 mm	0.035 "	Thermoplastic Glass Filled Halogen Free	0.2 mm
