826936 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

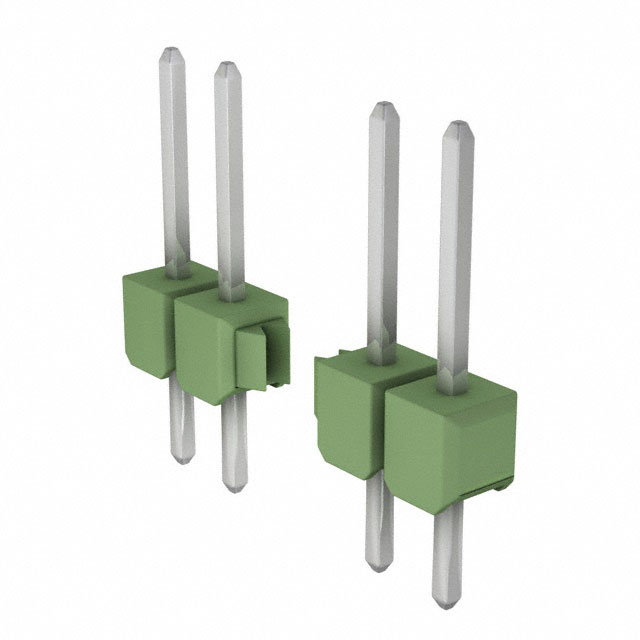

CONN HEADER VERT 5POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Number of Positions	Insulation Material	Contact Length - Mating	Contact Length - Mating	Shrouding	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Material	Contact Type	Insulation Color	Connector Type	Contact Finish - Post	Material Flammability Rating	Style	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Current Rating (Amps)	Number of Positions Loaded
TE Connectivity AMP Connectors 826936-5	78.7 µin	2 µm	Through Hole	78.7 µin	2 µm	Push-Pull	0.126 "	3.2 mm	11.81 mm	0.465 in	5	Polybutylene Terephthalate (PBT)	0.228 in	5.8 mm	Unshrouded	0.1 "	2.54 mm	Square	Copper Alloy	Male Pin	Green	Header Breakaway	Tin	UL94 V-0	Board to Board Cable	1	105 ░C	-65 ░C	Solder	5 A	All
TE Connectivity AMP Connectors 826936-8	78.7 µin	2 µm	Through Hole	78.7 µin	2 µm	Push-Pull	0.126 "	3.2 mm	11.81 mm	0.465 in	8	Polybutylene Terephthalate (PBT)	0.228 in	5.8 mm	Unshrouded	0.1 "	2.54 mm	Square	Copper Alloy	Male Pin	Green	Header Breakaway	Tin	UL94 V-0	Board to Board Cable	1	105 ░C	-65 ░C	Solder	5 A	All
TE Connectivity AMP Connectors 826936-7	78.7 µin	2 µm	Through Hole	78.7 µin	2 µm	Push-Pull	0.126 "	3.2 mm	11.81 mm	0.465 in	7	Polybutylene Terephthalate (PBT)	0.228 in	5.8 mm	Unshrouded	0.1 "	2.54 mm	Square	Copper Alloy	Male Pin	Green	Header Breakaway	Tin	UL94 V-0	Board to Board Cable	1	105 ░C	-65 ░C	Solder	5 A	All
