22759/33 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

HOOK-UP DL STRND 26AWG GRAY

Part	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Grade	Voltage	Jacket (Insulation) Material	Qualification	Conductor Material	Wire Gauge	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Spool Size	Spool Size	Conductor Strand [custom]	Conductor Strand [custom]	Length	Conductor Strand [custom]	Conductor Strand [custom]
TE Connectivity Raychem Cable Protection 22759/33-26-8	-65 ░C	200 °C	Gray	Military	600 V	Ethylene Tetrafluoroethylene (ETFE)	MIL-C-27500 MIL-W-81044	Copper Silver Coated	26 AWG	1 ft	300 mm	0.032 in	0.81 mm	19 38	Hook-Up Dual Wall
TE Connectivity Raychem Cable Protection 22759/33-26-58	-65 ░C	200 °C	Green Gray Stripe	Military	600 V	Ethylene Tetrafluoroethylene (ETFE) Irradiated	MIL-C-27500 MIL-W-22759	Copper Silver Coated	26 AWG			0.032 in	0.81 mm	19 38	Hook-Up	0.005 in	0.13 mm
TE Connectivity Raychem Cable Protection 22759/33-26-7	-65 ░C	200 °C	Violet	Military	600 V	Ethylene Tetrafluoroethylene (ETFE)	MIL-C-27500 MIL-W-81044	Copper Silver Coated	26 AWG	1 ft	300 mm	0.032 in	0.81 mm	19 38	Hook-Up Dual Wall

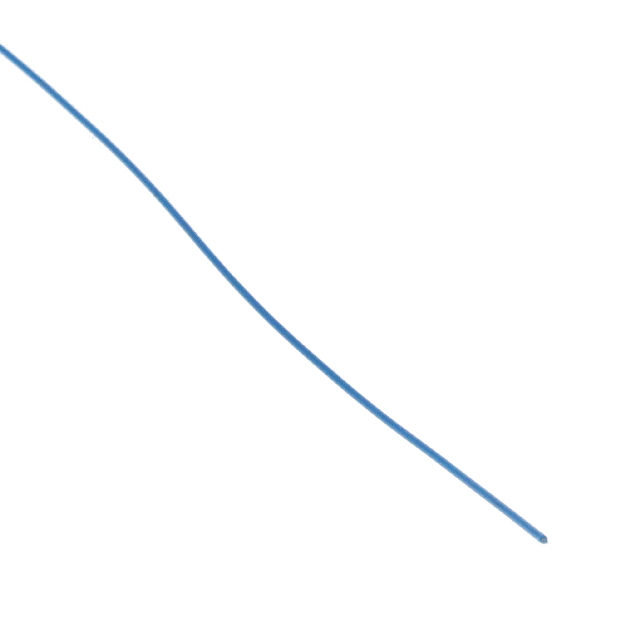

TE Connectivity Raychem Cable Protection 22759/33-30-6	-65 ░C	200 °C	Blue	Military	600 V	Ethylene Tetrafluoroethylene (ETFE) Irradiated	MIL-C-27500 MIL-W-22759	Copper Alloy Silver Coated	30 AWG	1 ft 5 '	1.52 m 15.24 m 300 mm	0.024 in	0.61 mm		Hook-Up	0.005 in	0.13 mm	7.62 m 30.5 m 152.4 m	25 ft 50 ft 100 ft 500 '	1524 m	5000 '	38 AWG	7	Enter Number of Feet in Order Quantity
TE Connectivity Raychem Cable Protection 22759/33-28-6	-65 ░C	200 °C	Blue	Military	600 V	Ethylene Tetrafluoroethylene (ETFE) Irradiated	MIL-C-27500 MIL-W-22759	Copper Silver Coated	28 AWG			0.027 in	0.69 mm		Hook-Up	0.005 in	0.13 mm								36 AWG	7
TE Connectivity Raychem Cable Protection 22759/33-30-5	-65 ░C	200 °C	Green	Military	600 V	Ethylene Tetrafluoroethylene (ETFE)	MIL-C-27500 MIL-W-81044	Copper Silver Coated	30 AWG	1 ft	300 mm	0.024 in	0.61 mm		Hook-Up Dual Wall							38 AWG	7
